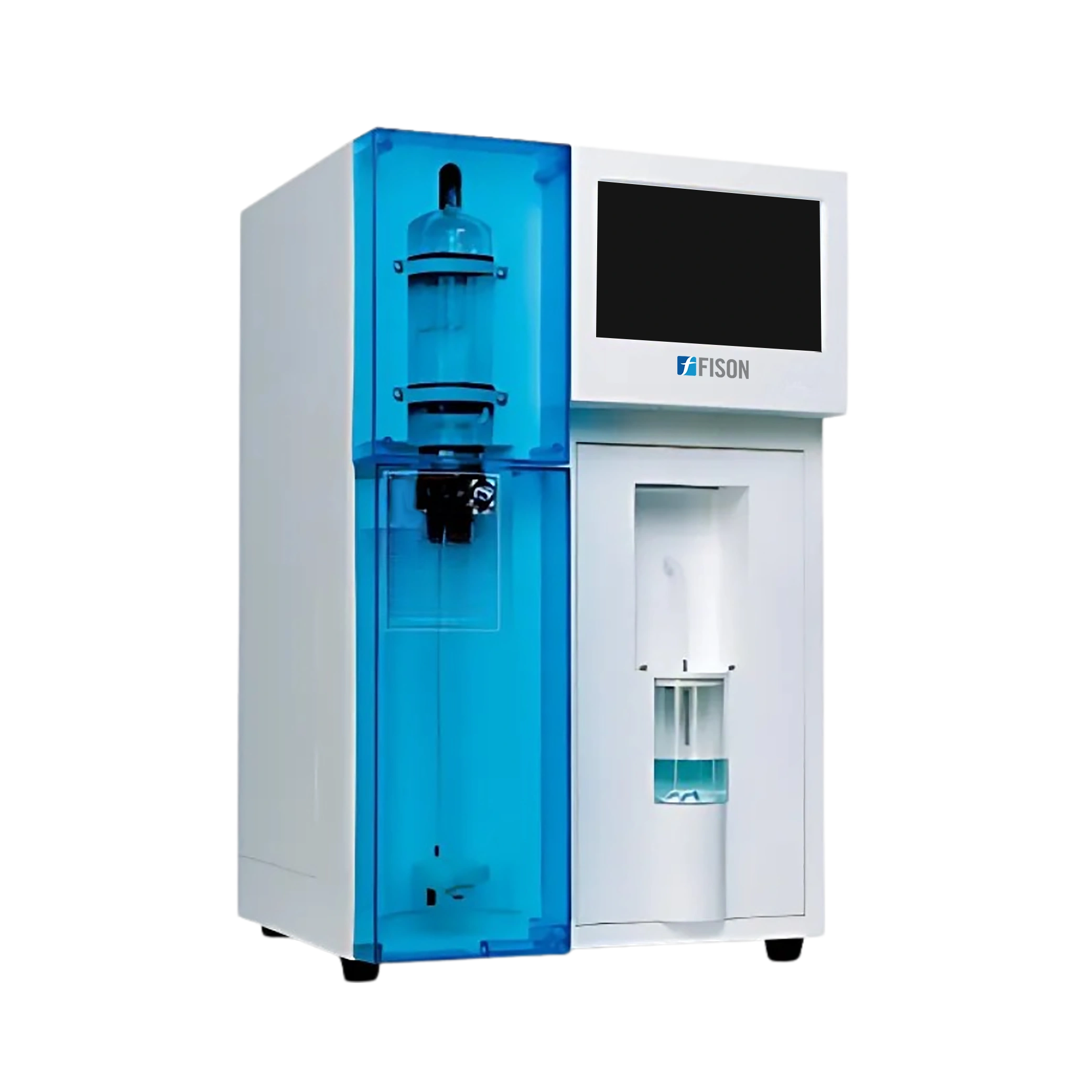

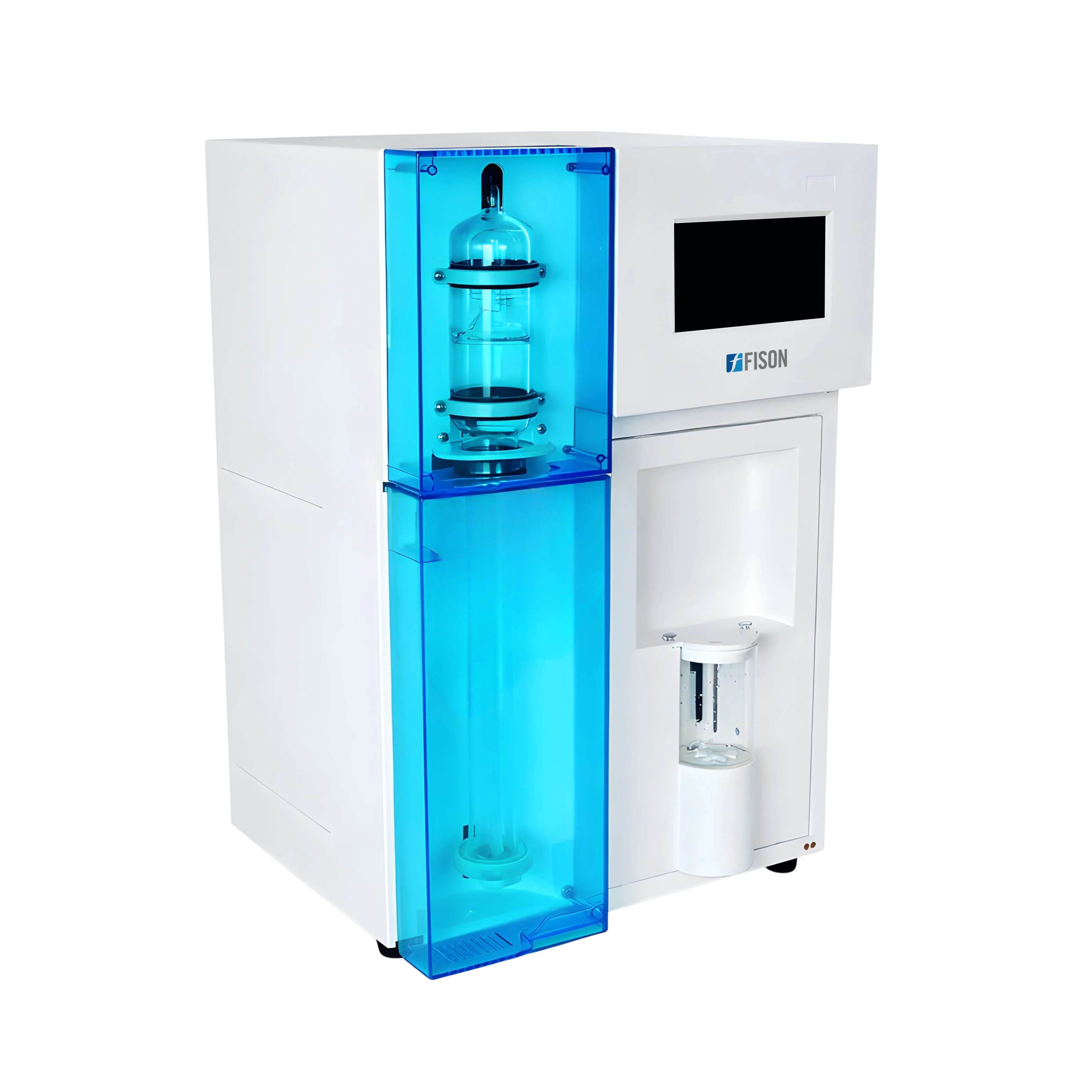

Automatic Kjeldahl Analyzer FM-KA-B101
Automatic Kjeldahl Analyzer FM-KA-B101 supports a nitrogen analysis range of 0.1 to 240 milligrams, with a minimum titration volume of 0.2 microlitres and a precision of ≤0.5% RSD. It features RGB-sensor based titration with adjustable speed, auto protein calculation, and real-time data storage for up to 1 million sets. With a 7-inch touchscreen interface, stainless steel construction, and integrated safety alarms, it delivers accurate and traceable nitrogen/protein analysis across diverse sample matrices.
Specifications
| Analysis range | 0.1 to 240 mg N |
| Precision (RSD) | ≤ 0.5% |
| Recovery rate | 99 to 101% |
| Minimum titration volume | 0.2 μL/step |
| Titration speed | 0.05 to 1.0 mL/s arbitrary setting |
| Distillation time | 10 to 9990 free setting |
| Sample analysis time | 4 to 8 min (cooling water temperature 18°C) |
| Titrant concentration range | 0.01 to 5 mol/L |
| Titration cup volume | 300 mL |
| Touch screen | 7-inch color LCD touch screen |
| Data storage capacity | 1 million sets of data |
| Printer | 5.7 cm thermal automatic paper cutting printer |
| Safe alkali adding mode | 0 to 99 seconds |
| Automatic shutdown time | 60 minutes |
| Working voltage | AC 220V / 50Hz |
| Heating power | 2000 W |
| Host size | Length: 500 × Width: 460 × Height: 710 mm |
Features
- RGB sensor ensures precise endpoints
- User access control with data logs
- Manual/auto waste discharge options
- Instant printing via built-in printer
- Auto-cleaning reduces maintenance
- Space-saving compact design
Frequently Asked Question
1: How does the RGB titration system improve endpoint accuracy in complex matrices?
The Automatic Kjeldahl Analyzer FM-KA-B101 uses coaxial R/G/B detection to auto-adjust for color shifts, reducing false endpoints in turbid, pigmented, or high-protein samples.
2: What role does titration resolution (0.2 µL/step) play in result precision?
The FM-KA-B101 delivers ultra-fine reagent dosing, essential for precise endpoint control in low-nitrogen or high-accuracy applications.
3: How does this analyzer support traceability in GLP-compliant environments?
The FM-KA-B101 ensures compliance through user-level access control, electronic logs, and secure internal data storage aligned with ISO/GLP standards.
4: In what conditions is adjustable titration speed (0.05 to 1.0 mL/s) functionally useful?
The FM-KA-B101 allows speed tuning—slower for reactive/foaming samples, faster for high-throughput workflows, balancing precision and efficiency.
5: What mechanisms ensure stable performance in high-throughput operations?
Equipped with integrated cooling, safety alarms, and auto shutdown, the FM-KA-B101 maintains consistent performance during long, unattended operation cycles.
