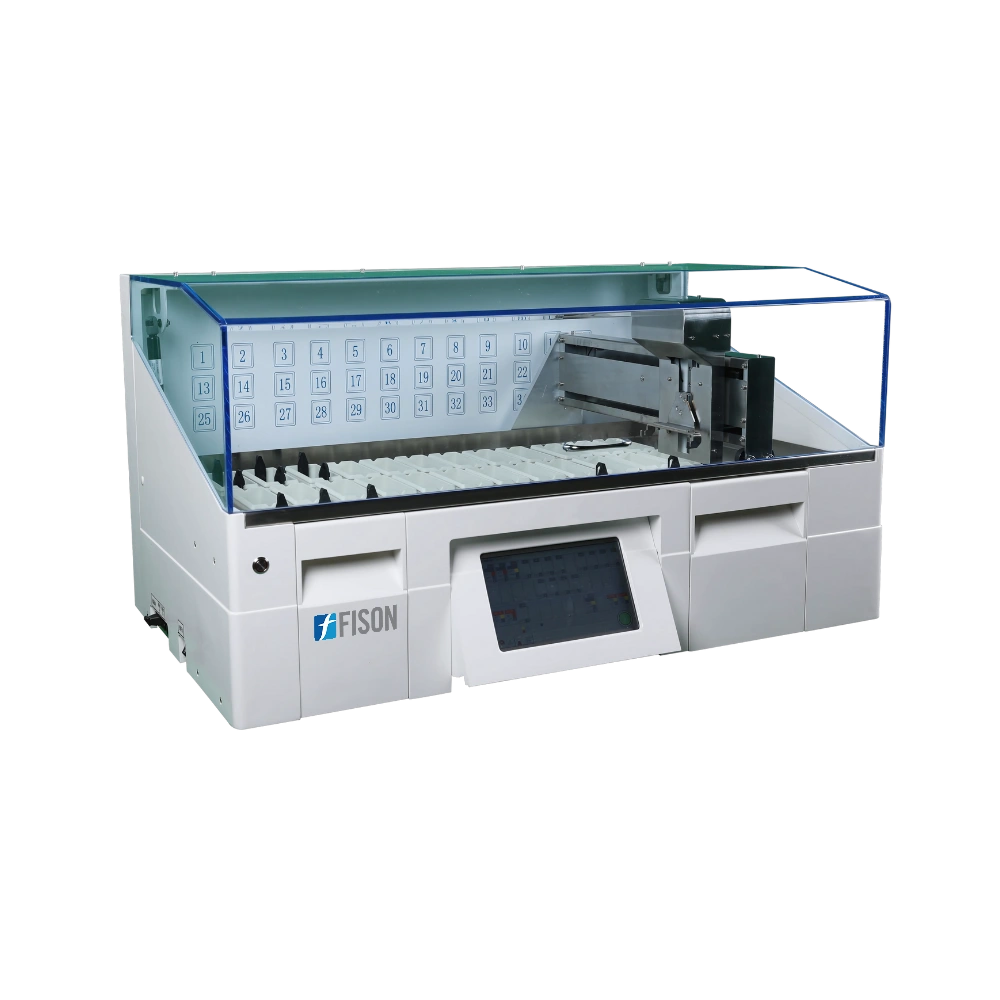

Automatic Tissue Slide Stainer FM-ATS-A104
Automatic Tissue Slide Stainer FM-ATS-A104 is a modular stainer designed with a 500ml reagent tank volume. It has 36 stations with 10 simultaneous staining programs for consistent staining results. Its modular electrical design supports conventional and special staining processes independently or simultaneously. Our stainer automatically adjusts processing when multiple frames run simultaneously. It is ideal for histopathology and cytopathology labs for standardized staining of clinical and cell samples.
$18,865.00
Specifications
| Reagent Tank Volume | 500ml |
| Slide Capacity per Frame | 30 glass slides |
| Total Stations | 36 |
| Reagent Sites | 26 |
| Stored Programs | 10 sets |
| Washing Sites | 5 |
| Upload Sites | 2 |
| Max Concurrent Staining Programs | 10 different programs |
| Download Sites | 3 |
| Max Throughput | Up to 400 slides/hour |
| Touch Screen | 10.4 inch colour screen, graphical UI |
| Power Consumption | 200W |
| Power Supply | 220 VAC ±10%, 50/60 Hz |
| Dimensions(L×W×H) | 1050 × 600 × 600 mm |
| Package Dimensions(L×W×H) | 1140 × 715 × 850 mm |
| Net Weight | 125kg |
| Gross Weight | 150kg |
Features
- Real-Time Visualization
- Multi-Program Capability
- High Capacity and Throughput
- Fast Robotic Arm
- Flexible Rack Loading
- Efficient Reagent Use
Applications
- Automatic Tissue Slide Stainer FM-ATS-A104 is designed for high-throughput, multi-protocol slide staining in histopathology, biomedical research, and clinical diagnostics. It supports simultaneous operation of multiple staining programs with intelligent robotic arm control and touchscreen interface. This system ensures reproducible, efficient, and automated dyeing workflows with flexible configuration for regulated laboratory environments.
Frequently Asked Question
1: What is the main function of the Automatic Tissue Slide Stainer FM-ATS-A104?
The Automatic Tissue Slide Stainer FM-ATS-A104 automates the staining of microscope slides for histological analysis. It supports both conventional and special staining simultaneously, improving lab productivity and reproducibility. It is ideal for medium- to high-throughput clinical and research laboratories.
2: How many slides can the Automatic Tissue Slide Stainer FM-ATS-A104 process per hour?
Automatic Tissue Slide Stainer FM-ATS-A104 can handle up to 400 slides per hour across multiple staining racks. Its mechanical arm enables rapid movement and optimized dyeing cycles for fast results. This makes it suitable for high-demand staining operations.
3: How many programs can be stored in the Automatic Tissue Slide Stainer FM-ATS-A104?
Automatic Tissue Slide Stainer FM-ATS-A104 can store up to 10 staining programs with real-time execution. Each program can be selected and visualized by colour code on a 10.4-inch touch screen. It offers intuitive control for a customized and efficient workflow.
4: What is the reagent capacity and configuration of the Automatic Tissue Slide Stainer FM-ATS-A104?
Automatic Tissue Slide Stainer FM-ATS-A104 has 26 reagent sites (500 mL each) and 5 washing stations. Two sites can be set as empty positions for flexible protocol design. This layout supports optimized performance for complex multi-step staining.
5: Can multiple staining processes run simultaneously Automatic Tissue Slide Stainer FM-ATS-A104?
Yes, Automatic Tissue Slide Stainer FM-ATS-A104 supports up to 10 different processes running concurrently. This is enabled by its modular design, multi-rack handling, and independent program control. It increases throughput while maintaining process separation.
6: What user interface does the Automatic Tissue Slide Stainer FM-ATS-A104 offer?
The Automatic Tissue Slide Stainer FM-ATS-A104 features a 10.4-inch colour touch screen with a graphical display. Users can monitor dyeing progress in real-time and adjust parameters during operation. This improves user interaction and reduces training requirements.
7: How does the Automatic Tissue Slide Stainer FM-ATS-A104 manage slide loading and unloading?
The Automatic Tissue Slide Stainer FM-ATS-A104 uses a drawer-type mechanism for loading/unloading racks. It supports 2 upload stations and 3 download stations, allowing a continuous workflow. This minimizes downtime and streamlines handling.
