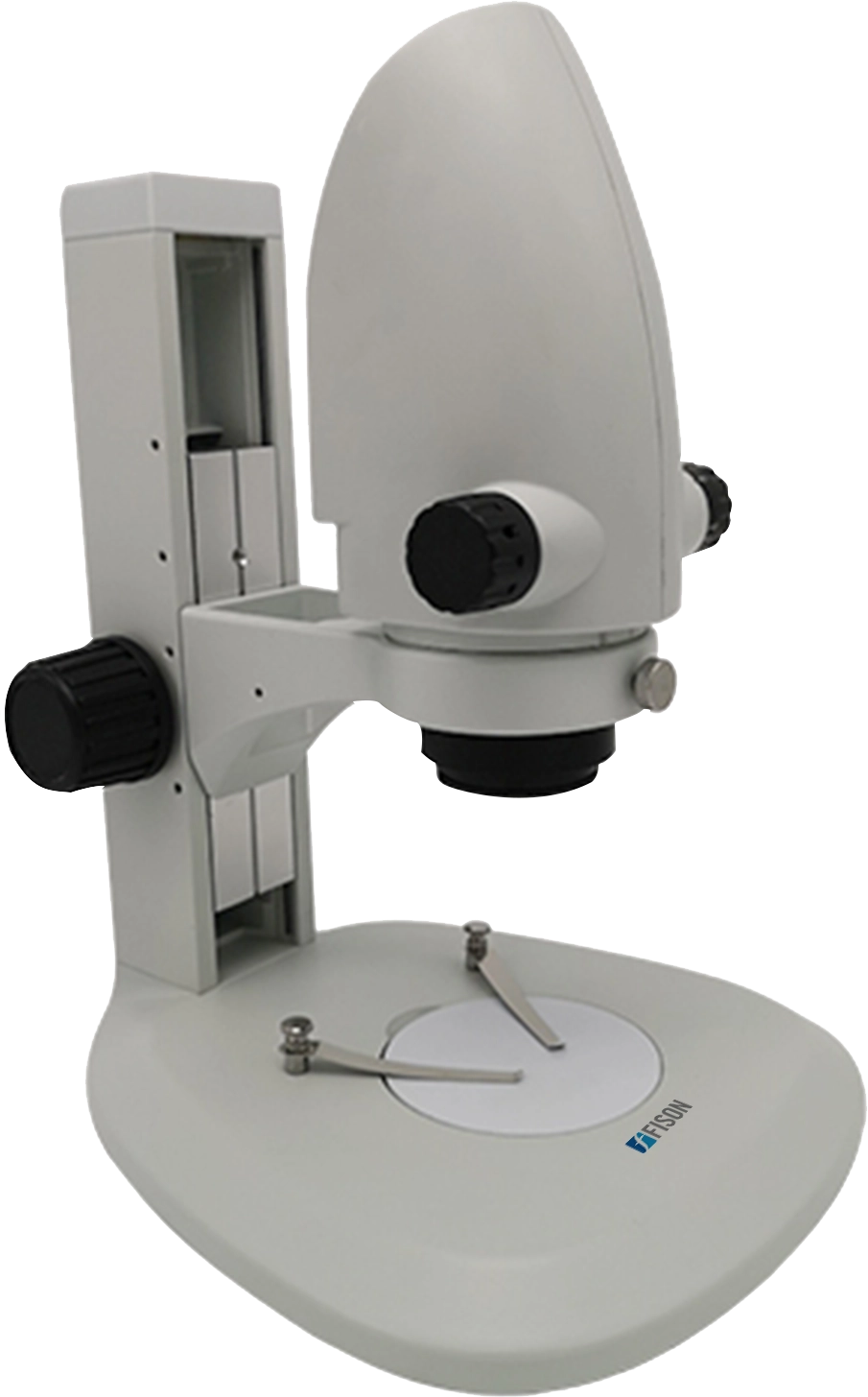

Stereo Microscope FM-SM-A402
Stereo Microscope FM-SM-A402 is compact and sleek, integrated zoom optical module with high definition camera. It offers high definition 0.7 X to 4.5 X parallel continue zoom lens with J2 track stand and 1/3 inches COMS Sensor. It concentrates all functions together and makes it ideal for small installation spaces in modern equipment. The independent body design can be equipped with various bases according to customer's preference.
Specifications
| Body | Built-in camera with HDR image, 1/3 inches COMS, 2.0 MP; HDMI output; support for SD card |
| Objective | 0.7 x to 4.5 x |
| Sensor | 1/3 inches COMS Sensor |
| Resolution | 1920 × 1080 P@60FS (2.0 MP) |
| Output | HDMI, USB, SD Card |
| Function | Real-time inspection, Video recording and photography, Measurement, Storage, Data output |
| Stand | J2 track stand |
| Illumination | Fluorescent lamp, LED ring light |
| Power supply | Input 100 V to 240 V, AC 50/60Hz; Output DC12V/2A |
| Weight | 6.5 kg |
Features
- Fluorescent lamp and LED ring light Illumination
- High definition 0.7 X to 4.5 X parallel continue zoom lens
- Equipped with real-time inspection, Video recording and photography, Measurement, Storage, Data output
- Designed with J2 track stand and HDMI, USB and SD Card
- Built-in camera with HDR image and 1/3 inches COMS sensor
Applications
- Stereo Microscope is used Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields
