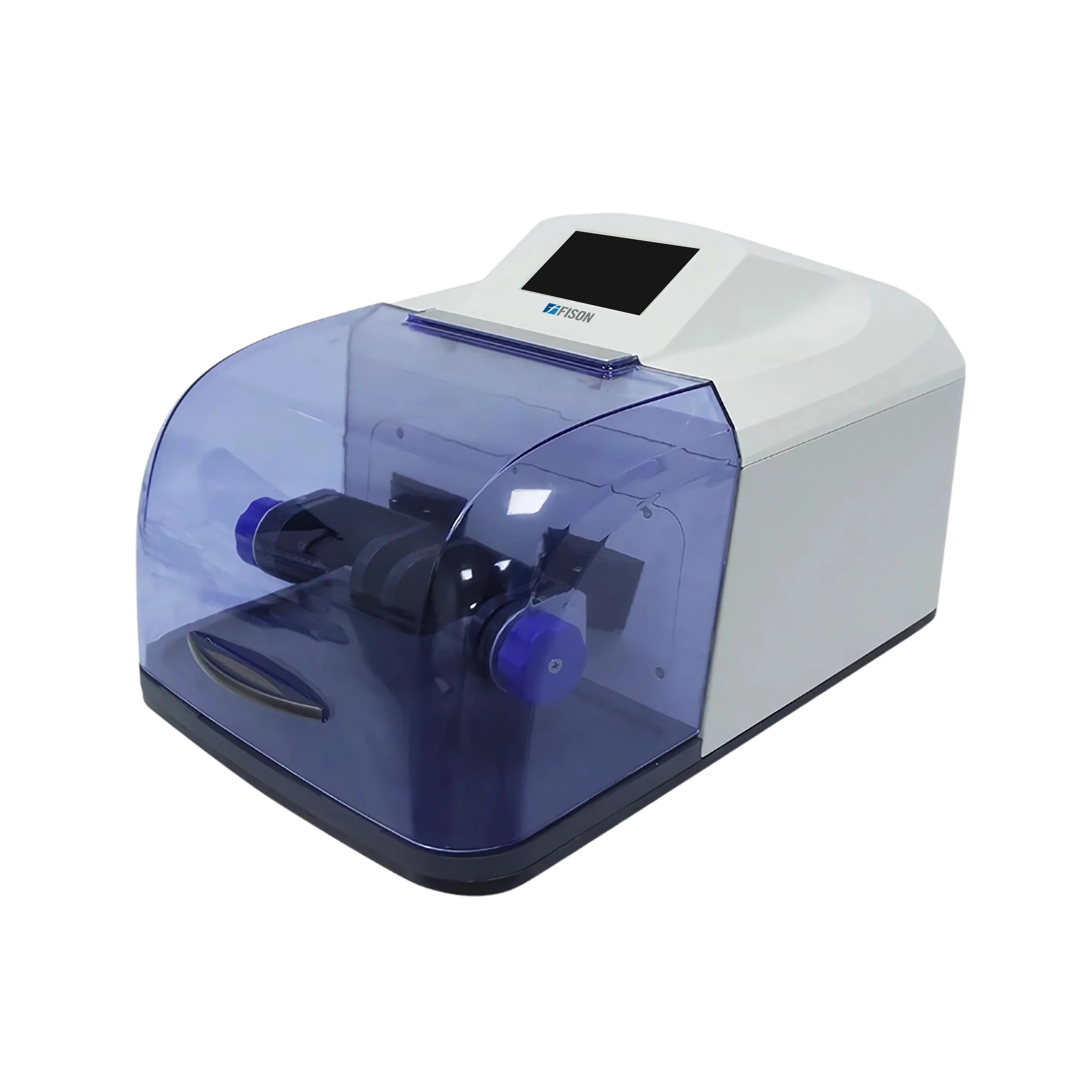

Ball Mill Grinder FM-BMG-A101
Ball Mill Grinder FM-BMG-A101 offers a speed range of 180 to 2100 rpm, enabling efficient and versatile processing for the mixing and homogenization of diverse sample types. It supports a maximum sample capacity of 96 × 2 ml, accommodating various batch sizes for flexible laboratory use. It features a dual-position system that allows simultaneous processing of two batches. It allows for both dry and wet grinding methods, providing flexible sample preparation options. It features a touchscreen control with an intuitive interface for easy operation.
Specifications
| Speed Range | 180 rpm to 2100 rpm |
| Sample Capacity | 96x2ml, 64x2ml, 48x2ml, 16x2ml, 10x5ml |
| Acceleration | 2 seconds |
| Deceleration | 2 seconds |
| Grinding Method | Dry or Wet |
| Feed Size | Based on tube size |
| Final Fineness | ~5 µm |
| Custom Grinding Tubes | 2x15ml, 2x25ml, 2x35ml, 2x50ml |
| Standard Tubes | 8x50ml |
| Tube Adapter Materials | POM, Nylon, Aluminum Alloy |
| Grinding Tube Materials | Teflon, Stainless Steel |
| Grinding Bead Diameter | 0.1 to 30 mm |
| Power Consumption | 450 W |
| Power Supply | AC 100 to 120V / 200 to 240V, 50/60 Hz |
| Dimensions (W×D×H) | 530 × 350 × 311 mm |
| Weight | 40 kg |
Features
- Powerful performance
- High-speed vibration
- Advanced motor with superior bearing
- Safe operation
- Low maintenance
- Robust construction
Applications
- Ball Mill Grinder FM-BMG-A101 is widely used for grinding and homogenizing materials in various applications, including pharmaceuticals, chemicals, minerals, and material research.
Optional Adapter Selection
Name Tube Type Max. Tubes (Qty) Sample max. size (mm) Sample Volume per Tube (ml) Grinding Beads Type Beads Qty per Tube 8x2ml Tube Adapter Tube adapter 8 (1 adapter) / 16 (2 adapters) 1 0.2 to 0.5 ml 3mm 2-3 24x2ml Tube Adapter Tube adapter 24 (1 adapter) / 48 (2 adapters) 1 0.2 to 0.5 ml 3mm 2-3 32x2ml Tube Adapter Tube adapter 32 (1 adapter) / 64 (2 adapters) 1 0.2 to 0.5 ml 3mm 2-3 48x2ml Tube Adapter Tube adapter 48 (1 adapter) / 96 (2 adapters) 1 0.2 to 0.5 ml 3mm 2-3 5x5ml Tube Adapter Tube adapter 5 (1 adapter) / 10 (2 adapters) 2 0.5 to 2.0 ml 5mm 2-3 4x50ml Tube Adapter Tube adapter 4 (1 adapter) / 8 (2 adapters) 8 8.0 to 20.0 ml 5mm 10 15ml Grinding Tube Stainless steel 2 5 mm 2.0 to 4.0 ml 10mm 1 25ml Grinding Tube Stainless steel 2 6 mm 4.0 to 10.0 ml 15mm 1 35ml Grinding Tube Stainless steel 2 6 mm 6.0 to 15.0 ml 15mm or 20mm 1 50ml Grinding Tube Stainless steel 2 8 mm 8.0 to 20.0 ml 20mm 1
