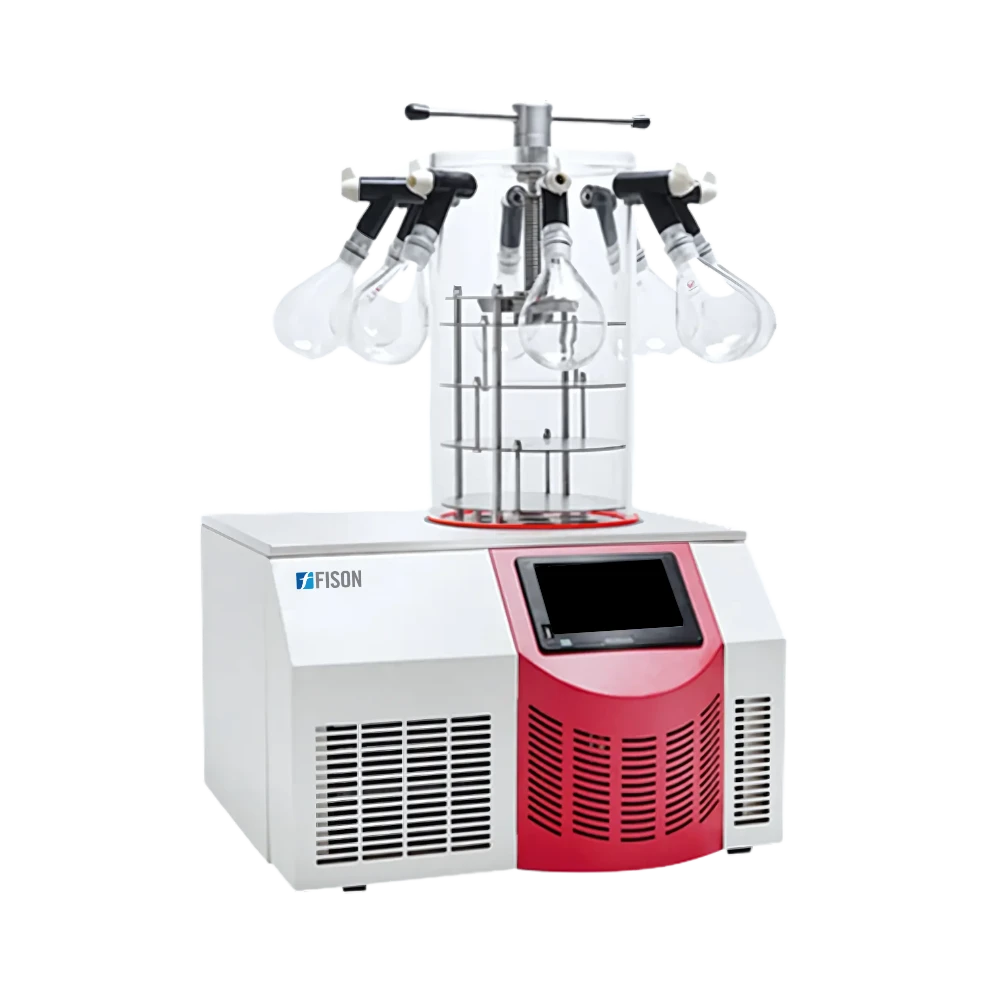

Benchtop Freeze Dryer FM-BFD-A103
Benchtop Freeze Dryer FM-BFD-A103 is equipped with an 8-port manifold and stoppering chamber and enables versatile sample handling. It supports an ice condenser capacity of 3 kg/24 h and a condenser volume of 0.9 L. It offers a final condenser temperature of -55 °C and maintains vacuum levels below 10 Pa for efficient sublimation. The transparent acrylic drying chamber ensures process visibility. Ideal for pharmaceutical, research, and biological sample preservation.
Specifications
| Freeze Drying Area | 0.09 m² |
| Freeze Drying Time | 24 h |
| Final Condenser Temperature | -55 °C |
| Ice Condenser Capacity | 3 kg/24 h |
| Condenser Volume | 9 L |
| Number of shelves | 3 |
| Material Loading Capacity/Shelf | 300 ml |
| Material Loading Capacity | 900 ml |
| Ultimate Vacuum | <10 Pa |
| Vacuum Pump Speed | 2L/S |
| USB Interface | Yes |
| Manifold Number | 8 pcs |
| Drying Chamber | Standard |
| Drying Chamber Material | Transparent acrylic |
| Control System | Microprocessor, touch screen |
| Penicillin Bottle Capacity Ø22 | 195 pcs |
| Penicillin Bottle Capacity Ø16 | 360 pcs |
| Penicillin Bottle Capacity Ø12 | 690 pcs |
| Power Supply | 220V/50Hz,60Hz |
| Dimension (W×D×H) | 582 ×541×374/684 mm |
Features
- Dual function chamber
- Enhanced vial sealing
- Eight-port manifold
- Uniform shelf drying
- Penicillin bottle compatibility
- Flexible sample capacity
Applications
- Benchtop Freeze Dryer FM-BFD-A103 is ideal for pharmaceutical, biological, and chemical laboratories requiring precise freeze-drying of sensitive materials. It is widely used for vial stoppering, sample preservation, freeze-drying vaccines, enzymes, and research reagents with multi-port manifold efficiency.
