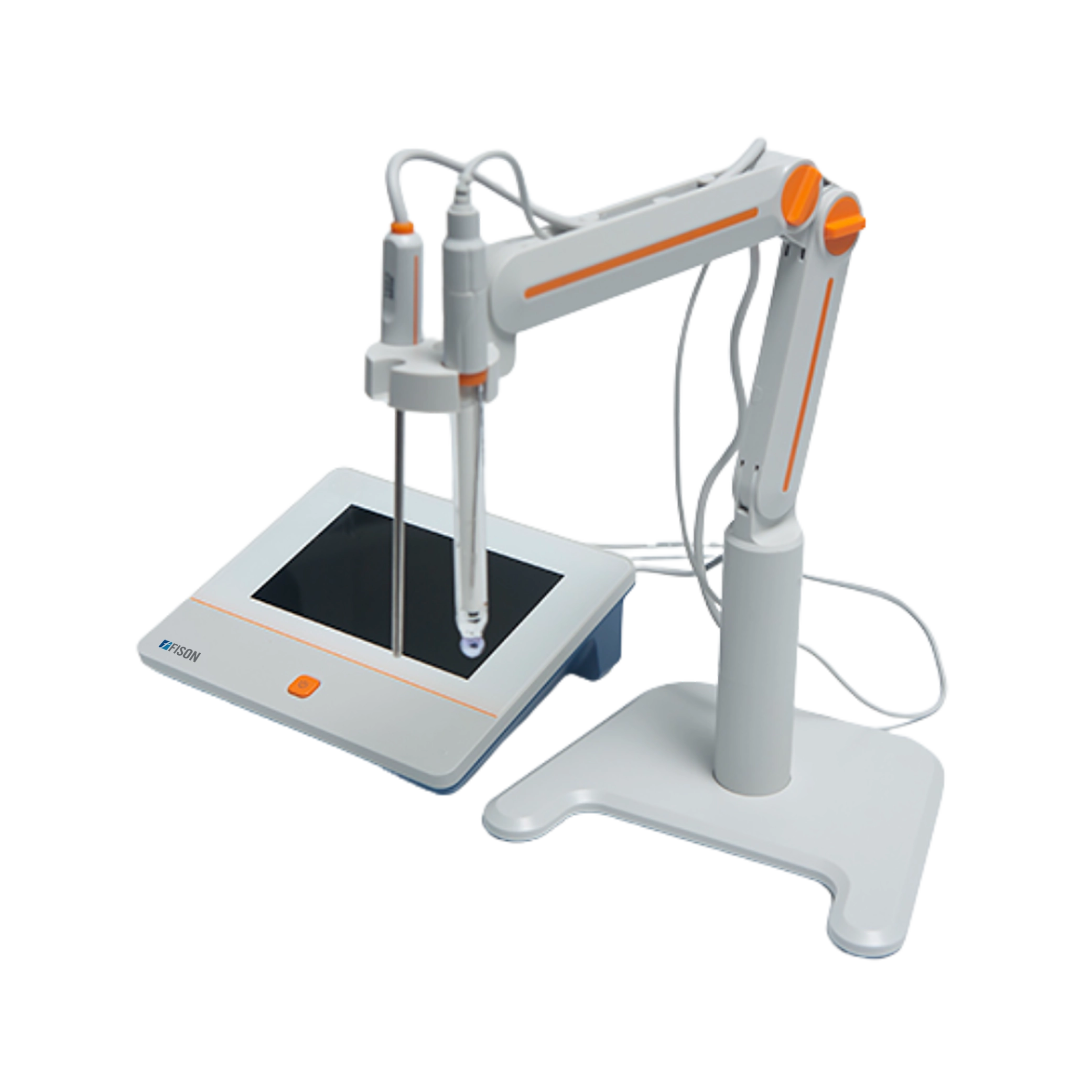

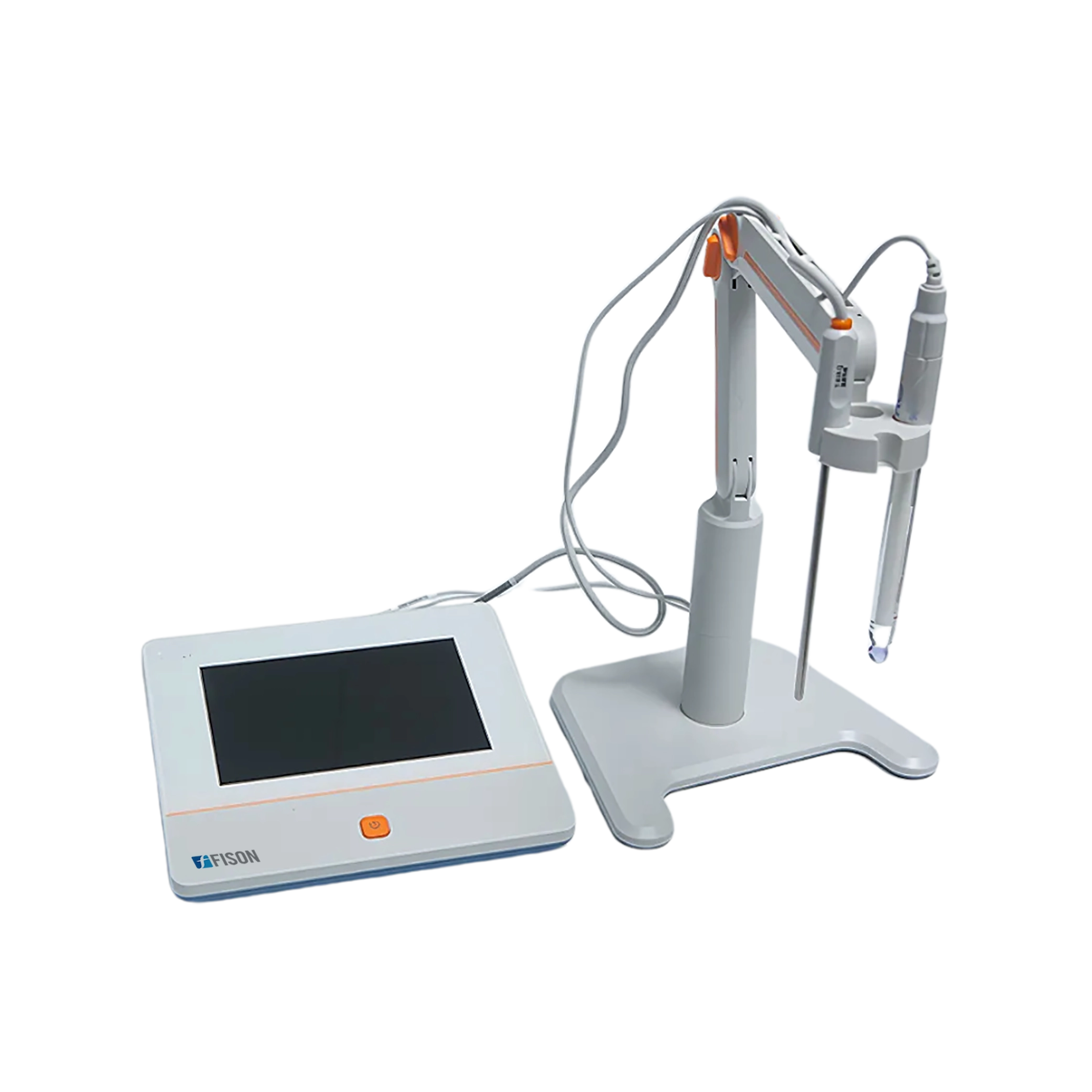

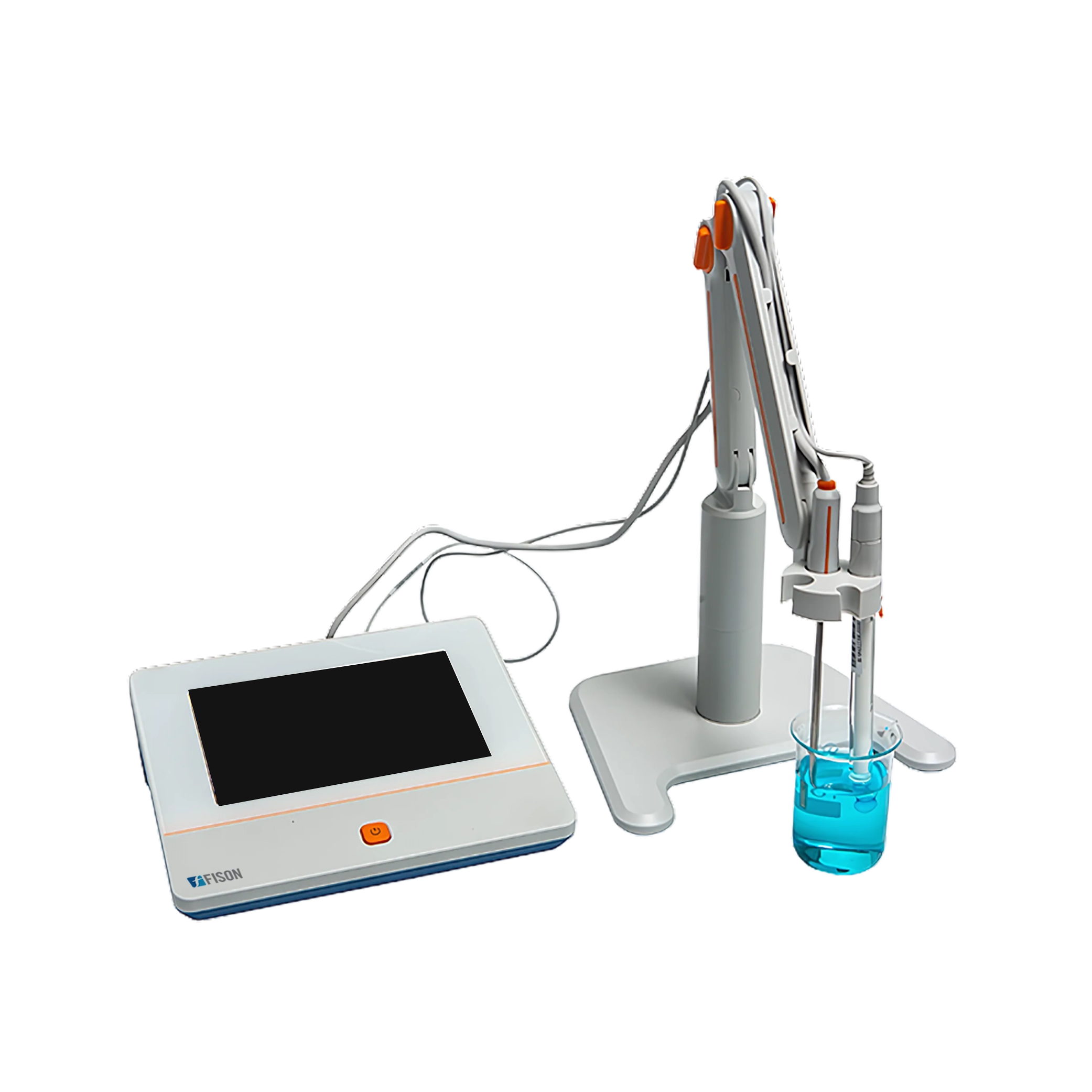

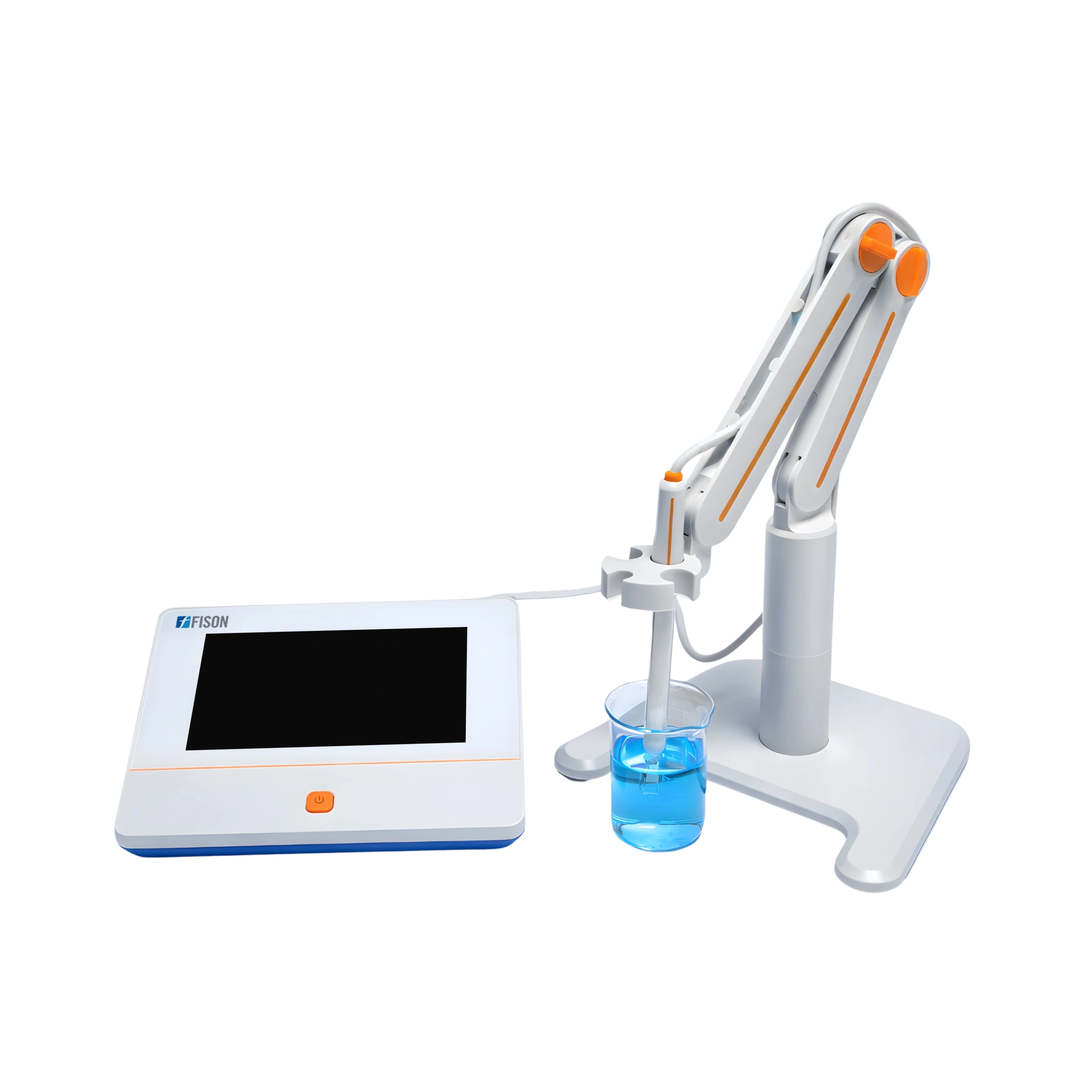

Benchtop pH Meter FM-BPM-A101 offers a wide pH range from -2.00 to 20.00 pH for versatile laboratory applications. It provides high measurement precision with selectable resolutions of 0.1, 0.01, and 0.001 pH. It features automatic electrode diagnosis with slope and offset display for reliable performance. It comes with a 7-inch color LCD display that ensures clear visibility and smooth operation. It supports easy data management with a user-friendly interface for enhanced laboratory efficiency.
$1,375.00
| pH Range | -2.00 to 20.00 pH |
| pH Resolution | 0.1, 0.01, 0.001 pH |
| pH Accuracy | ±0.002 pH |
| Calibration Points | Up to 6 |
| Standard Recognition | NIST, GB, DIN, USA, MERK, JIS buffers |
| mV Range | -2000 to 2000 mV |
| mV Resolution | 0.1, 0.01 mV |
| mV Accuracy | ±0.03% FS |
| Calibration Point (mV) | 1 custom point |
| Temperature Range | -10 to 135 ℃ (14 to 275 ℉) |
| Temperature Unit | ℃, °F |
| Temperature Resolution | 0.1 |
| Temperature Accuracy | ±0.1 |
| Reading Mode | Auto Read, Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked |
| Temperature Compensation | ATC, MTC |
| Data Storage | 1000 groups |
| pH Electrode | BNC (Q9) |
| Temperature Probe | 4-pin aviation connectors |
| Backlight | Yes |
| Auto Shutdown | 1 to 60 min, off |
| Display | LCD |

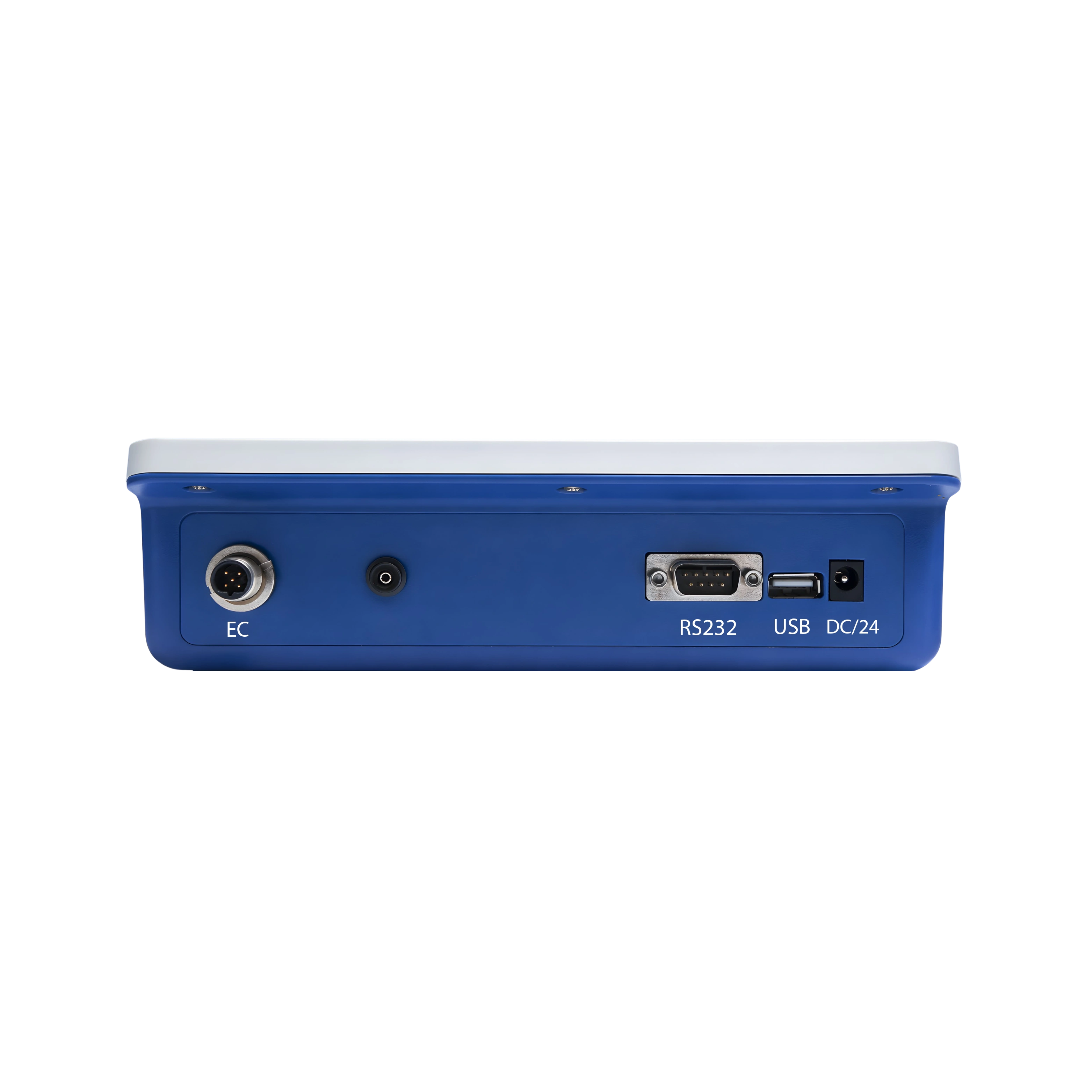

| Interface | USB and RS232 |
| IP Rating | IP54 |
| Power Supply | AC Adapter, 100 to 240 V AC input, DC 24V output |
| Dimension (L × W × H) | 242 × 195 × 68 mm |
| Packing Dimension 1 (L × W × H) | 350 × 280 × 220 mm |
| Packing Dimension 2 (L × W × H) | 350 × 280 × 220 mm |
| Gross Weight | 6 Kg |
| Net Weight | 0.9 kg |
| Accessories | Quantity |
| PH Probe | 1 |
| Electrode Holder | 1 |
| NIST PH Buffer ( PH 4.01, PH 7.00, PH 10.01 ) | Each bottle ( 50ml *3 ) |
1: How does the Benchtop pH Meter FM-BPM-A101 ensure precise measurement across different pH ranges?
The Benchtop pH Meter FM-BPM-A101 offers a wide pH range from -2.00 to 20.00 with selectable resolutions of 0.1, 0.01, and 0.001 pH. With an accuracy of ±0.002 pH and up to 6 calibration points, it guarantees highly reliable readings for sensitive applications.
2: How does the Benchtop pH Meter FM-BPM-A101 handle mV measurements in addition to pH testing?
The Benchtop pH Meter FM-BPM-A101 measures a wide mV range from -2000 to 2000 mV with resolutions of 0.1 and 0.01 mV. It maintains an accuracy of ±0.03% FS and supports one custom calibration point, making it suitable for advanced redox potential analysis.
3: In what way does the Benchtop pH Meter FM-BPM-A101 enhance efficiency during temperature-dependent experiments?
The Benchtop pH Meter FM-BPM-A101 covers a temperature range from -10 to 135 °C (14 to 275 °F). Its automatic compensation ensures accurate results in varying thermal conditions, making it highly suitable for biochemical and industrial research.
4: How does the Benchtop pH Meter FM-BPM-A101 improve laboratory workflow and data reliability?
The Benchtop pH Meter FM-BPM-A101 integrates automatic electrode diagnosis with slope and offset display. This feature, combined with a 7-inch LCD and user-friendly interface, streamlines calibration, reduces downtime, and ensures consistent data output.
