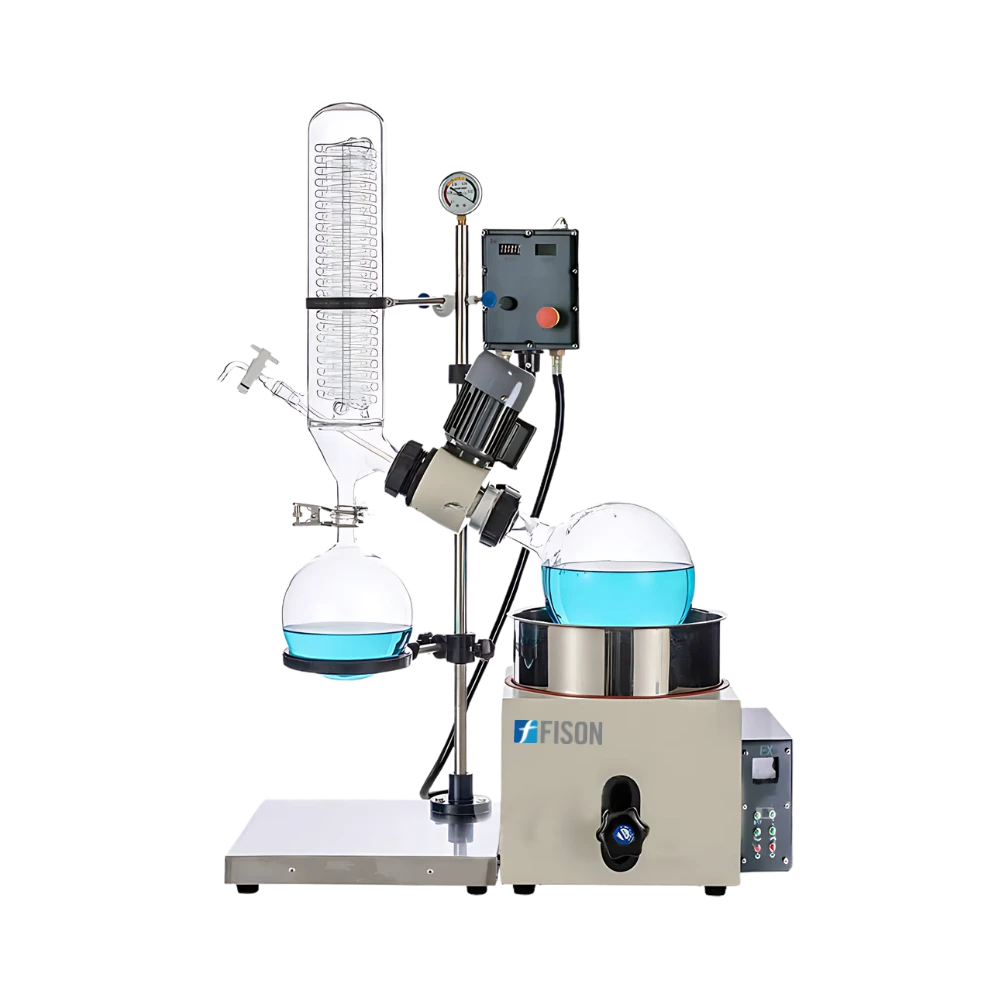

Benchtop Rotary Evaporator FM-BRE-C101 features a 1L evaporation flask for safe small-volume solvent processing in volatile environments. It supports a 0 to120 rpm rotation speed for consistent operation. It maintains a vacuum level of 0.098 MPa for efficient evaporation. Its explosion-proof design enhances safety during high-temperature or flammable applications and offers a digital temperature display for real-time monitoring.
$1,875.00
| Evaporating flask | Eggplant shaped 1 L |
| Receiving bottle | Round shaped 1 L |
| Rotation speed | 0 to 120 rpm |
| Bath volume | 6.6 L |
| Temperature range | RT to 180°C (oil bath) |
| Temp. control accuracy | ±1°C |
| Vacuum degree | 0.098 MPa |
| Lifting distance | 200 mm |
| Condensing area | 0.17 m² |
| Rotating motor power | 40 W |
| Heating power | 1200 W |
| Overall power | 1240 W |
| Power supply | 220 to 240V / 50Hz |
| Dimensions (L × B × H) | 750 × 360 × 1060 mm |
| Weight | 32 kg |
1: What makes Benchtop Rotary Evaporator FM-BRE-C101 suitable for flammable solvent evaporation?
Benchtop Rotary Evaporator FM-BRE-C101 explosion-proof construction and temperature safety limit enable safe operation with volatile chemicals.
2: Is the motor and wiring certified for explosion-proof use?
Yes, all electrical components are sealed and rated for explosion-proof environments.
3: Can this model be operated continuously in hazardous lab conditions?
Yes, Benchtop Rotary Evaporator FM-BRE-C101 is built for routine operation in high-risk chemical labs with proper ventilation.
4: Is external integration possible with chillers or vacuum controllers?
Yes, Benchtop Rotary Evaporator FM-BRE-C101 supports standard connections for external vacuum systems and cooling units.
Fison Benchtop Rotary Evaporator is equipped with advanced double fuses and high safety protection performance for efficient rotation and heating. It is constructed with high borosilicate glass for enhanced durability and thermal shock resistance. This unit comes with a fluoro rubber double seal to ensure a high vacuum. They feature an integrated condenser for efficient cooling. Our Benchtop Rotary Evaporator includes a double coil design for a high recovery rate.
