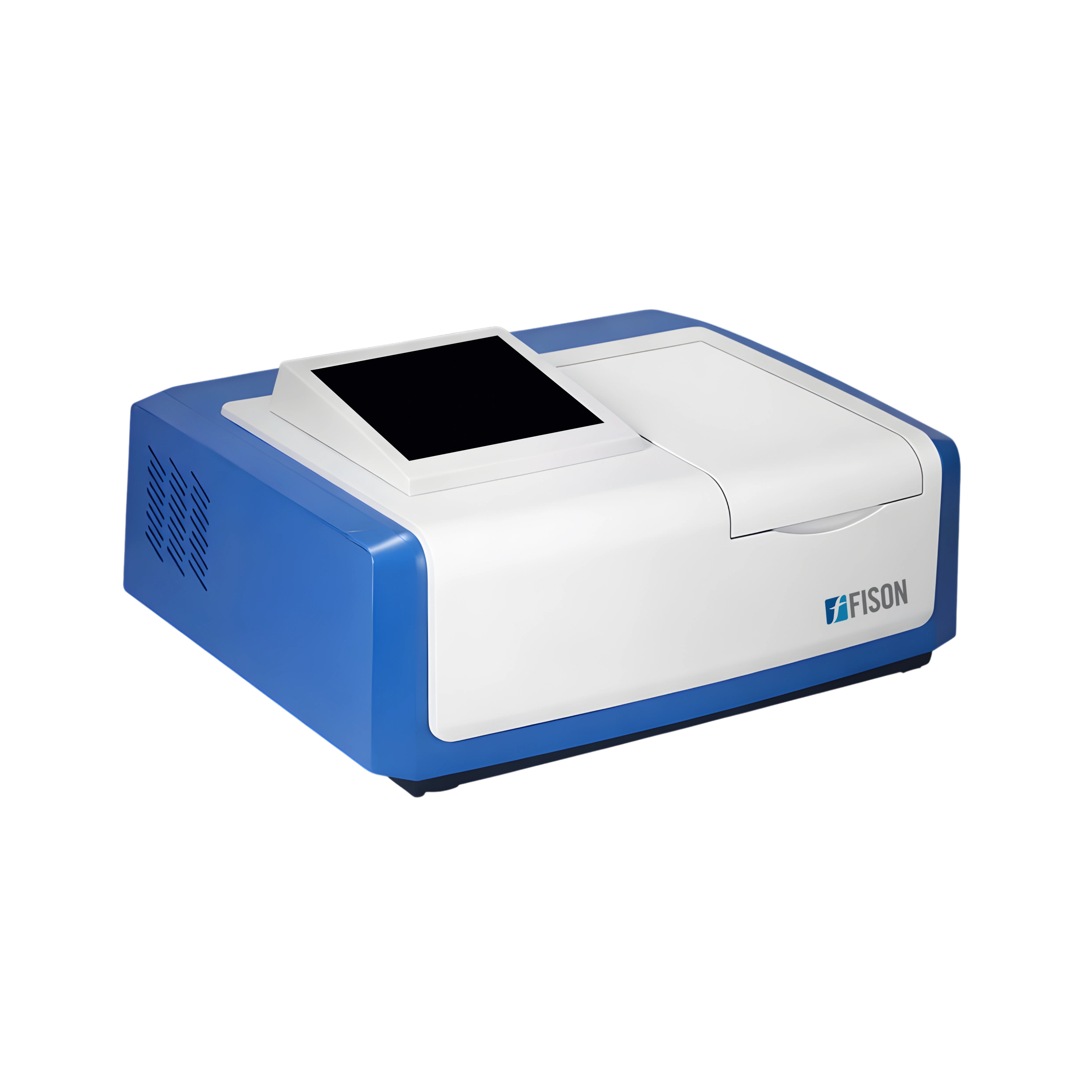

Fison Double Beam UV Visible Spectrophotometer FM-UVS-C100 features a wavelength range of 190 to 1100 nm, ±0.5 nm wavelength accuracy, and 1.8 nm spectrum bandwidth for detailed spectral measurements. This UV spectrometer with double-beam technology integrates a Czerny-Turner monochromator, 1200 lines/mm grating, and silicon photocell detector for stable absorbance analysis. The unit offers an automatic wavelength settings, full-spectrum scanning, peak/valley detection, and storage of test results and scanned images.
| Wavelength Range | 190 to 1100 nm |
| Wavelength Accuracy | ±0.5 nm |
| Wavelength Repeatability | ≤0.2 nm |
| Spectrum Bandwidth | 1.8 nm |
| Photometry | Double Beam |
| Photometric Range | 0.0 to 200.0%T0.301 to 4.000 A0.000 to 9999 C |
| Photometric Accuracy | ±0.3%T+0.002 Abs (0–0.5 A)±0.004 Abs (0.5–1 A) |
| Photometric Repeatability | ≤0.15%T 0.001 Abs (0–0.5 A)0.002 Abs (0.5–1 A) |
| Monochromator Type | Czerny-Turner |
| Focal Length | 160 mm |
| Grating | 1200 lines/mm |
| Detector | Silicon Photocell |
| Wavelength Setting | 8-inch color touch-screen |
| Scanning Speed | Fast-Medium-Slow |
| Stray Light | ≤0.03%T (at 220 nm NaI, 360 nm NaNO₂) |
| Baseline | ≤±0.002 A (200–1090 nm) |
| Noise | 100% (T) noise ≤0.15%T, 0% (T) noise ≤0.1%T |
| Drifting | ≤0.0009 Abs/30 min (250 nm and 500 nm after 2 h warm-up) |
| Power Consumption | 200W |
| Power Supply | AC 220V ±22V 50Hz ±1Hz, |
| Dimension (L×B×H) | 710 mm × 590 mm × 505 mm, 0.21 m³ |
| Weight | 36 kg |
Double Beam UV Visible Spectrophotometer FM-UVS-C100 is suitable for pharmaceutical analysis, biochemistry and molecular biology studies, environmental testing, food and beverage analysis, chemical research, and academic laboratory workflows.
Accessory | Quantity |
Glass cuvette 1cm | 4 pcs |
Quartz cuvette 1cm | 2 pcs |
Power cable | 1 |
Fuse | 2 pcs |
