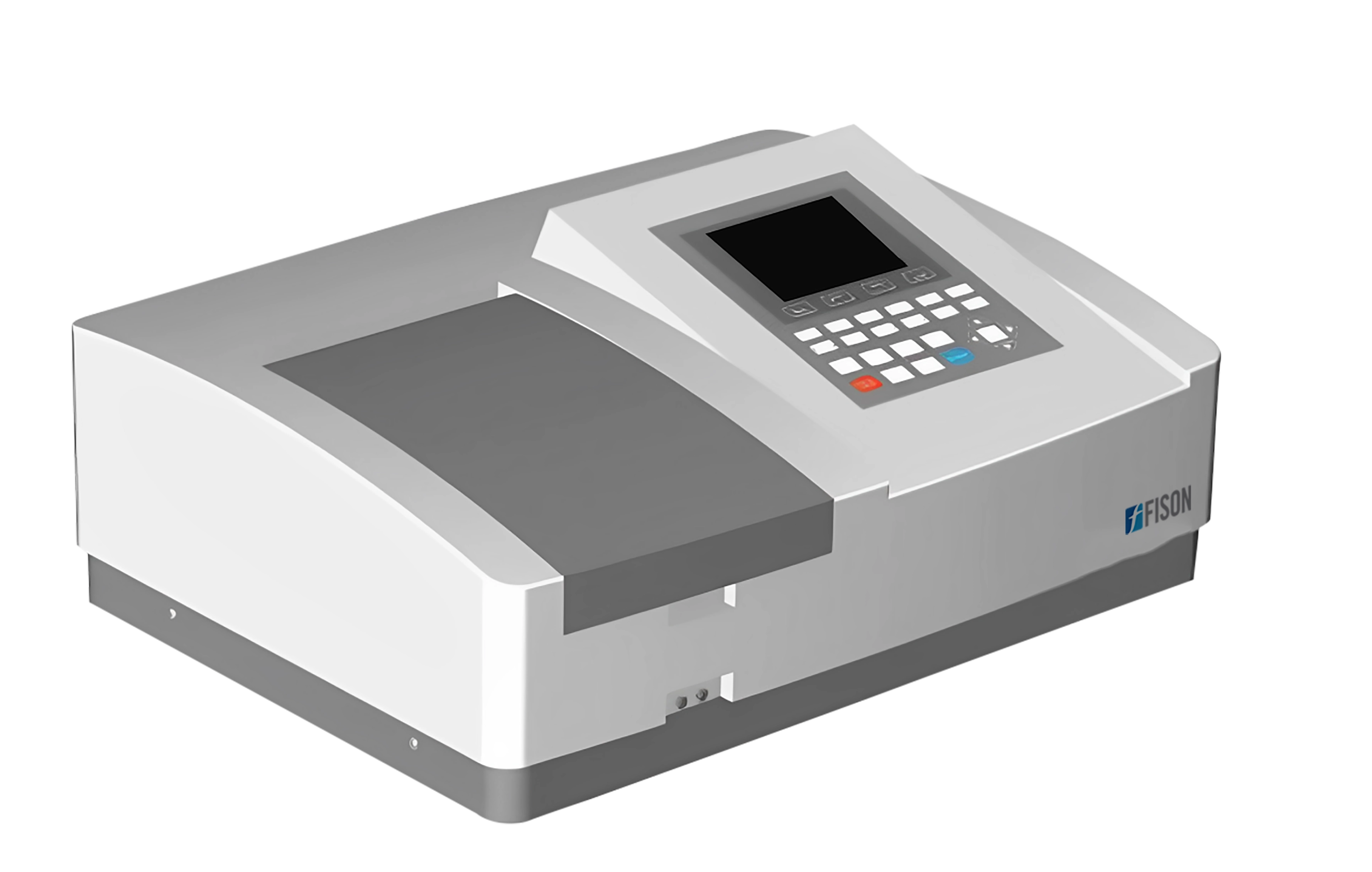

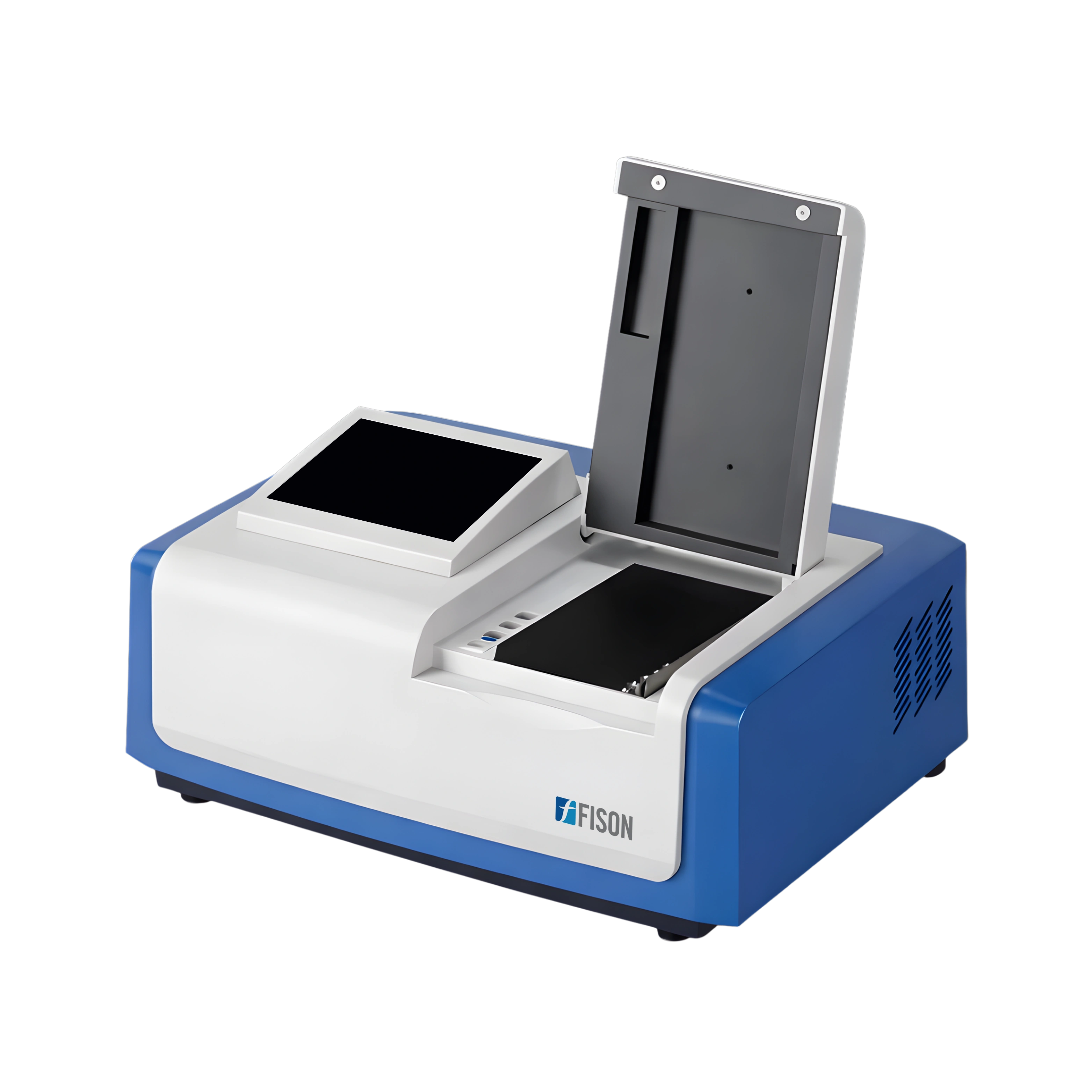

Fison Double Beam UV Visible Spectrophotometer FM-UVS-C100 features a wavelength range of 190 to 1100 nm, ±0.5 nm wavelength accuracy, and 1.8 nm spectrum bandwidth for detailed spectral measurements. This UV spectrometer with double-beam technology integrates a Czerny-Turner monochromator, 1200 lines/mm grating, and silicon photocell detector for stable absorbance analysis. The unit offers an automatic wavelength settings, full-spectrum scanning, peak/valley detection, and storage of test results and scanned images.
$4,740.00
| Wavelength Range | 190 to 1100 nm |
| Wavelength Accuracy | ±0.5 nm |
| Wavelength Repeatability | ≤0.2 nm |
| Spectrum Bandwidth | 1.8 nm |
| Photometry | Double Beam |
| Photometric Range | 0.0 to 200.0%T 0.301 to 4.000 A 0.000 to 9999 C |
| Photometric Accuracy | ±0.3%T +0.002 Abs (0–0.5 A) ±0.004 Abs (0.5–1 A) |
| Photometric Repeatability | ≤0.15%T 0.001 Abs (0–0.5 A) 0.002 Abs (0.5–1 A) |
| Monochromator Type | Czerny-Turner |
| Focal Length | 160 mm |
| Grating | 1200 lines/mm |
| Detector | Silicon Photocell |
| Wavelength Setting | 8-inch color touch-screen |
| Scanning Speed | Fast-Medium-Slow |
| Stray Light | ≤0.03%T (at 220 nm NaI, 360 nm NaNO₂) |
| Baseline | ≤±0.002 A (200–1090 nm) |
| Noise | 100% (T) noise ≤0.15%T, 0% (T) noise ≤0.1%T |
| Drifting | ≤0.0009 Abs/30 min (250 nm and 500 nm after 2 h warm-up) |
| Power Consumption | 200W |
| Power Supply | AC 220V ±22V 50Hz ±1Hz, |
| Dimension (L×B×H) | 710 mm × 590 mm × 505 mm, 0.21 m³ |
| Weight | 36 kg |
Double Beam UV Visible Spectrophotometer FM-UVS-C100 is suitable for pharmaceutical analysis, biochemistry and molecular biology studies, environmental testing, food and beverage analysis, chemical research, and academic laboratory workflows.
Accessory | Quantity |
Glass cuvette 1cm | 4 pcs |
Quartz cuvette 1cm | 2 pcs |
Power cable | 1 |
Fuse | 2 pcs |
Fison Double Beam UV Visible Spectrophotometer offers a wavelength range of 190 to 1100 nm, wavelength accuracy up to ±0.5 nm, and adjustable spectral bandwidth options from 0.5 to 5 nm. Designed as a lab spectrophotometer, it features a double-beam optical system that supports stable absorbance and transmittance measurements with reduced measurement variations. USB and printer connectivity enable efficient data transfer and reporting, while advanced optical components provide consistent spectral analysis performance.
