Horizontal Autoclave FM-HA-A100 Catalog

Overview

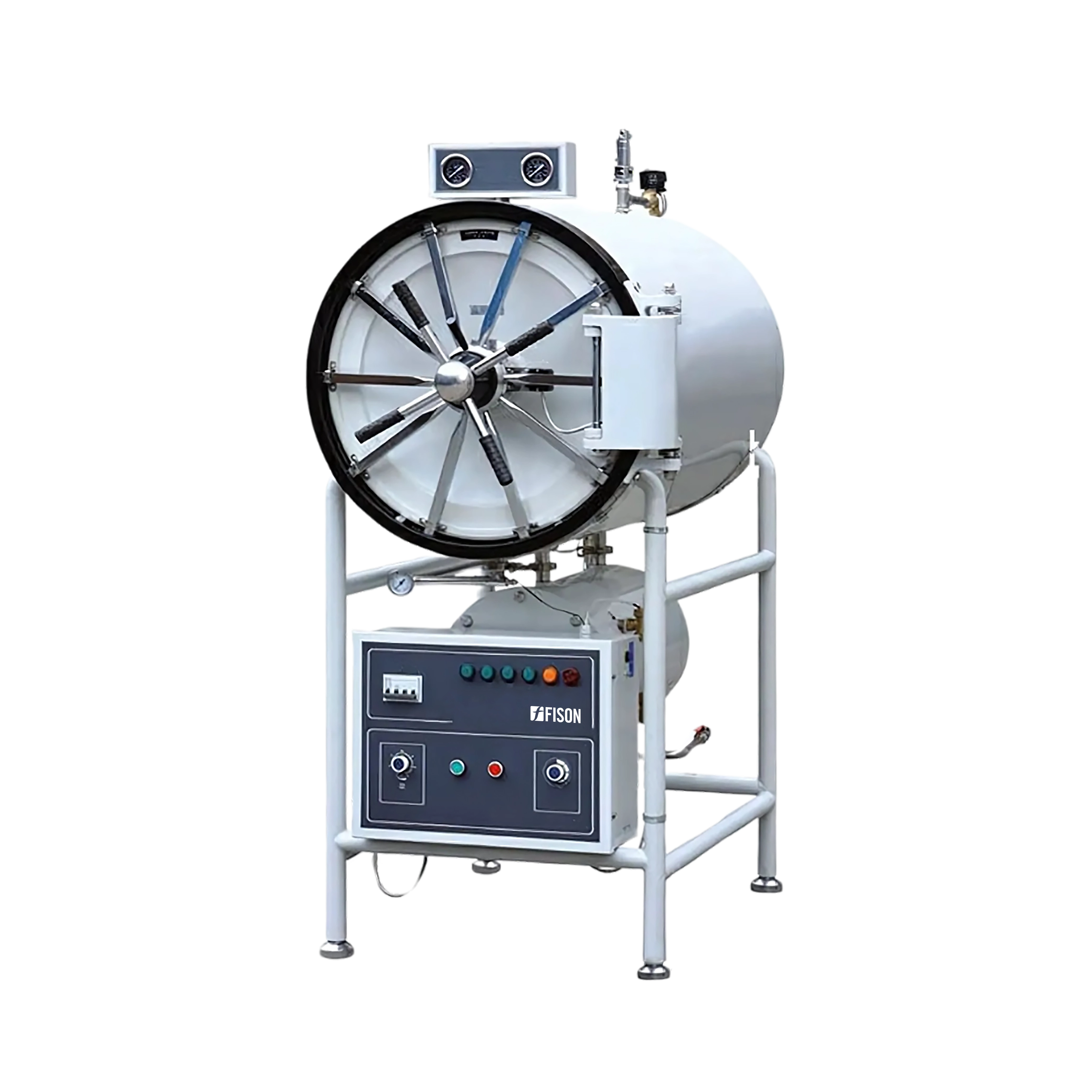

Fison Horizontal Autoclave FM-HA-A100 features a 150 L stainless steel chamber with a sterilization temperature of 134°C and 0.22 MPa working pressure for efficient steam sterilization. Equipped with automatic pressure control, a radial locking door system, a steam jacket, a multi-port valve, and safety protection features, it ensures consistent and secure sterilization of laboratory instruments and materials.

Specifications:

Features:

• Automatic sterilization cycle ensures simple and convenient operation
• Drying function enables effective drying of sterilized instruments and dressings
• Over-temperature and over-pressure protection enhance operational safety
• Door locking mechanism prevents opening until the chamber pressure decreases to 0.027 MPa and prevents operation if the door is not securely closed
• Safety valve automatically releases steam into the water tank when the chamber pressure exceeds 0.24 MPa
• Automatic power cut-off and alarm activate when the water level is low to protect the unit
• Stainless steel chamber provides durability and corrosion resistance

Applications:

Horizontal Autoclave FM-HA-A100 is used for sterilizing surgical instruments, glassware, laboratory equipment, dressings, linen, and rubber or plastic items. It is suitable for laboratories, hospitals, pharmaceutical facilities, food and beverage industries, and research institutions.
