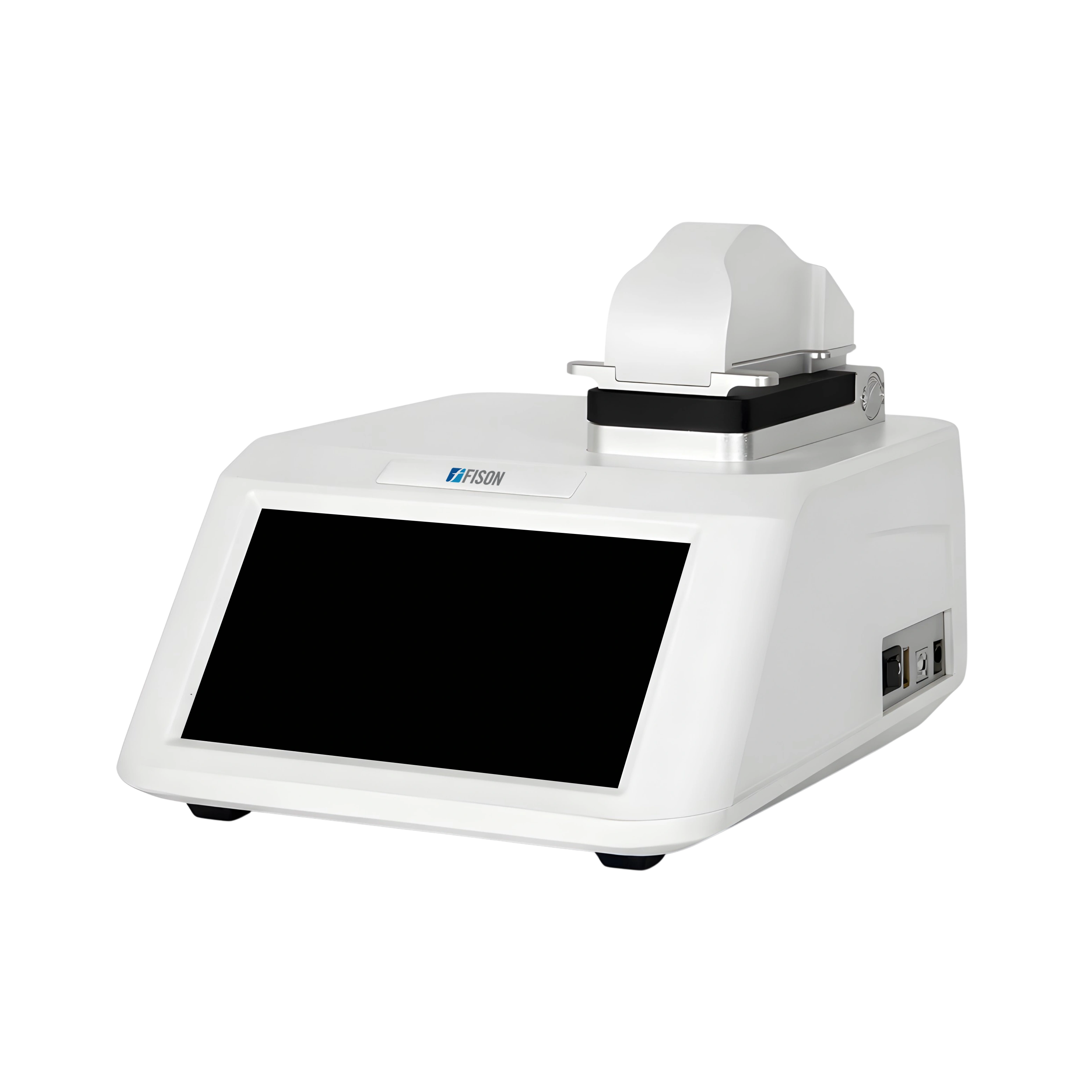

Micro Spectrophotometer FM-MS-A101 is designed to handle sample volumes ranging from 0.5 to 2.0 μL, providing accurate analysis. It offers a wide wavelength range of 180 to 910 nm, allowing for precise and flexible measurements across a broad spectrum. It features an OD600 cuvette mode with high stability and accuracy for dependable microbial growth analysis. It is equipped with a 7-inch touchscreen panel for precise monitoring and accurate calibration.
| Sample Volume | 0.5 to 2.0 μL |
| Wavelength Range | 180 to 910 nm |
| Nucleic Acid Detection Range | dsDNA: 2 to 4500 ng/μLssDNA: 1.32 to 2970 ng/μLssDNA: 1.32 to 2970 ng/μLRNA: 1.6 to 3600 ng/μL |
| Protein Detection Range | A280: 0.04 to 750 mg/mLBSA: 0.06 to 1119 mg/mLIgG: 0.03 to 547 mg/mLLysozyme: 0.015 to 284 mg/mL |
| Absorbance Range (10 mm equivalent) | 0.04 to 90 A |
| Path Length | 0.2 mm, 1.0 mm, 1.2 mm |
| Absorbance Accuracy | ±1% (7.332 Abs at 260 nm) |
| Wavelength Accuracy | ±1 nm |
| Wavelength Precision | ±0.2 nm |
| Absorbance Precision | 0.002 Abs |
| Spectral Resolution | ≤ 1.5 nm (FWHM @ Hg 253.7 nm) |
| Measurement Time | < 6 seconds |
| Light Source | Xenon flash lamp |
| Detector | 2048-element linear CMOS array |
| Sample Pedestal | 304 Stainless Steel and Quartz Fiber |
| Operating System | Android |
| Data Export | USB |
| Power Consumption | 48 W / < 6.5 W |
| Power Supply | 12V 4A |
| Dimensions (W×D×H) | 270 × 210 × 196 mm |
| Weight | 3.3 kg |
Micro Spectrophotometer FM-MS-A101 is widely used in molecular biology, biotechnology, and clinical research laboratories for the accurate quantification and analysis of nucleic acids.
