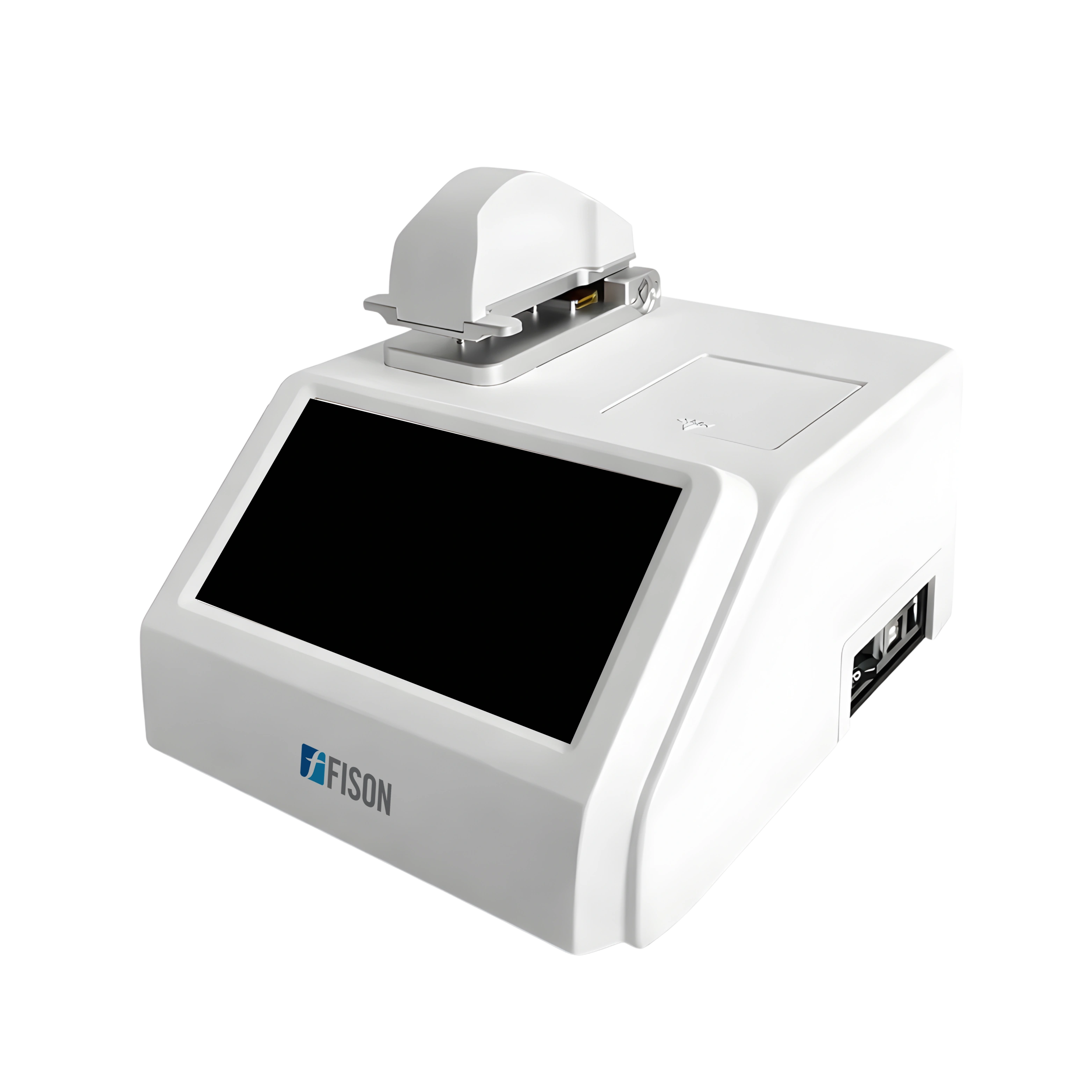

Micro Spectrophotometer FM-MS-A103 Catalog
Overview
Micro Spectrophotometer FM-MS-A103 operates with a minimal sample volume of 0.5 to 2 μL, with 2 μL recommended to ensure reliable measurements. It features a wavelength range of 180 to 910 nm, allowing accurate detection. It offers a stirring speed range of 100 to 900 rpm, ensuring uniform mixing for consistent results. It is integrated with a long-life xenon flash lamp for extended use and reliable performance. It features a bright LED display offering clear visibility.
Specifications :
| Sample Volume | 0.5 μL to 2 μL (Recommended: 2 μL) |
| Wavelength Range | 180 to 910 nm |
| Nucleic Acid Detection Range | dsDNA: 2 to 37500 ng/μLssDNA: 1.32 to 24750 ng/μLRNA: 1.6 to 30000 ng/μL |
| Protein Detection Range | A280: 0.04 to 750 mg/mLBSA: 0.06 to 1119 mg/mLIgG: 0.03 to 547 mg/mLLysozyme: 0.015 to 284 mg/mL |
| Absorbance Range (10 mm equiv.) | 0.04 to 750 (at 260 nm) |
| Path Lengths | 0.02 mm, 0.03 mm, 0.1 mm, 0.2 mm, 1 mm |
| Wavelength Accuracy | ±1 nm |
| Wavelength Precision | ±0.2 nm |
| Absorbance Precision | 0.002 Abs (1 mm path length) |
| Spectral Resolution | ≤ 1.5 nm (FWHM @ Hg 253.7 nm) |
| Absorbance Accuracy | ±1% (7.332 at 260 nm) |
| Light Source / Life | Xenon / >10⁹ flashes |
| Detector | 2048-element linear CMOS array |
| Sample Pedestal Material | 304 Stainless Steel and Quartz Fiber |
| Measurement Time | <6 seconds |
| OD600 Absorbance Range | 0 to 4.000 Abs |
| OD600 Absorbance Stability | (0 to 3): ≤0.5% [3 to 4): ≤1.5% |
| OD600 Repeatability | (0 to 3): ≤0.5% [3 to 4): ≤1.5% |
| OD600 Accuracy | (0 to 2): ≤0.005 A [2 to 3): ≤1%, [3 to 4): ≤2% |
| Stirring Speed | 100 to 900 rpm |
| Power Adapter | DC 12V 4A |
| Heating | Up to 37℃ |
| Power Consumption (Work/Standby) | 48 W / <6.5 W |
| Dimensions (W×D×H) | 300 × 232 × 196 mm |
| Weight | 4.1 kg |
Features :
- Low sample volume
- Auto calibration
- USB port for connectivity
- Auto-detection function
- Quick detection
- Robust construction
Applications :
Micro Spectrophotometer FM-MS-A103 is widely used to measure the optical spectra of samples with a spatial resolution on the micron scale. It is widely used in laboratories, molecular biology, and pharmaceuticals.
