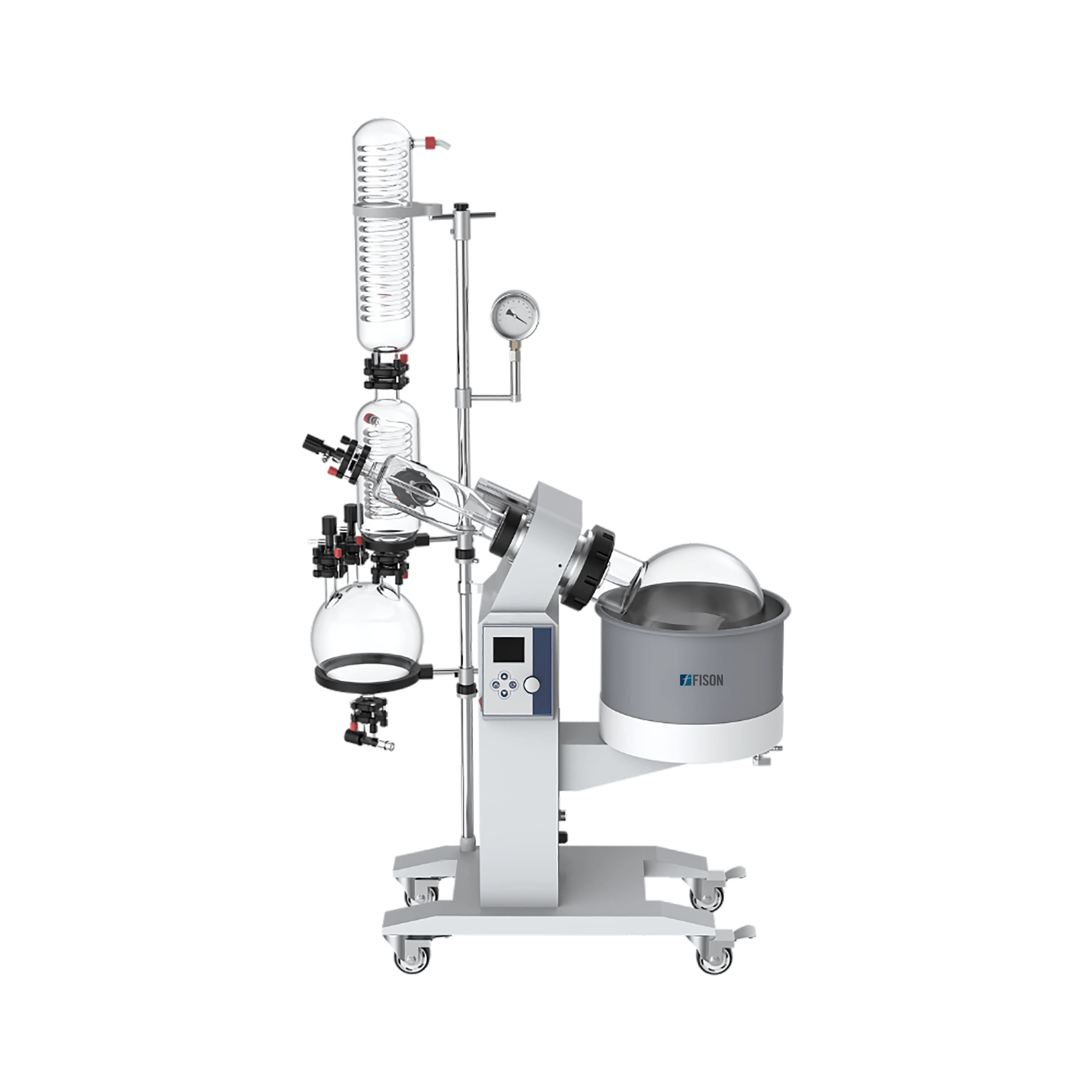

Pilot Scale Rotary Evaporator FM-PRE-A120 is designed with a 20 L evaporating flask for large-scale solvent recovery. It is equipped with a 10 L receiving flask for efficient collection and a vertical condenser that enhances condensation efficiency. A motorized lift ensures smooth and safe handling of the glass assembly. Precise temperature control delivers consistent evaporation performance in pharmaceutical, chemical, and industrial pilot-scale applications.
| Receiving Flask Capacity | 10 L |
| Rotation Flask Capacity | 20 L |
| Temperature Sensor | PT-100, 3-wire |
| Sealing Parts | PTFE |
| Glass Material | 3.3 borosilicate glass |
| Bath Size | Ø450 × 260 mm |
| Heating Capacity | 6000 W |
| Rotation Control | Electric |
| Vacuum Leakage | ≤ 0.33 kPa/min |
| Heat Resource | Deionized water |
| Nominal Adjustment | ±1.5°C |
| Temperature Range of Bath | RT to 95°C (water bath) / RT to 180°C (oil bath) |
| Rotation Speed | 20 to 130 rpm |
| Over-voltage Category | I |
| Protection Grade | IP20 |
| Overall Power | 6300 W |
| Power Supply | 3 to 380V, 50Hz |
| Dimensions (with glass parts) (W × D × H) | 1120 × 680 × 1900mm |
| Weight (with glass parts) | 90 kg |
Pilot Scale Rotary Evaporator FM-PRE-A120 is widely used in pharmaceutical intermediate extraction, chemical process scale-up, natural product and herbal extraction, food and beverage research, as well as industrial and academic pilot-scale laboratories.
