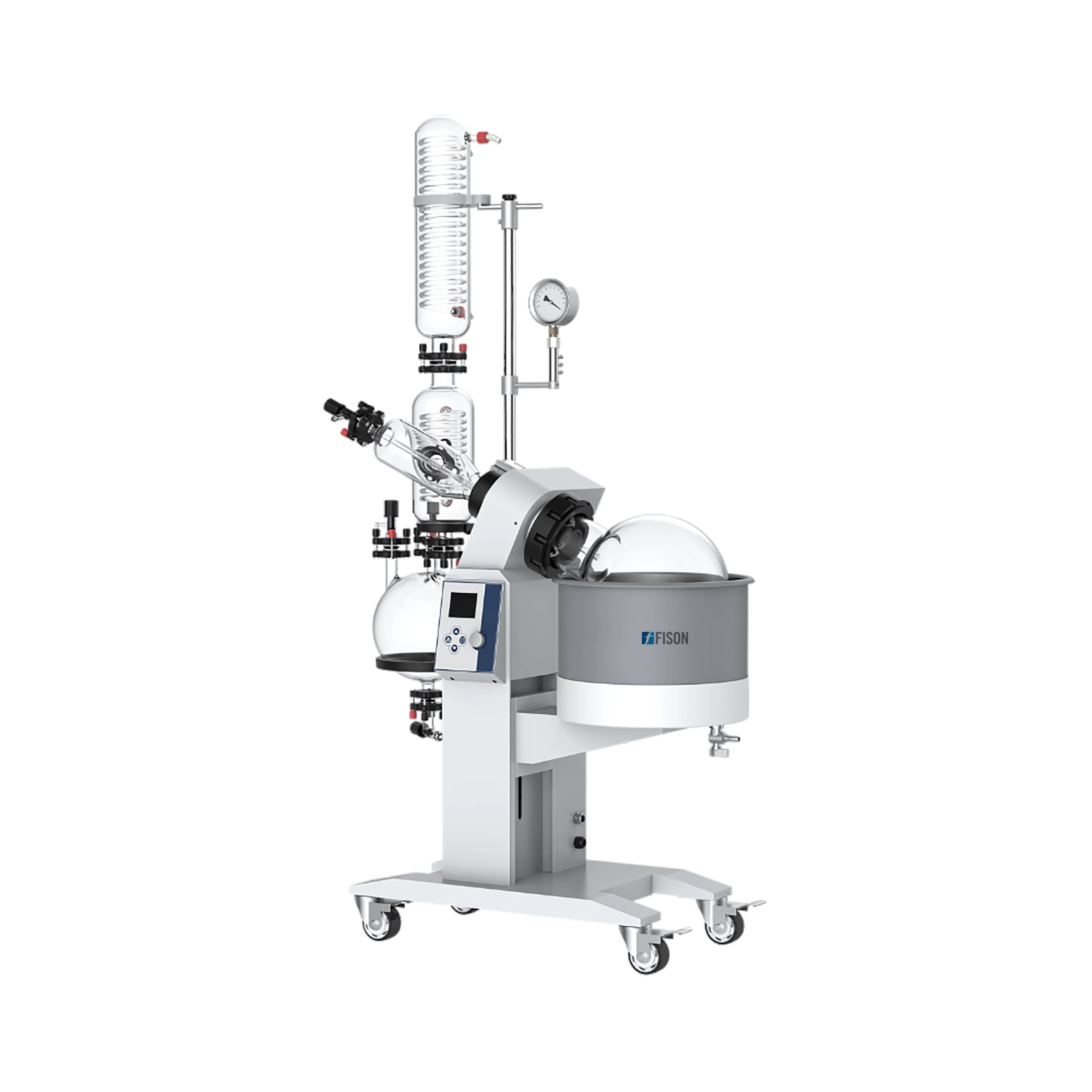

Pilot Scale Rotary Evaporator FM-PRE-A120 is designed with a 20 L evaporating flask for large-scale solvent recovery. It is equipped with a 10 L receiving flask for efficient collection and a vertical condenser that enhances condensation efficiency. A motorized lift ensures smooth and safe handling of the glass assembly. Precise temperature control delivers consistent evaporation performance in pharmaceutical, chemical, and industrial pilot-scale applications.
$6,060.00
| Receiving Flask Capacity | 10 L |
| Rotation Flask Capacity | 20 L |
| Temperature Sensor | PT-100, 3-wire |

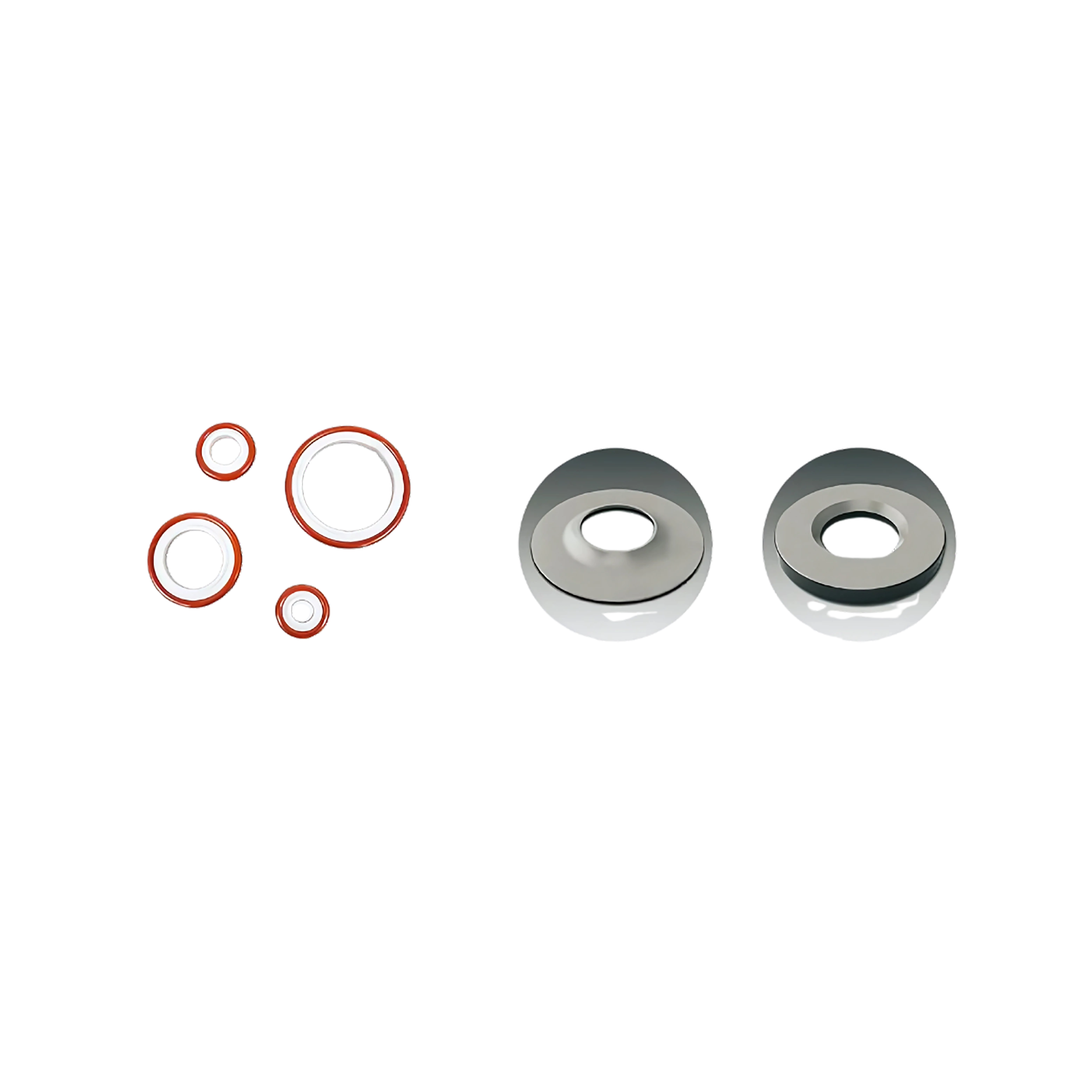

| Sealing Parts | PTFE |

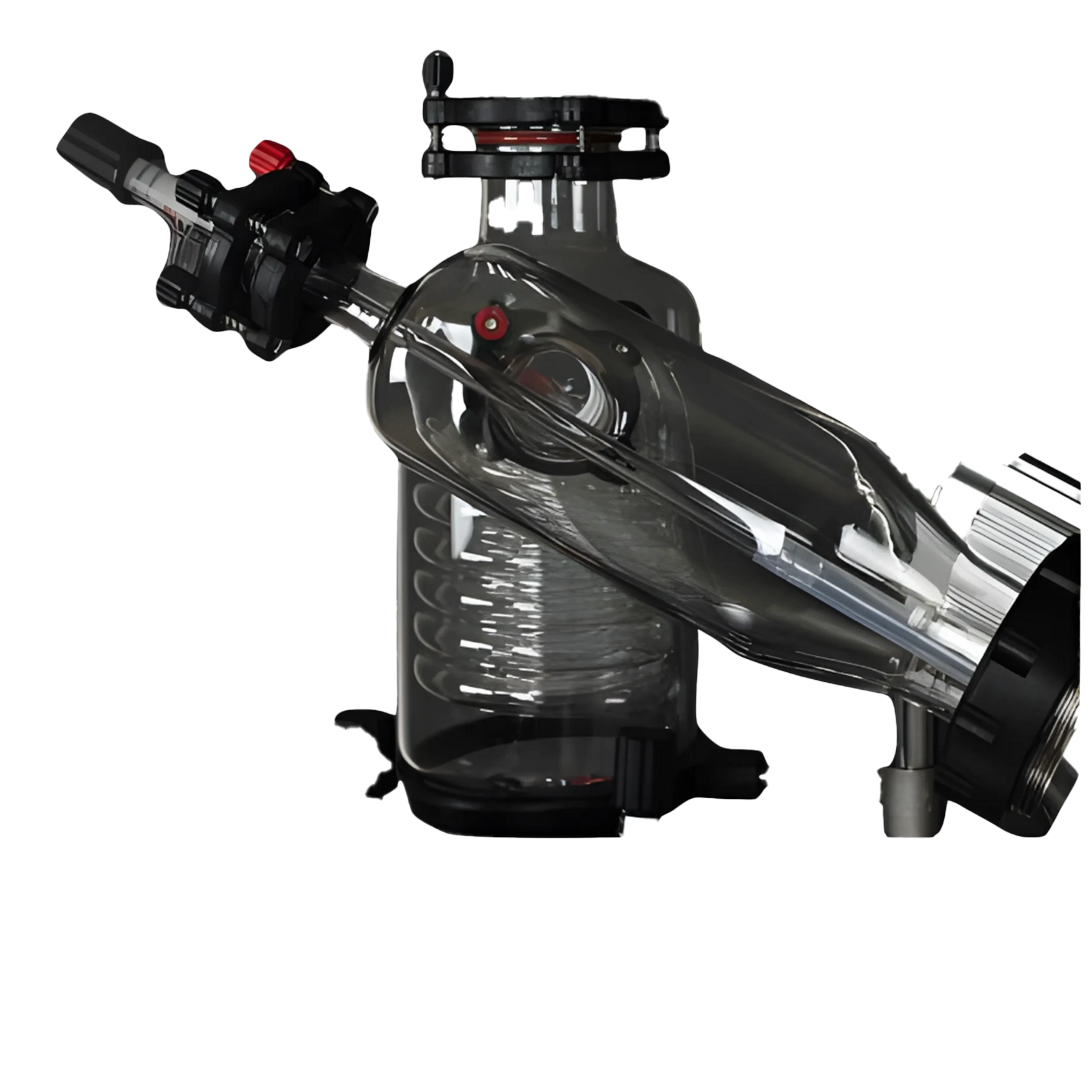

| Glass Material | 3.3 borosilicate glass |
| Bath Size | Ø450 × 260 mm |
| Heating Capacity | 6000 W |

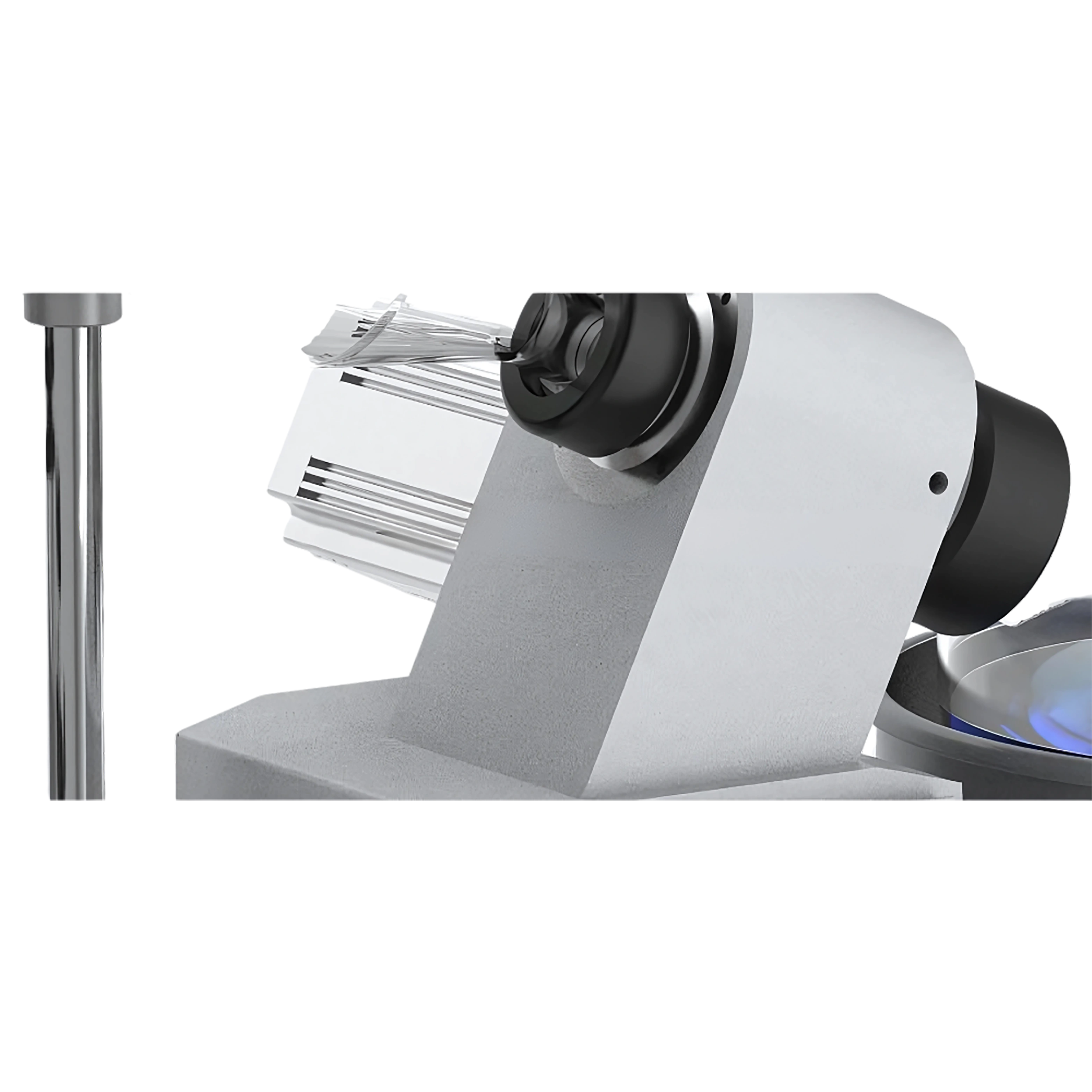

| Rotation Control | Electric |
| Vacuum Leakage | ≤ 0.33 kPa/min |

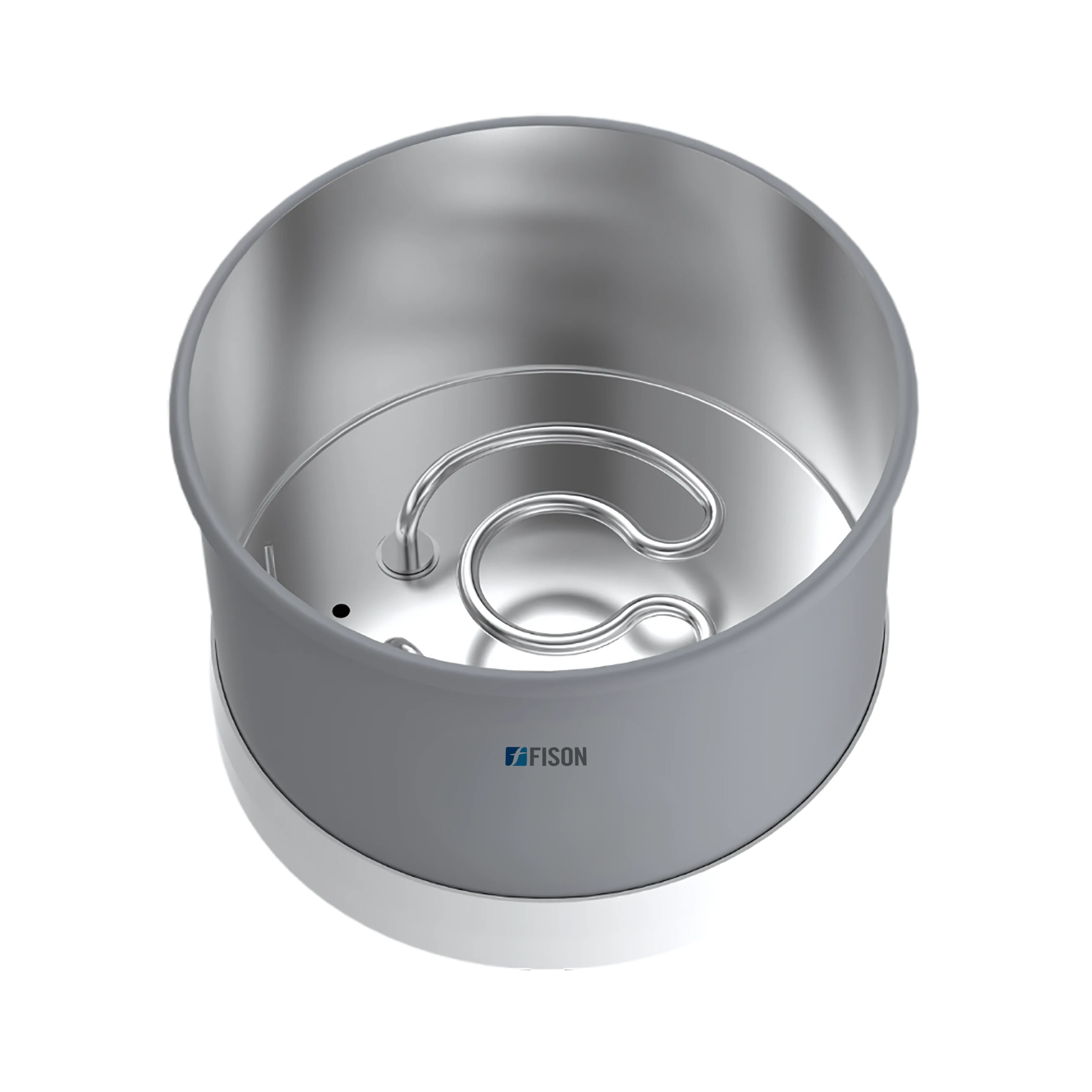

| Heat Resource | Deionized water |
| Nominal Adjustment | ±1.5°C |
| Temperature Range of Bath | RT to 95°C (water bath) / RT to 180°C (oil bath) |
| Rotation Speed | 20 to 130 rpm |
| Over-voltage Category | I |
| Protection Grade | IP20 |
| Overall Power | 6300 W |
| Power Supply | 3 to 380V, 50Hz |
| Dimensions (with glass parts) (W × D × H) | 1120 × 680 × 1900mm |
| Weight (with glass parts) | 90 kg |
1: Why is the 20L rotary evaporator ideal for pilot-scale solvent recovery?
The system’s 20 L evaporation flask, combined with a high-capacity vertical condenser, provides efficient solvent recovery with stable vacuum control. This makes it suitable for continuous large-volume concentration and purification processes.
2: What safety features are integrated into the system?
The design includes PTFE vacuum sealing for chemical resistance, precise digital bath temperature regulation, and an automated lifting mechanism. These features reduce operator exposure to solvents, improve sealing reliability, and ensure safe handling of glassware during operation.
3: What are the recommended maintenance practices?
Routine care includes cleaning condensers and flasks to prevent residue buildup, inspecting PTFE seals for wear, verifying vacuum integrity, and periodic servicing of the heating bath and vacuum pump. Following these practices extends equipment lifespan and maintains reproducible performance.
Pilot Scale Rotary Evaporators are designed to support high-volume solvent evaporation under controlled vacuum conditions. They are built to handle evaporation capacities ranging from 10 to 50 liters, making them suitable for demanding applications. With electric lift mechanisms and intuitive digital controls, they offer precise, user-friendly operation. These systems maintain excellent thermal stability and efficient condensation through advanced sealing and glassware design. Reliable and performance-driven, they are ideal for pharmaceutical production, chemical synthesis, and large-scale laboratory use.
