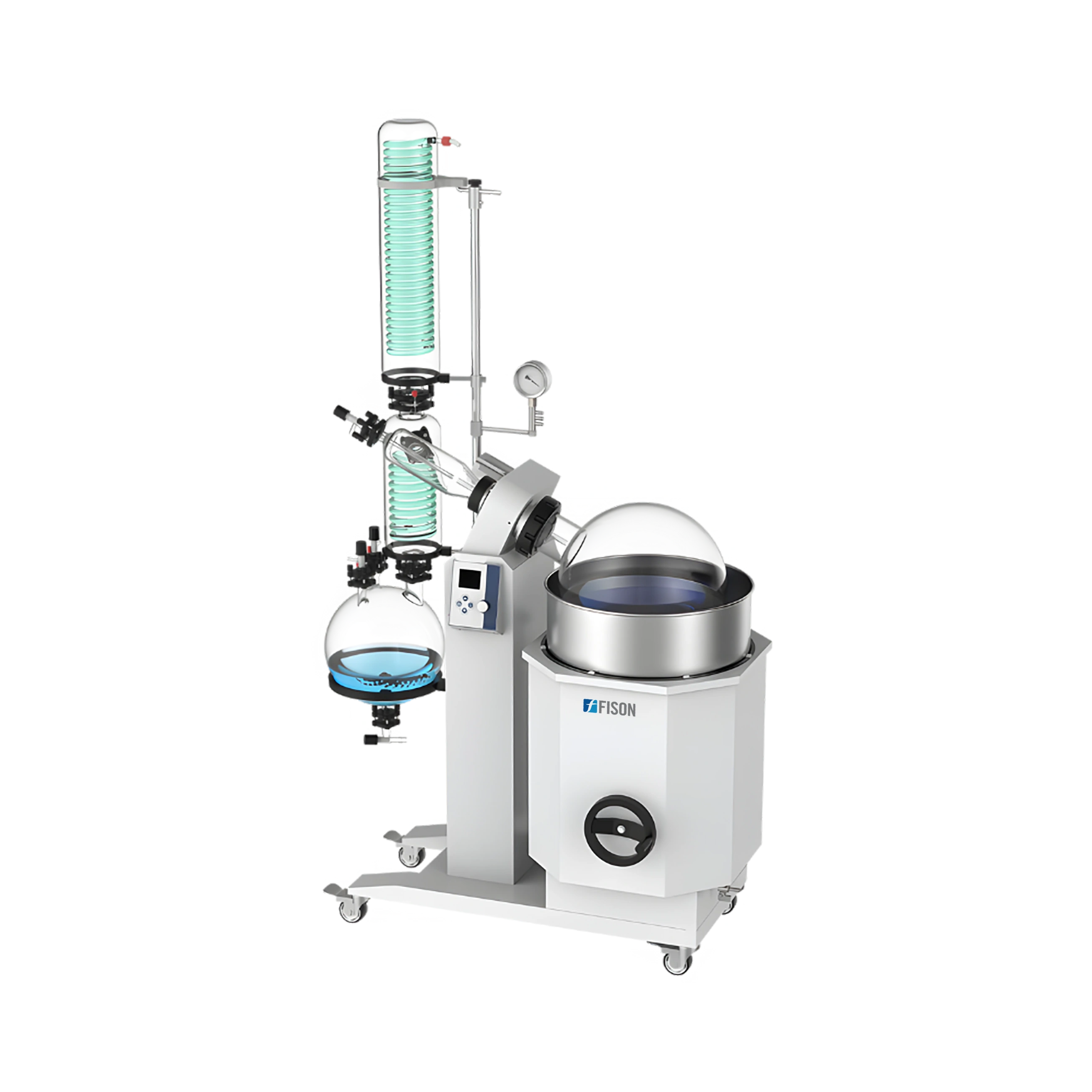

Pilot scale Rotary Evaporator FM-PRE-A122 features a 50L evaporating flask for efficient large scale solvent recovery. Its powerful 6000W heating bath delivers rapid and consistent evaporation performance. The electric lift system enables smooth, hassle-free operation for everyday use. With durable construction and innovative design, it is ideal for pharmaceutical, chemical, and industrial pilot-scale applications.
| Rotation speed | 20 to 110 rpm |
| Rotation flask | 50L |
| Receiving flask | 20L |
| Temperature range of bath | RT to 99°C (water bath) / RT to 180°C (oil bath) |
| Temperature control accuracy | ±1°C |
| Heating capacity | 6000W |
| Bath size | Φ550×320 mm |
| Vacuum leakage | ≤0.33 kPa/min |
| Lift method | Electric |
| Glass material | 3.3 borosilicate glass |
| Sealing parts | PTFE |
| Temperature sensor | PT-100, 3-wire |
| Overall power | 6300W |
| Power supply | 3 to 380V, 50Hz |
| Dimensions (with glass parts) (W × D × H) | 1345 × 770 × 2230mm |
| Weight (with glass parts) | 140 kg |
Pilot scale Rotary Evaporator FM-PRE-A122 is ideal for large scale solvent recovery, pharmaceutical and chemical process development, herbal and natural product extraction, as well as food and beverage research and production.
