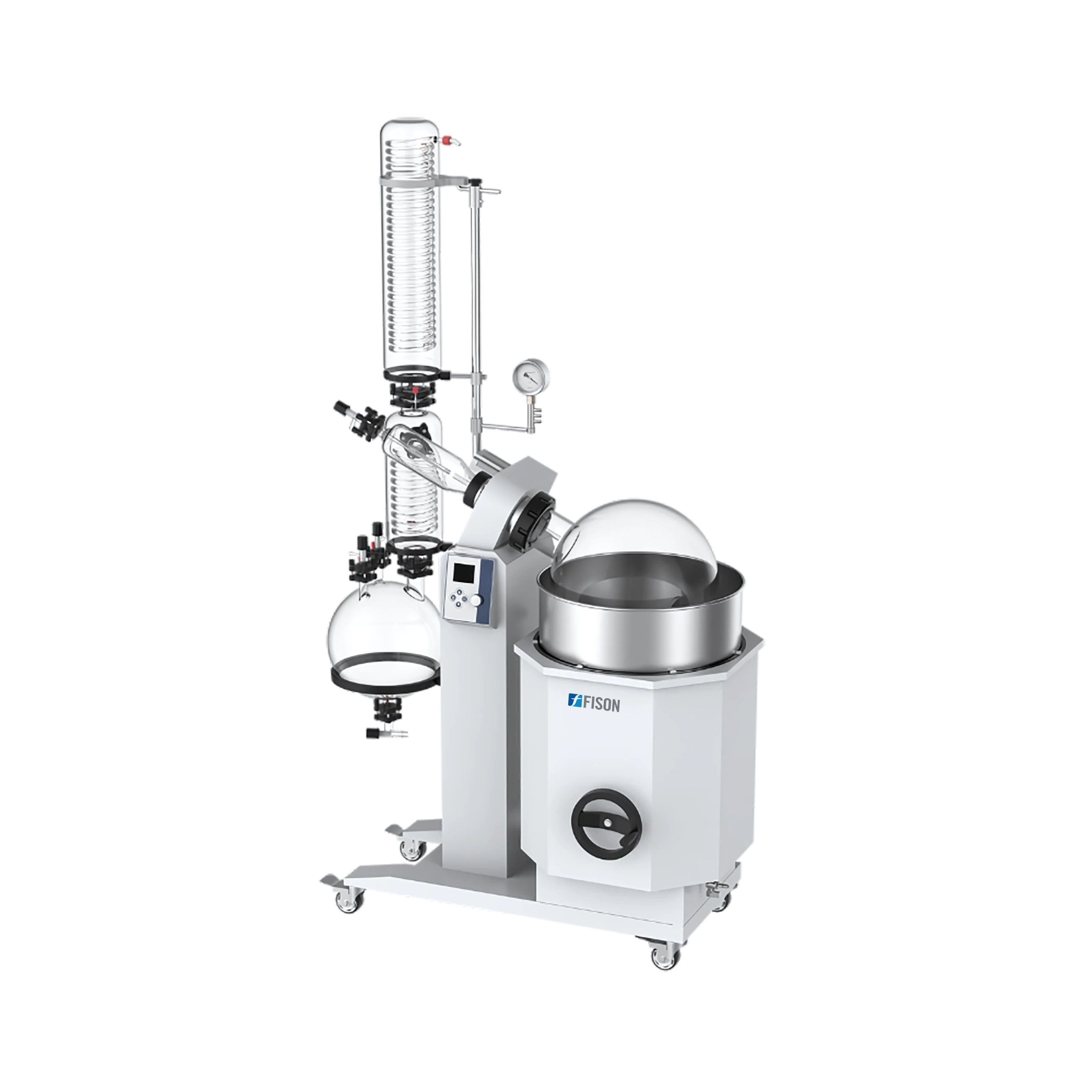

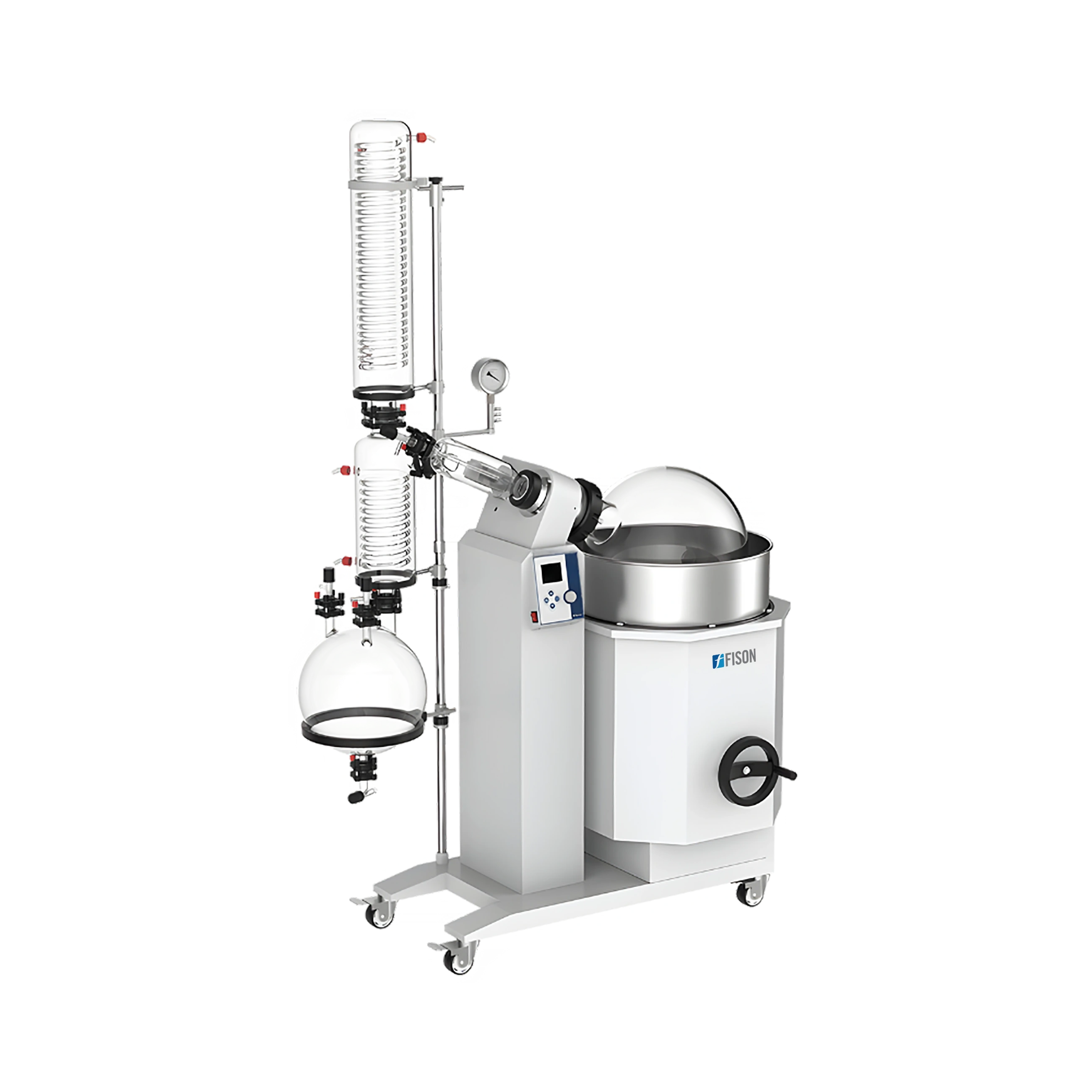

Pilot scale Rotary Evaporator FM-PRE-A122 features a 50L evaporating flask for efficient large scale solvent recovery. Its powerful 6000W heating bath delivers rapid and consistent evaporation performance. The electric lift system enables smooth, hassle-free operation for everyday use. With durable construction and innovative design, it is ideal for pharmaceutical, chemical, and industrial pilot-scale applications.
$7,870.00
| Rotation speed | 20 to 110 rpm |
| Rotation flask | 50L |
| Receiving flask | 20L |
| Temperature range of bath | RT to 99°C (water bath) / RT to 180°C (oil bath) |
| Temperature control accuracy | ±1°C |
| Heating capacity | 6000W |
| Bath size | Φ550×320 mm |
| Vacuum leakage | ≤0.33 kPa/min |
| Lift method | Electric |
| Glass material | 3.3 borosilicate glass |
| Sealing parts | PTFE |
| Temperature sensor | PT-100, 3-wire |
| Overall power | 6300W |
| Power supply | 3 to 380V, 50Hz |
| Dimensions (with glass parts) (W × D × H) | 1345 × 770 × 2230mm |
| Weight (with glass parts) | 140 kg |
1: What is the sealing performance of the Pilot-scale Rotary Evaporator FM-PRE-A122?
Pilot scale Rotary Evaporator FM-PRE-A122 features an advanced sealing system that ensures minimal vacuum loss, providing stable and efficient solvent recovery.
2: How does Pilot scale Rotary Evaporator FM-PRE-A122 support continuous operation?
Pilot scale Rotary Evaporator FM-PRE-A122 is equipped with an automatic switching valve, allowing uninterrupted distillation and smooth transfer of solvents from the receiving flask.
3: What safety features are included in Pilot-scale Rotary Evaporator FM-PRE-A122?
The Pilot scale Rotary Evaporator FM-PRE-A122 includes PTFE discharge valves and protective covers to minimize burn risks and enhance safe handling during operation.
Pilot Scale Rotary Evaporators are designed to support high-volume solvent evaporation under controlled vacuum conditions. They are built to handle evaporation capacities ranging from 10 to 50 liters, making them suitable for demanding applications. With electric lift mechanisms and intuitive digital controls, they offer precise, user-friendly operation. These systems maintain excellent thermal stability and efficient condensation through advanced sealing and glassware design. Reliable and performance-driven, they are ideal for pharmaceutical production, chemical synthesis, and large-scale laboratory use.
