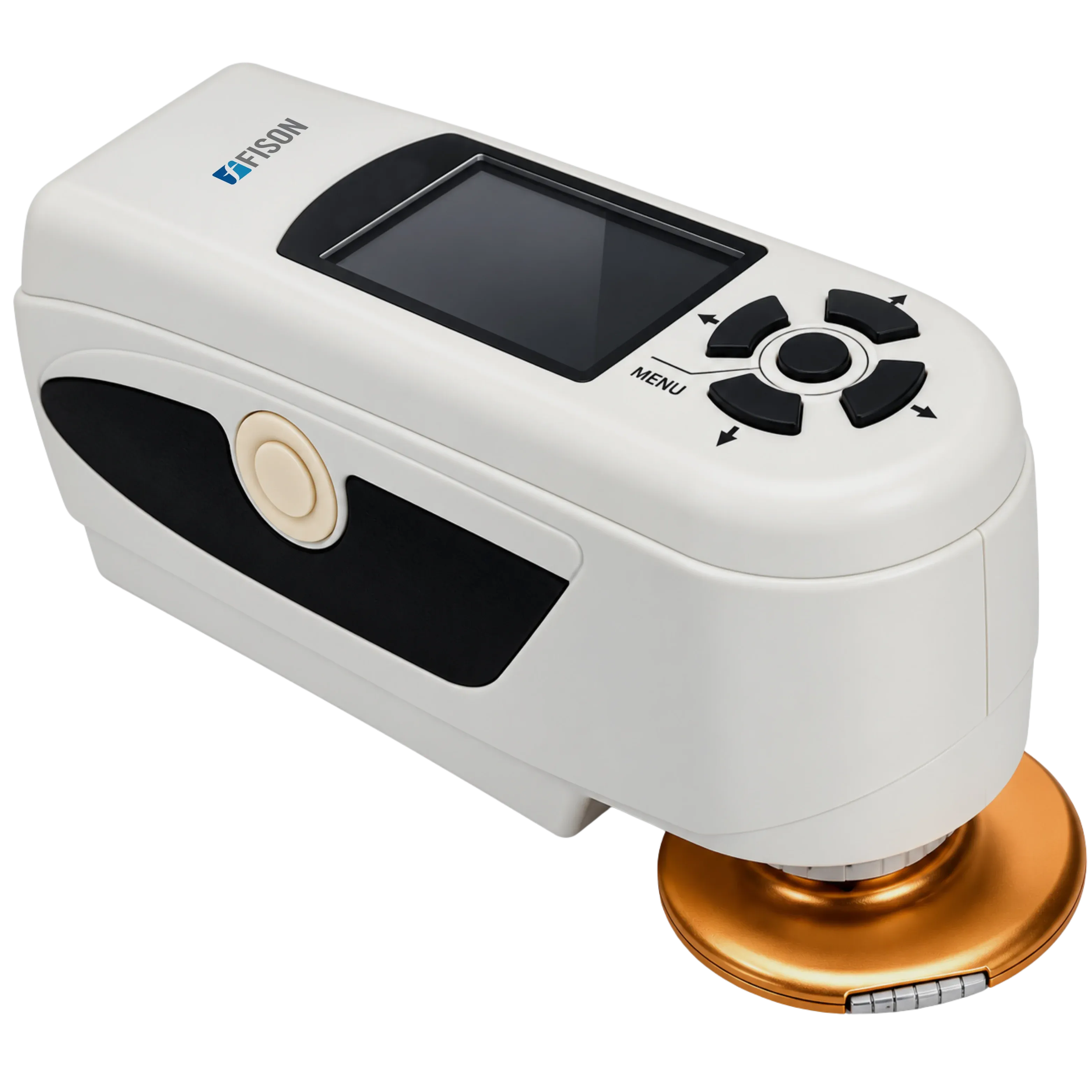

Portable Colorimeter FM-PC-B100 features an 8 mm measurement aperture for accurate and consistent color evaluation across different materials. It is designed as a portable and user-friendly device, it supports multiple international color systems and offers fast measurement speed. It also includes large data storage and software integration, making it suitable for quality control, R&D, and industrial applications.
| Illuminating/Viewing Geometry | 8/d |
| Measuring Aperture | Φ8mm/Φ4mm |
| Detector | Silicon photodiode |
| Color Space | CIELabCh*, CIELab*, CIE XYZ, CIE RGB, CIELuv*, CIELCh, Yellowness & Whiteness, Color Fastness |
| Color Difference Formula | ΔEab, ΔLab, ΔECh*, ΔE CIE94, ΔE Hunter |
| Light Source | D65, D50, A |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.40 ΔE*ab |
| Storage | 1000 standards, 20000 pcs samples |
| Repeatability | Standard deviation within ΔE*ab 0.06 (average of 30 measurements of standard white plate) |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Charging Time | 2 hours (first time 8 hours – 100% electricity) |
| Measuring Times Before Recharging | More than 3000 times |
| Operating Temperature / Humidity Range | -10°C to 40°C, relative humidity 0–85% (no condensation) |
| Data Interface | USB |
| Extended Aperture (Optional) | Φ8mm extended aperture, available for measuring concave surface |
| Printer (Optional) | Miniature thermal printer |
| Power Source | Rechargeable lithium-ion battery, 3.7V @ 3200mAh |
| Dimension ( W × D × H ) | 205 × 70 × 100 mm |
| Weight | 500 g |
The Portable Colorimeter FM-PC-B100 is widely used in plastics, paints, coatings, textiles, leather, food, beverages, chemicals, pharmaceuticals, and research labs, ensuring accurate shade matching, batch consistency, and reliable color quality control across industries.
