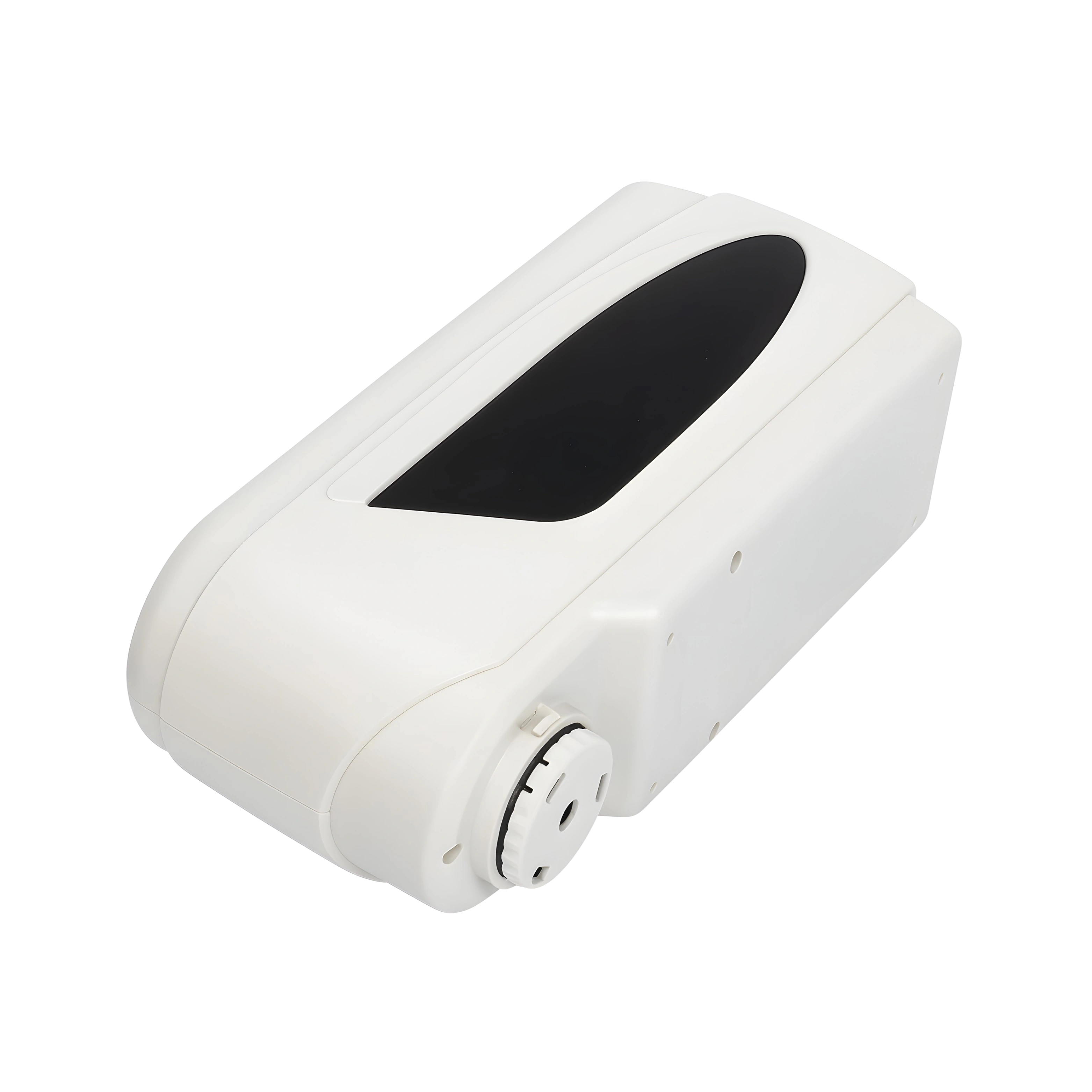

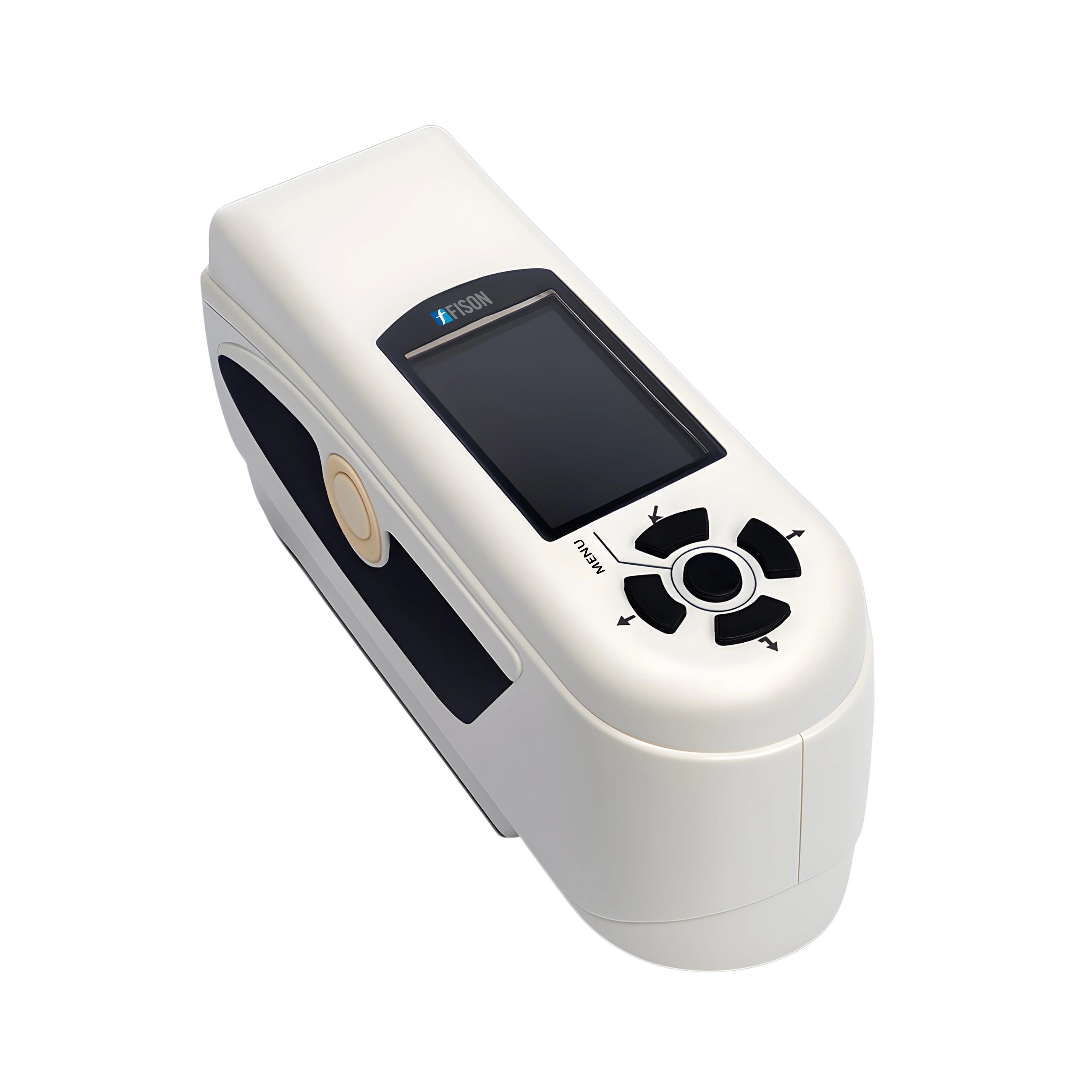

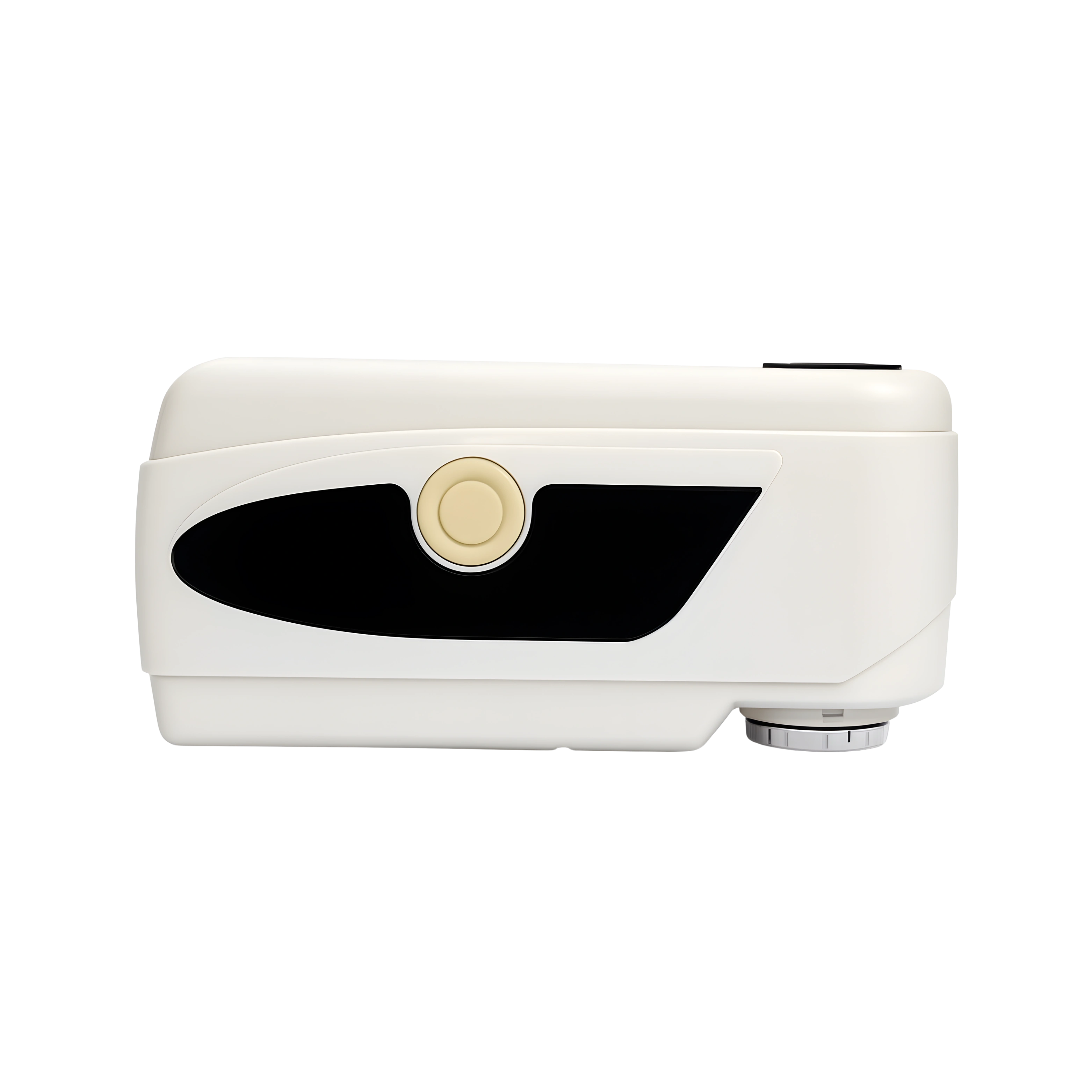

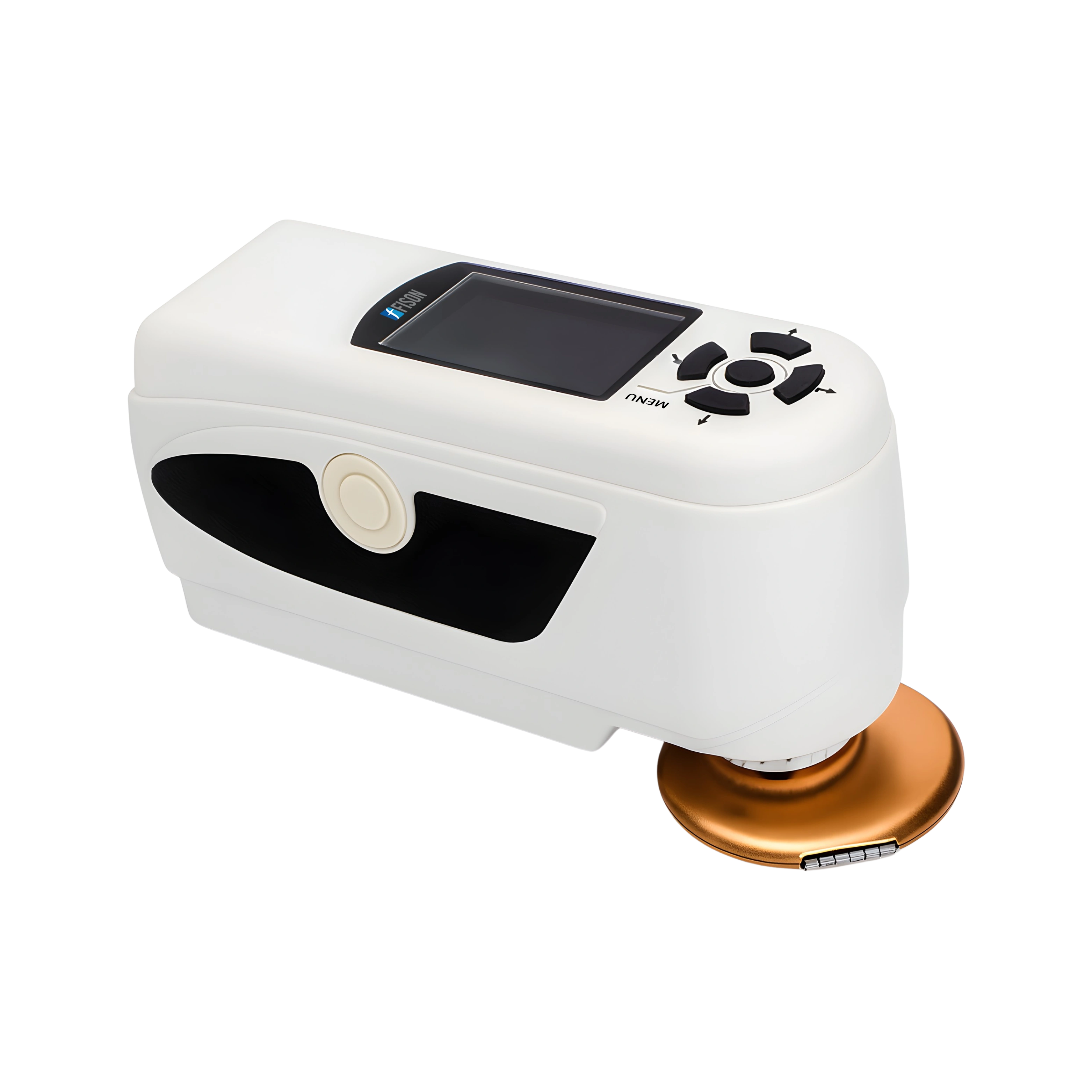

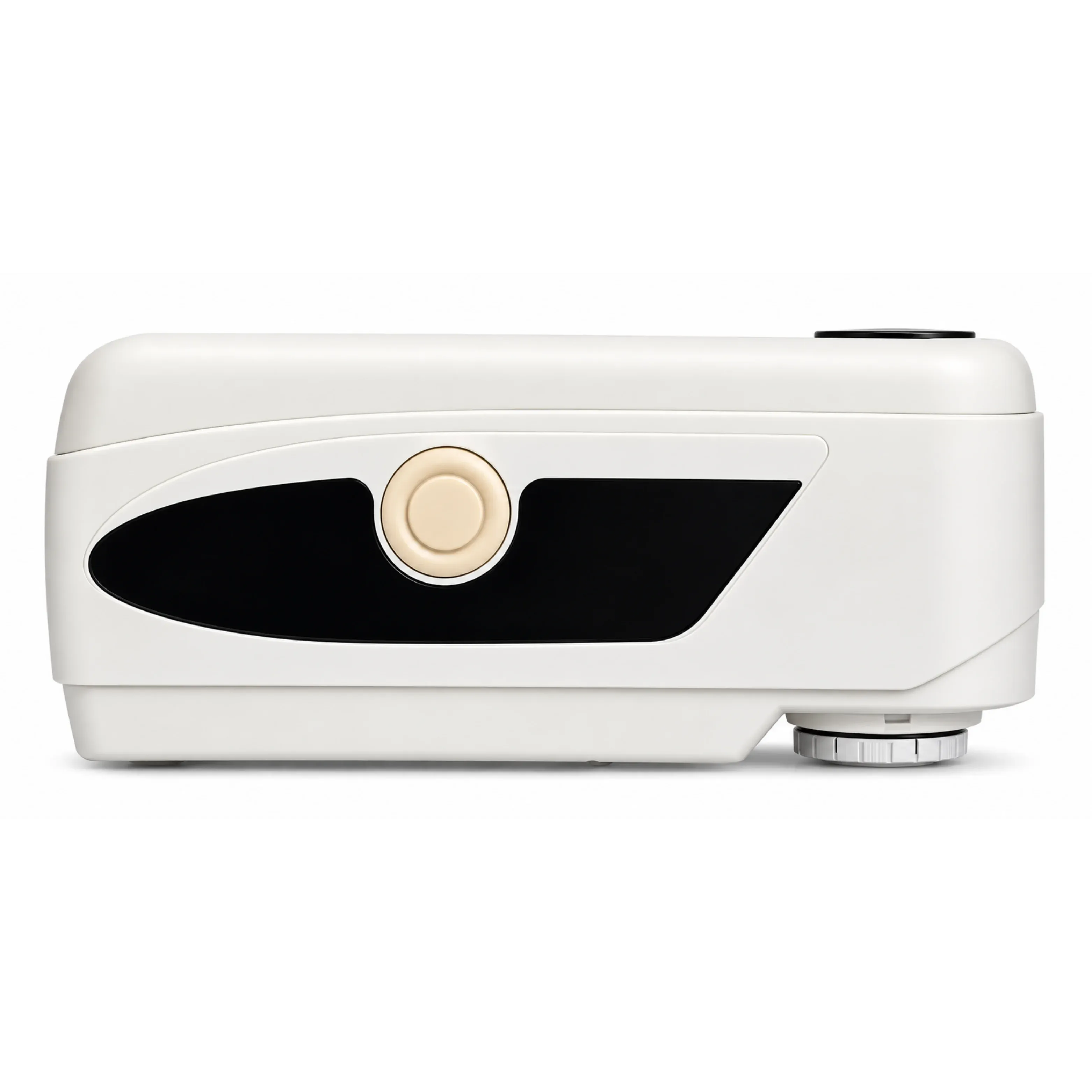

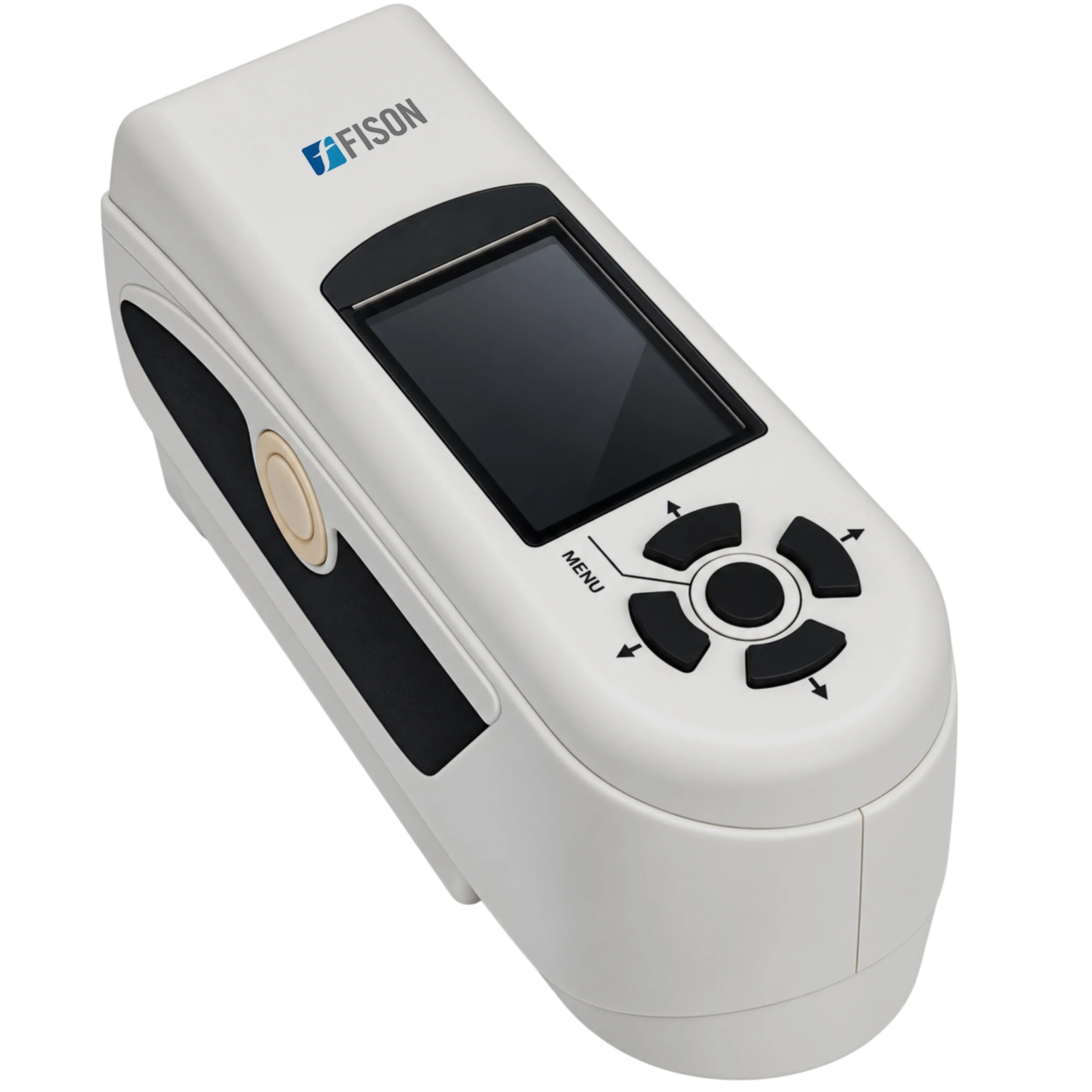

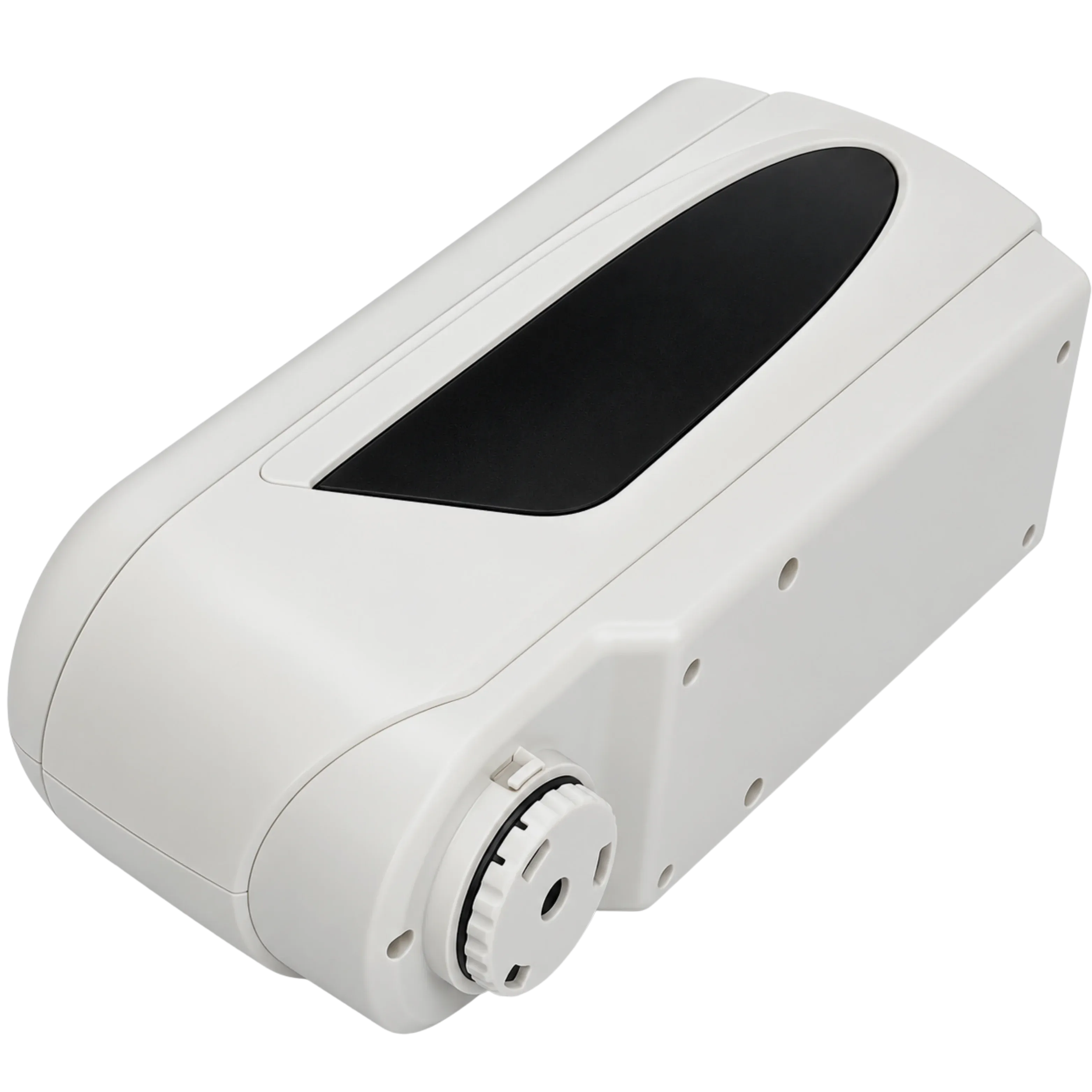

Portable Colorimeter FM-PC-B100 features an 8 mm measurement aperture for accurate and consistent color evaluation across different materials. It is designed as a portable and user-friendly device, it supports multiple international color systems and offers fast measurement speed. It also includes large data storage and software integration, making it suitable for quality control, R&D, and industrial applications.
$3,650.00
| Illuminating/Viewing Geometry | 8/d |
| Measuring Aperture | Φ8mm/Φ4mm |
| Detector | Silicon photodiode |
| Color Space | CIELabCh*, CIELab*, CIE XYZ, CIE RGB, CIELuv*, CIELCh, Yellowness & Whiteness, Color Fastness |
| Color Difference Formula | ΔEab, ΔLab, ΔECh*, ΔE CIE94, ΔE Hunter |
| Light Source | D65, D50, A |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.40 ΔE*ab |
| Storage | 1000 standards, 20000 pcs samples |
| Repeatability | Standard deviation within ΔE*ab 0.06 (average of 30 measurements of standard white plate) |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Charging Time | 2 hours (first time 8 hours – 100% electricity) |
| Measuring Times Before Recharging | More than 3000 times |
| Operating Temperature / Humidity Range | -10°C to 40°C, relative humidity 0–85% (no condensation) |
| Data Interface | USB |
| Extended Aperture (Optional) | Φ8mm extended aperture, available for measuring concave surface |
| Printer (Optional) | Miniature thermal printer |
| Power Source | Rechargeable lithium-ion battery, 3.7V @ 3200mAh |
| Dimension ( W × D × H ) | 205 × 70 × 100 mm |
| Weight | 500 g |
1: What measurement geometry does the Portable Colorimeter FM-PC-B100 use?
Portable Colorimeter FM-PC-B100 uses diffuse illumination with a 0° viewing angle (d/0), compliant with JIS Z 8722 standards for accurate and repeatable results.
2: What type of light source is integrated?
The Portable Colorimeter FM-PC-B100 is equipped with a pulsed xenon lamp, providing stable illumination and long service life.
3: Which color systems are supported?
Portable Colorimeter FM-PC-B100 supports multiple color spaces including CIE Lab, XYZ, Hunter Lab, LCh, Munsell, CMC, CIE94, CIE2000, whiteness, and yellowness indices.
4: How many measurements can be stored internally?
The Portable Colorimeter FM-PC-B100 can store up to 1,000 measurements, with options for expansion using external processors.
5: Is Portable Colorimeter FM-PC-B100 compatible with software for advanced analysis?
Yes, Portable Colorimeter FM-PC-B100 integrates with professional color analysis software for detailed reporting, quality control, and data management.
Fison Portable Colorimeters function on LED light with a wavelength accuracy of ±1 nm. These can function in wavelength ranges of 420nm, 520nm, 560nm and 610nm respectively. The devices are user-friendly, with automatic wavelength selection and correction, a USB interface and offer customization for ten measurement programs. They provide storage for up to 500 measurements. Our portable colorimeters have IP67 protection level that makes them resistant to dust, water and shocks.
