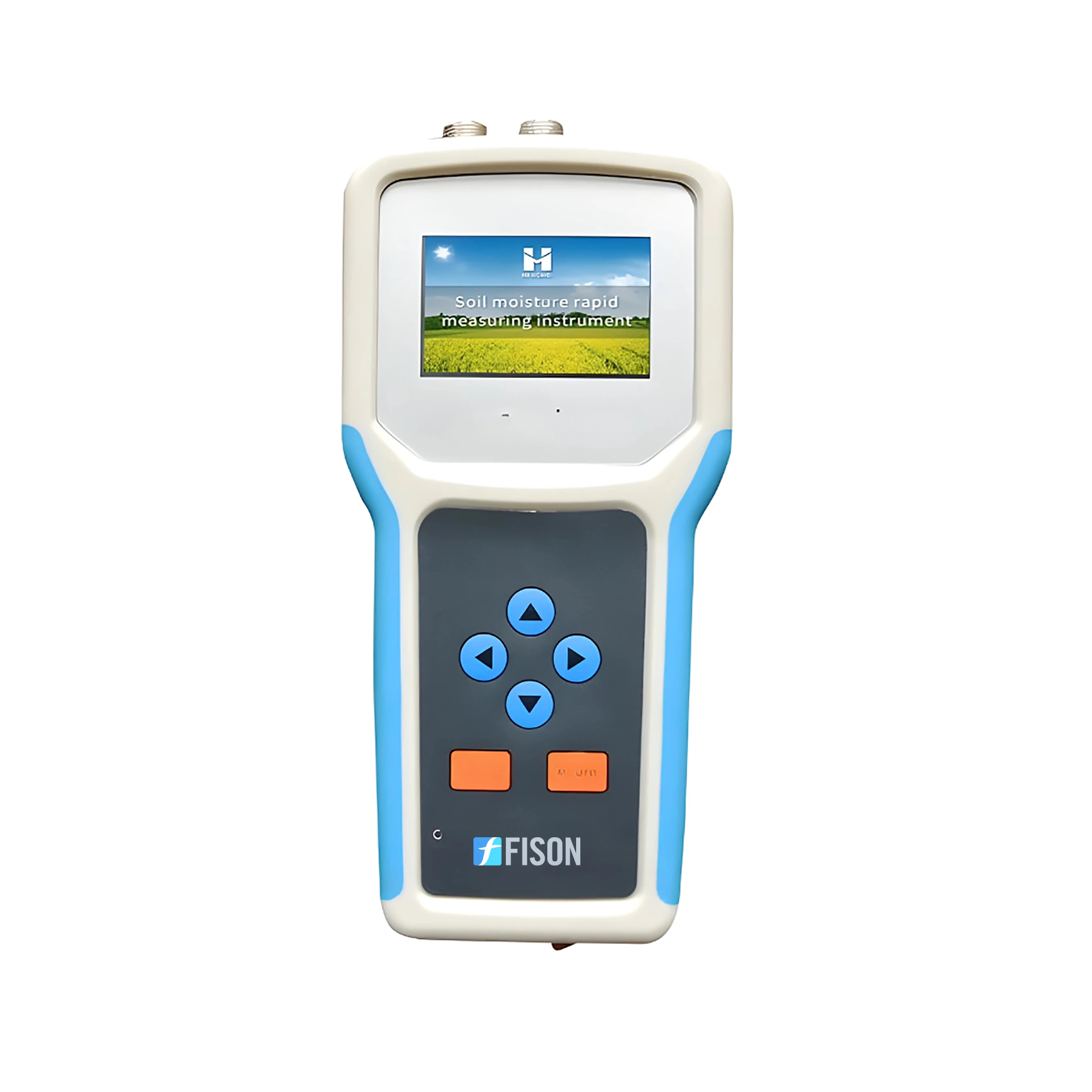

Soil moisture meter FM-SMM-A100 Catalog
Overview
Soil Moisture Meter FM-SMM-A100 features a measuring range of 0 to 100% m³/m³, ensuring accurate soil water content detection. Its probe length of up to 70 mm allows effective measurement across different soil depths. Its built-in memory allows extensive data storage for efficient field analysis and record-keeping. Our soil moisture meter is equipped with an LCD screen that clearly displays real-time measurement data.
Specifications:
| Measuring Range | 0 to 100% (m3/m3) |
| Test Sensitivity | ± 0.01% (m3/m3) |
| Detection Probe Length | Up to 70mm |
| Measurement Accuracy | 0 to 50%: ±2% (m³/m³), 50 to100%: ±3% (m³/m³) |
| Resolution | 0.1% |
| Stable Time | ~10 seconds after power on |
| Response Time | Stable within 1 second |
| Measurement Area | 90% of the influence is inside a cylinder with a diameter of 3cm and a length of 6cm surrounding the central probe |
| Stabilization Time | about 10 seconds after power-on |
| Communication Method | USB2.0 |
| Software | Free software for PC software |
| Power Supply | Lithium battery or AC |
| Dimension (L×W×H) | 204 × 100 × 36 mm |
| Packaging Dimension (L×W×H) | 450 × 190 × 350 mm |
| Net Weight | 0.3 Kg |
| Gross Weight | 3.5 Kg |
Features:
- Manual and automatic recording
- 4G cloud data upload
- Multiple soil formula support
- USB interface for data expert
- Multichannel detection and expansion
- Multiple measurement methods: insertion, burial, profile
Applications:
Soil Moisture Meter FM-SMM-A100 is widely used in soil moisture detection, dry farming, water-saving irrigation, precision agriculture, forestry, geological exploration, plant cultivation, and other related fields.
Accessories:
- Soil Moisture Sensor
- Aluminium Alloy Box
- Lithium Battery Charger
- USB Flash Drive
- Cable
Accessories Optional:
- Conversion Head
