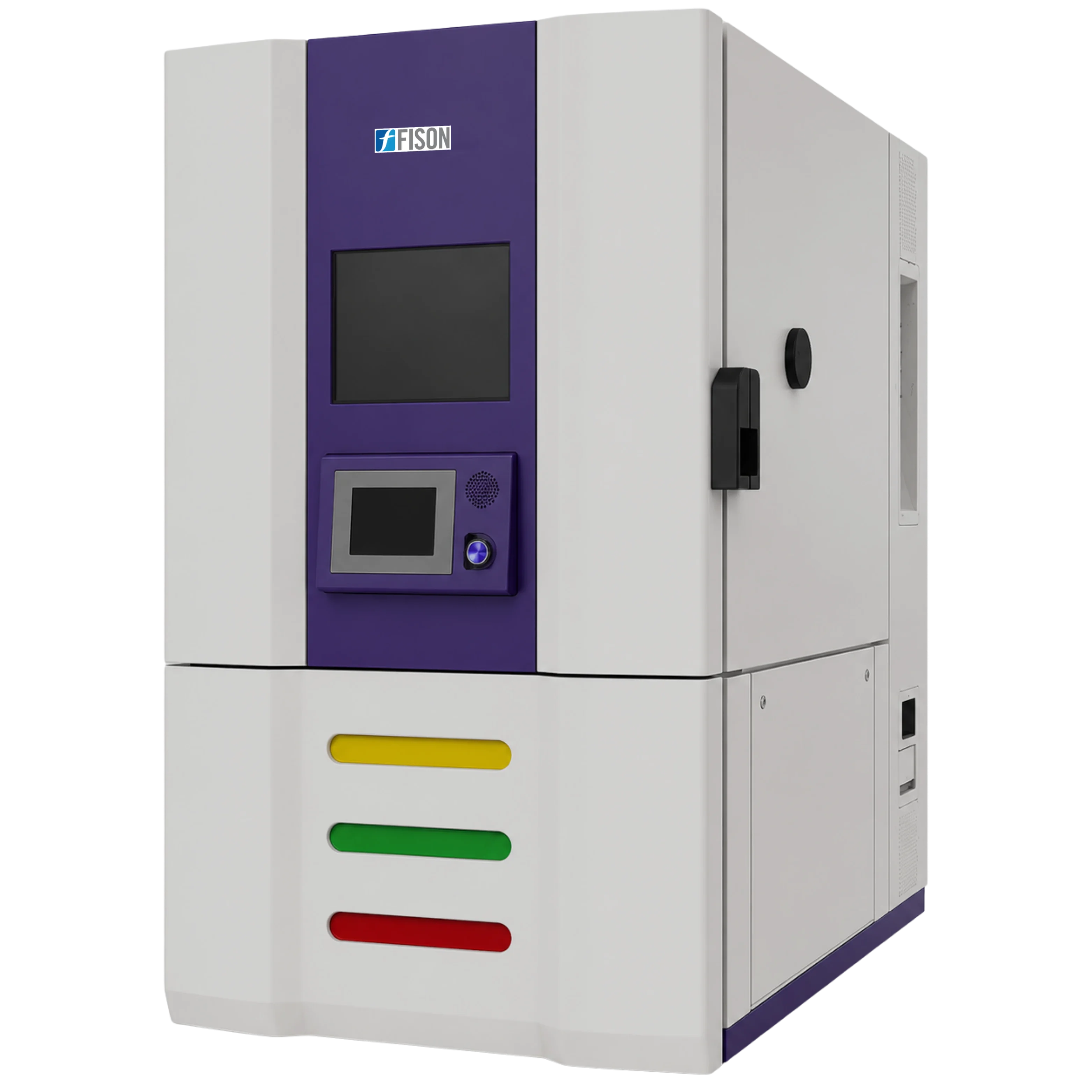

Temperature and Climate Test Chamber FM-TCC-A100 offers a 190 L capacity, ideal for various testing applications. It operates within a wide temperature range of -42 to +180 °C and a humidity range of 10 to 98% RH, for precise climate control. Its integrated fault logging software offers real-time diagnostics and maintenance alerts for improved reliability. Our chamber features a 7-inch color touch screen with a 32-bit control system ensuring easy use and precise control.
| Capacity | 190 L |
| Temperature Range | -42 to +180 °C |
| Climate Humidity Range | 10 to 98 %RH |
| Temperature Constancy | ±0.1 to ±0.5 °C |
| Climate Humidity Constancy | ±1.0 to ±3.0 %RH |
| Temperature Homogeneity | ±0.5 to ±2.0 °C |
| Heating Rate | 4.0 °C/min |
| Cooling Rate | 4.0 °C/min |
| Climate Dew Point Temperature Range | +4 (-3) to +94 °C |
| Climate Temperature Constancy | ±0.1 to ±0.3°C |
| Climate Temperature Homogeneity | ±0.5 to ±2.0 °C |
| Max. Thermal Compensation | 2800 W |
| Temp and Humid Max. Thermal Compensation | 400 W |
| Cooling Method | Air-Cooled/Water-cooled |
| Power Supply | AC 380V ±10%, 50Hz, 3/N/PE |
| Test Space Dimension (W × D × H) | 580 × 450 × 750 mm |
| External Dimension (W × D × H) | 870 × 1550 × 1800 mm |
| Net weight | 600 kg |
| Gross weight | 660 kg |
Temperature and Climate Test Chamber FM-TCC-A100 simulates extreme environmental conditions and is widely used in pharmaceuticals and biotechnology, materials science, aerospace industry, automotive industry, electronics, and semiconductor industry.
3 Power outlets for specimens
Left and right entry ports Φ50mm
Silicon stoppers for entry ports
2 Stainless steel shelves
1 Water tank with 20L
1 Water filter
