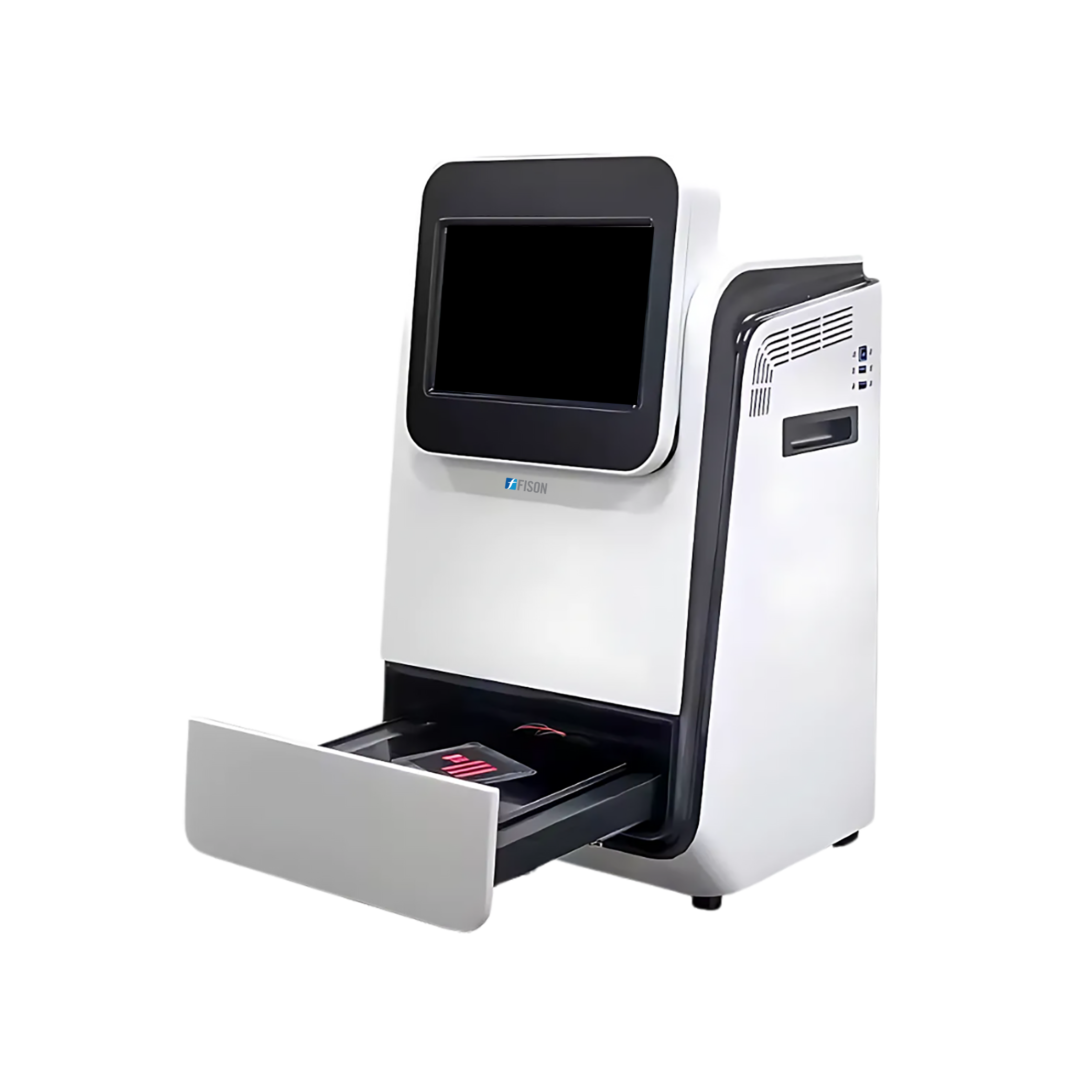

Chemiluminescence Imager FM-CI-A101
Chemiluminescence Imager FM-CI-A101 offers a 6-megapixel resolution for detailed imaging of chemiluminescent signals. This is equipped with a front-illuminated cooled CCD sensor for improved sensitivity and reduced noise in imaging. It features an accurate auto-focus function, ensuring precise alignment and clarity in imaging results. Our Imager provides a wide imaging area capacity, accommodating larger samples for comprehensive analysis.
Specifications
| Resolution | 6 Megapixels |
| Sensor | Front illuminated Cooled CCD sensor |
| Linear Range | 4.8 OD |
| Temperature | -30°C regulated (-65°C below ambient) |
| Pixel Size | 4.54 × 4.54 μm |
| Pixel Density | 16-bit (65,536 Grey scales) |
| Lens | F0.95 as standard |
| Chemi Imaging | Single Layer sample tray |
| Dimensions(L×W×H) | 420 × 430 × 740 mm |
| Weight | 18kg |
Features
- Advanced image processing algorithms
- Integrated data analysis tools
- Equipped with electronic lens
- Flexible electronic lifting platform
- Automated imaging workflow
Applications
- Chemiluminescence Imager FM-CI-A101 is used in molecular biology and biochemistry for detecting chemiluminescent signals. It is ideal for applications in research labs, clinical diagnostics, and pharmaceutical development.
Accessories Optional
- Industrial computer
Fluorescent module
Replacement of F0.8 lens
