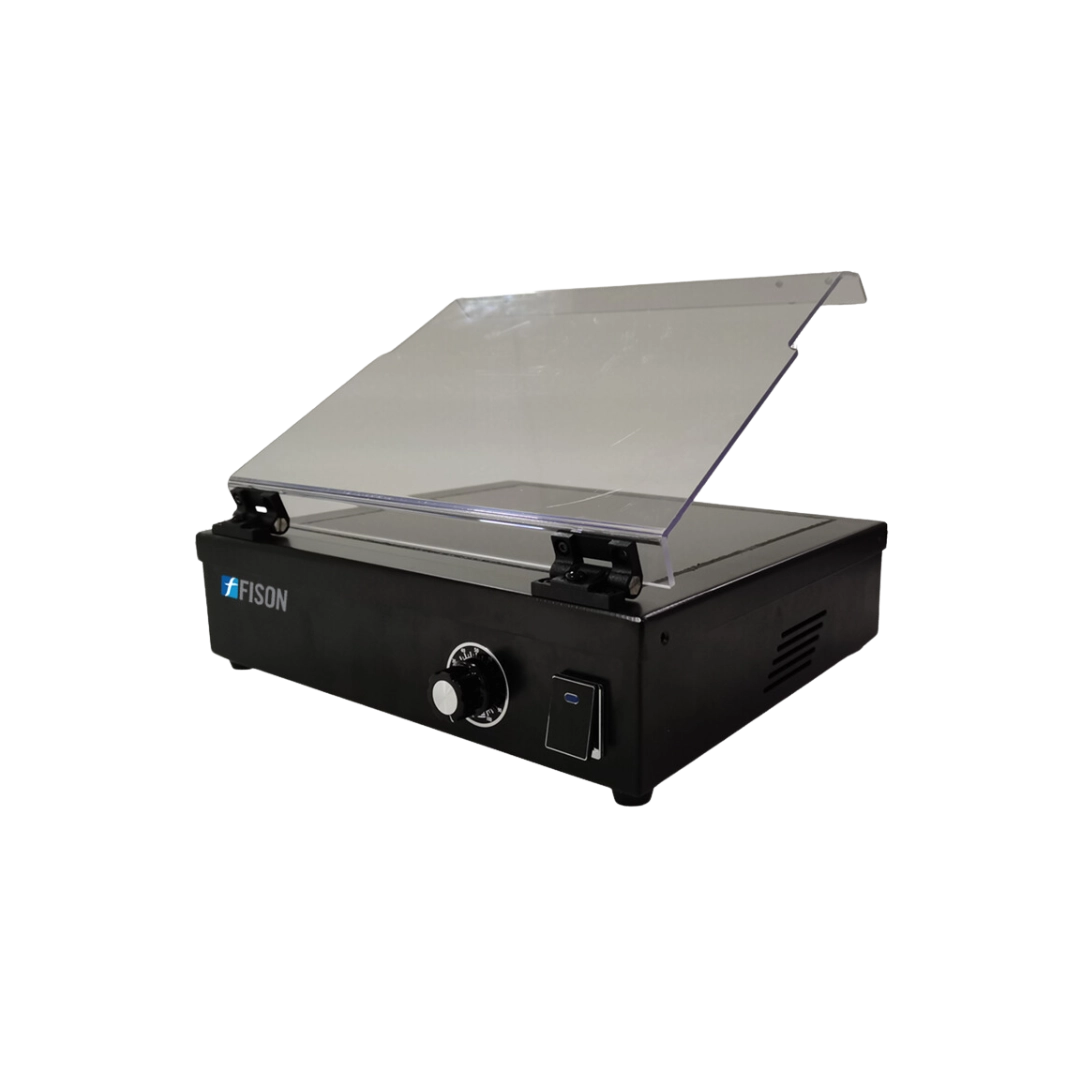

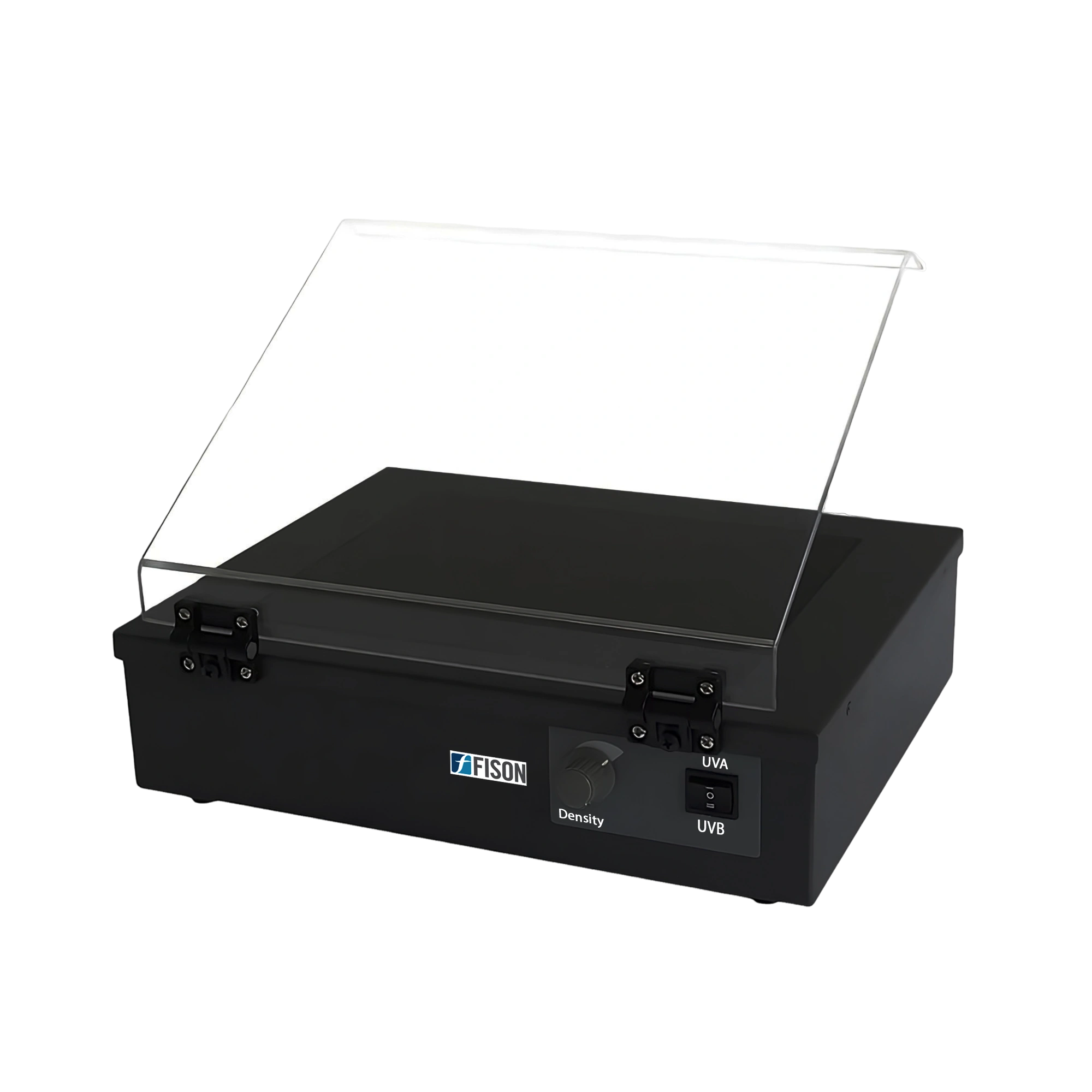

UV Trans-illuminator FM-UVT-A102
UV Trans-illuminator FM-UVT-A102 offers dual wavelengths: 302nm (peak) and selectable 365nm or 254nm for versatile and efficient gel analysis. It is equipped with an efficient UV filter system for enhanced performance and safety during analysis. This offers advanced gel viewing options for improved clarity and detail in gel documentation. Our transilluminator features an adjustable UV protection plate that protects without obstructing observation.
Specifications
| Transmission Area | 215×265mm |
| Wavelength | Dual wavelength：302nm (peak)，365nm or 254nm (peak) |
| Light Intensity | Adjustable |
| Surface | Toughened glass surface |
| Dimensions(L×W×H) | 330×280×115mm |
| Weight | 7kg |
Features
- High-performance UV light
- Safe UV protection design
- Wide illumination area
- Equipped with cooling system
- Minimal power consumption
Applications
- UV Trans-illuminator FM-UVT-A102 is used in molecular biology and laboratory research for visualizing nucleic acids and proteins stained with UV-sensitive dyes. It is typically applied in gel electrophoresis analysis, such as agarose or polyacrylamide gel imaging.
