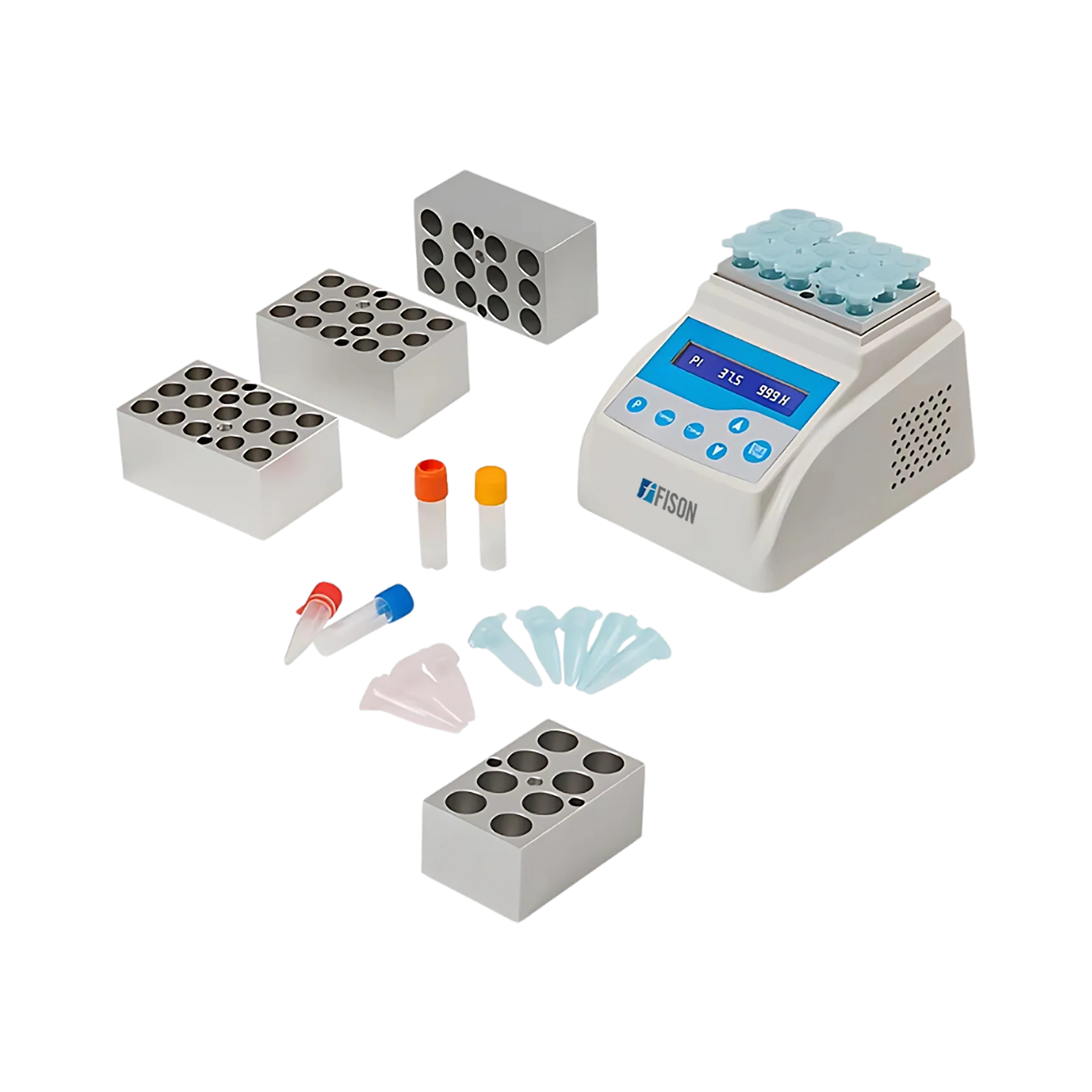

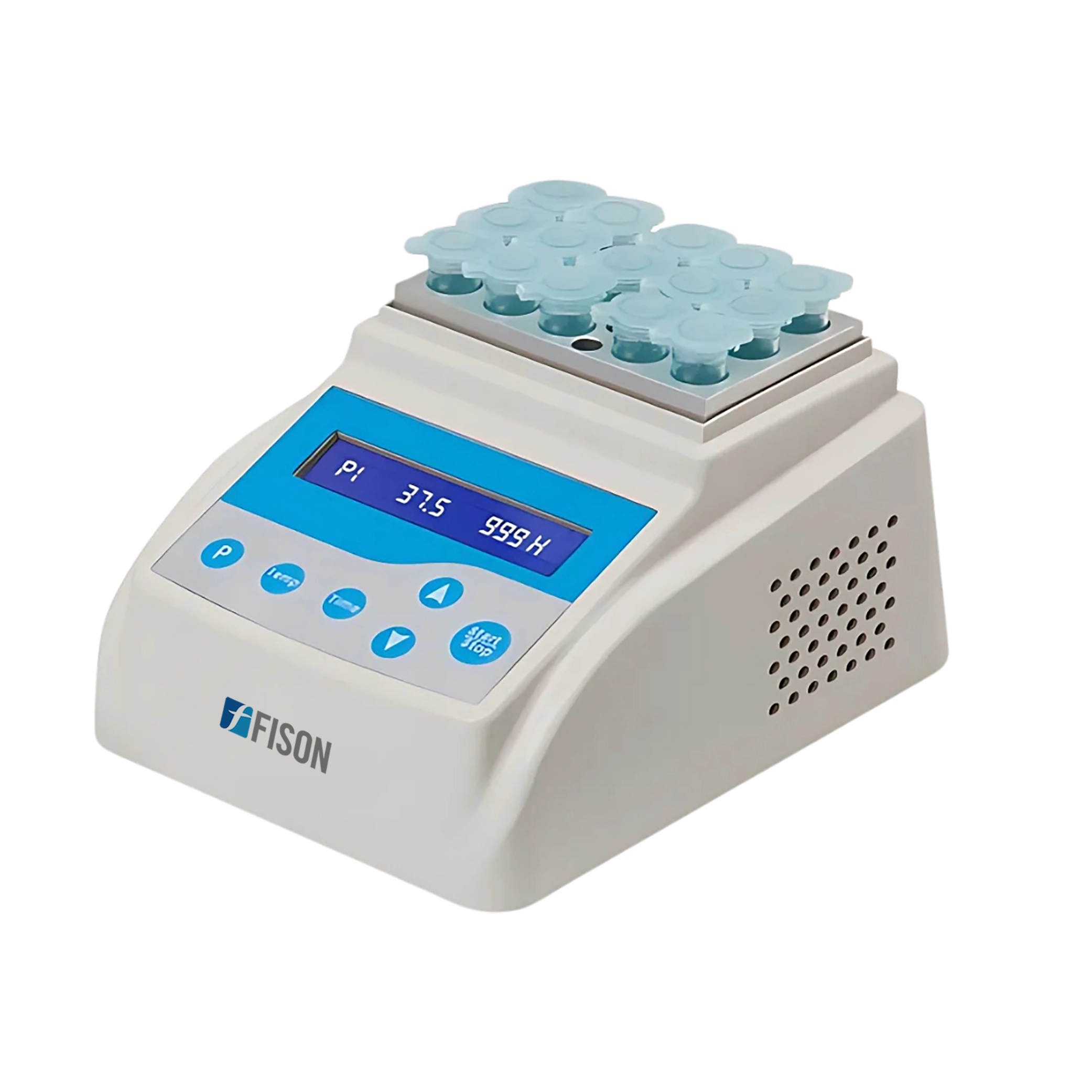

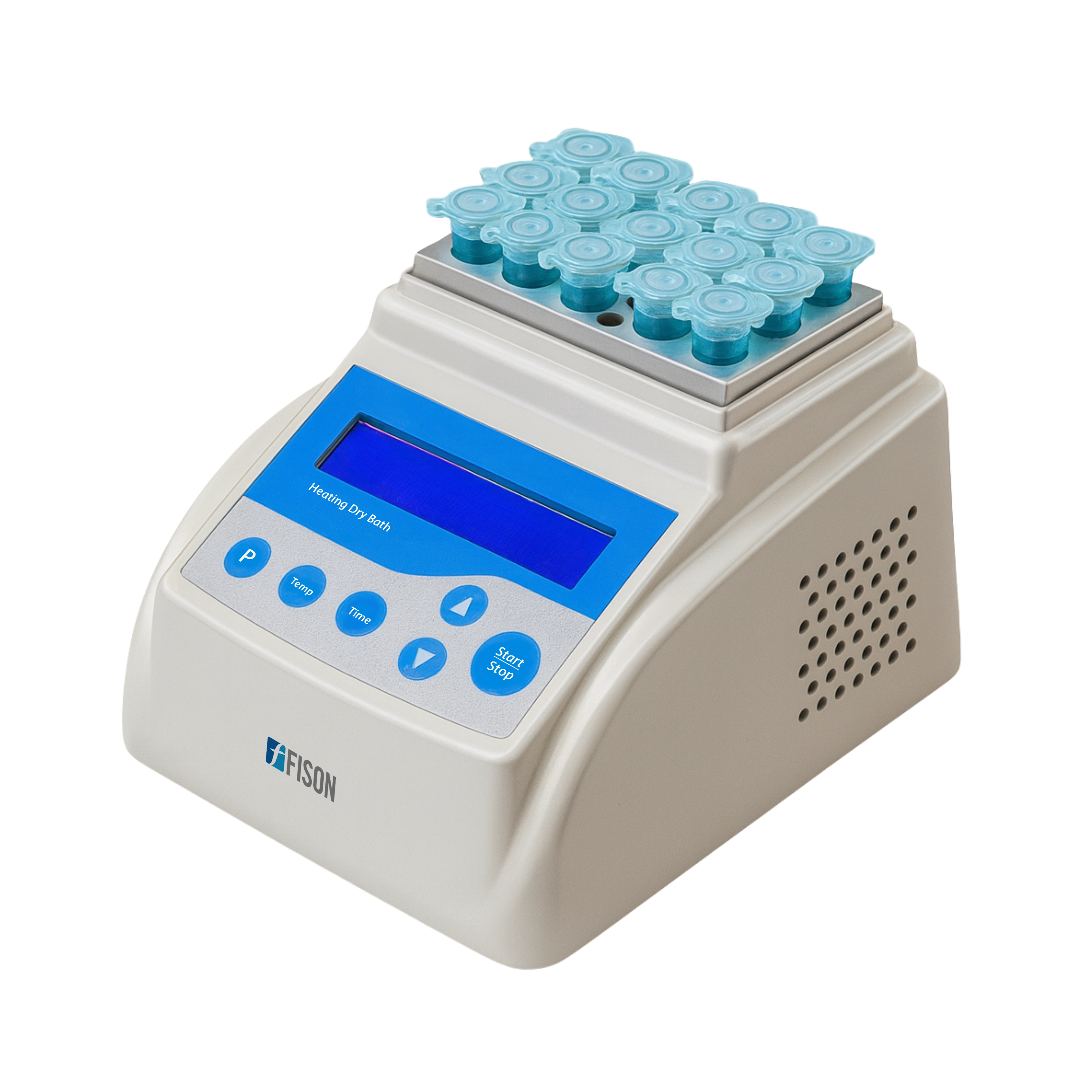

Chilling / Heating Dry Bath FM-CHB-A100
Chilling / Heating Dry Bath FM-CHB-A100 is designed with a microprocessor-controller and offers a temperature range of 0 to 100℃. It is a benchtop unit which works with a temperature accuracy of ≤±0.3°C. Developed with custom blocks that are specifically designed to fit a variety of sample holders for efficient operation. It allows users to visually monitor and assess the progress of their experiments in real-time.
Specifications
| Temperature Range | 0°C to 100°C |
| Temperature Control Range | RT -15°C to 100°C |
| Temperature Accuracy | ≤ ±0.3°C |
| Display Accuracy | 0.1°C |
| Temperature Uniformity | ≤ ±0.3°C |
| Timing Range | 1sec to 5999sec/∞ 1min to 5999min/∞ |
| Heating Time | ≤ 20min (from 25°C to 100°C) |
| Cooling Time 1 | ≤ 20min (from 100°C to 25°C) |
| Cooling Time 2 | ≤ 25min (from RT to -15°C) |
| Auto-4°C | Yes |
| Multi Points Running | Max. 5points |
| Multi Cycle | Max. 99times |
| Power Consumption | 60W |
| Power Supply | DC12V |
| Dimension (W × D × H) | 145 ×113 × 140mm |
| Weight | 1 kg |
Features
- Includes electronic calibration
- Auto heating and running operation
- Digital display
- Auto resume option
- Compatible with 24V power adapter
- UL, CSA, and CE certified power supply
Applications
- It is used for precise temperature control of samples in various experiments which require specific temperature conditions. It is finds applications in PCR, enzyme reactions, DNA/RNA extraction, and in various microbiological studies.

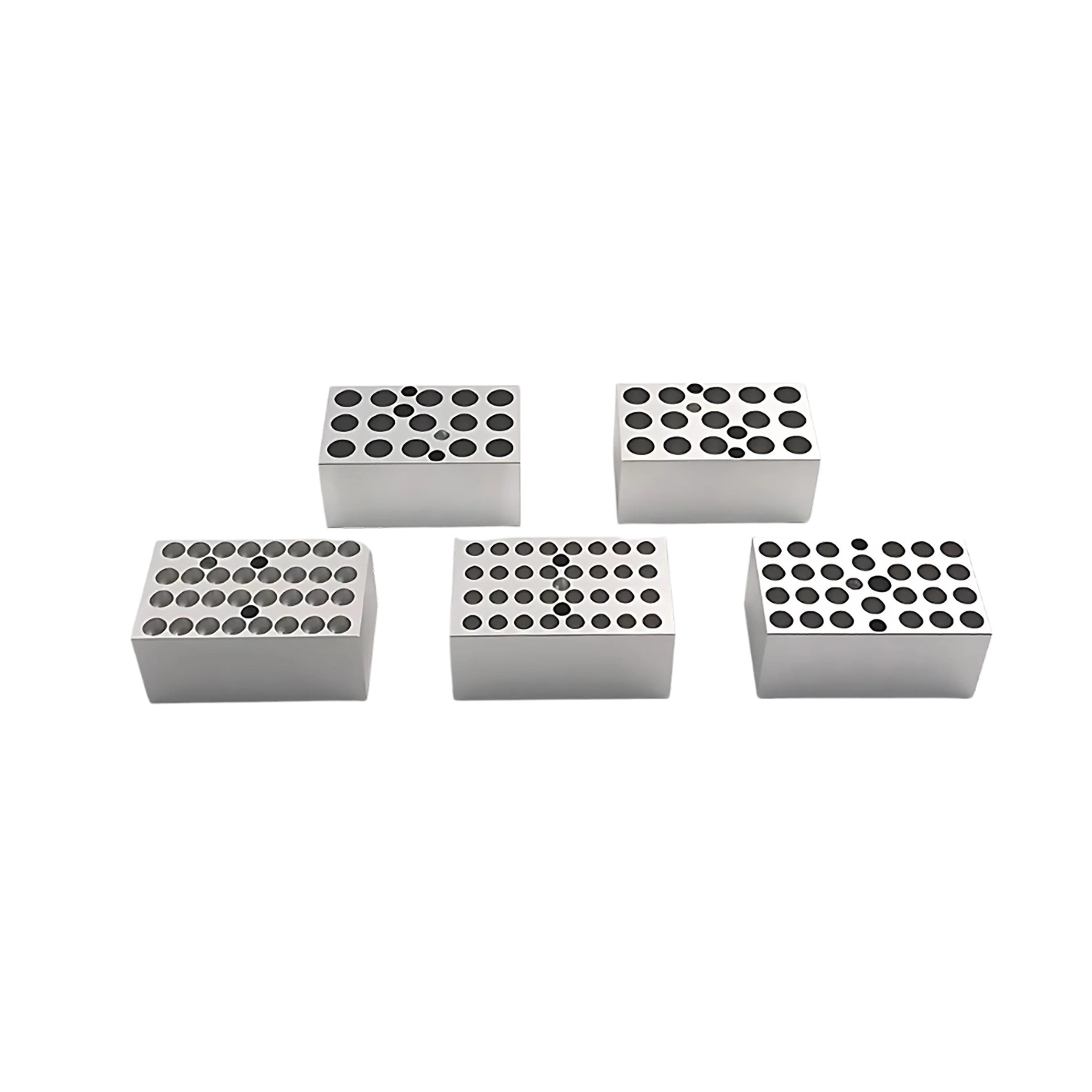

Accessories Optional
- Test Tube and Aperture: 2.0 ml × 15
1.5 ml × 15
0.5 ml × 24
0.2 ml × 32
