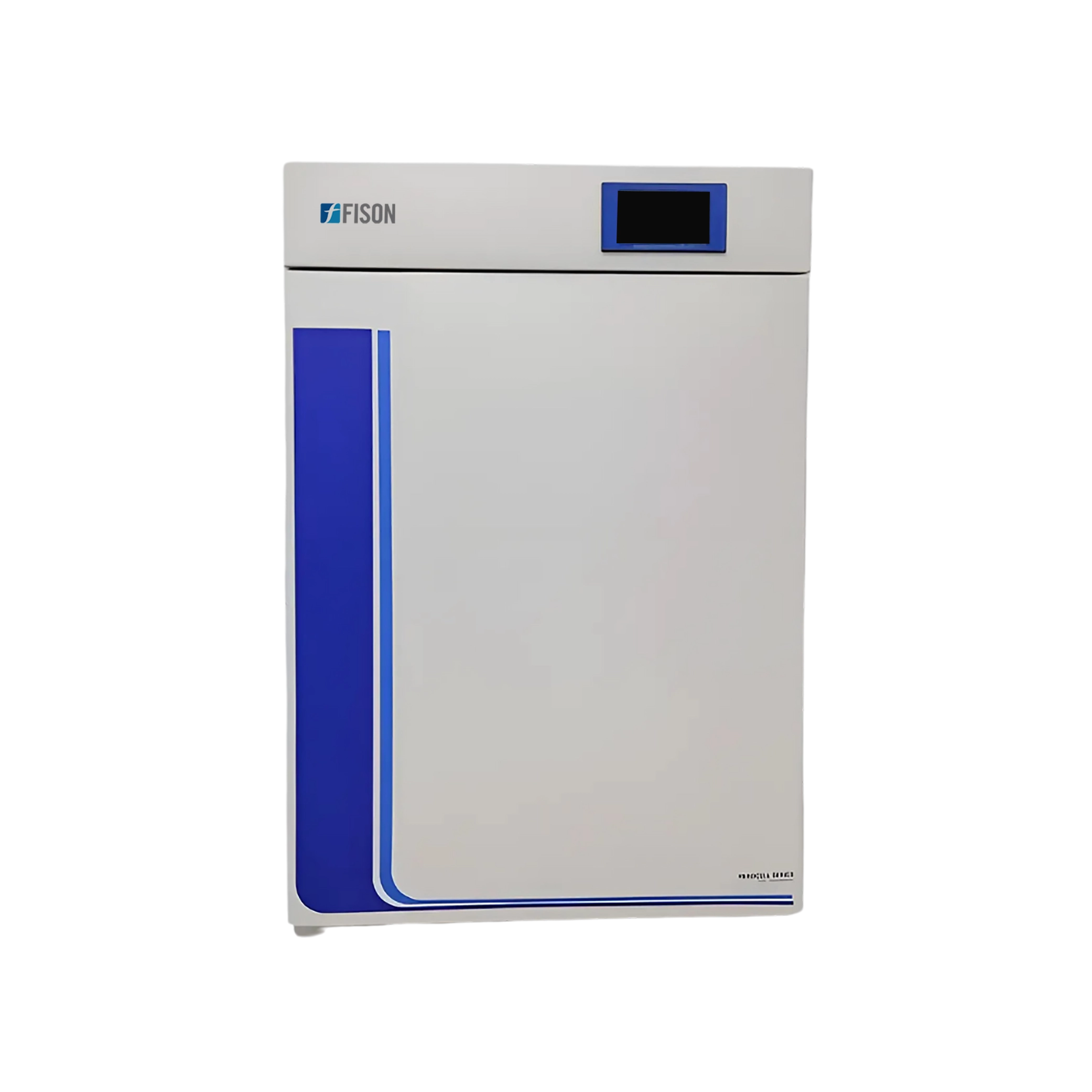

CO2 Incubator FM-CIN-A104
CO2 Incubator FM-CIN-A104 with a 185 L capacity provides an optimal environment for cell culture. Their high heat sterilization ensures thorough decontamination with temperatures. The incubator maintains a low condensation level, reducing moisture buildup. Our incubator offers a uniform cell culture environment with precise temperature and CO2 control for reliable cell growth.
Specifications
| Volume | 185 L |
| Temperature Control Range | Ambient +5 to 60°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Stability | ±0.1°C |
| Temperature Field Uniformity | ±0.3°C at 37°C |
| Timing Function | 0 to 999.9 hours |
| CO2 Measurement Principle | Infrared (IR) Detection |
| CO2 Control Range | 0 to 20 % |
| CO2 Display Resolution | 0.001 |
| CO2 Supply | 0.05 to 0.1 Mpa |
| Relative Humidity | Ambient Humidity ~95% at 37°C |
| HEPA Filtration | ISO 5 Level, 5 Minutes |
| Sterilization Method | 140°C High heat sterilization |
| Temperature Recovery Time | ≤10 min |
| CO2 Concentration Recovery Time | ≤5 min |
| Historical Data Storage | 250,000 Messages |
| Scalability | Up to 2 Units can be Stacked |
| Working Environment Temperature | 18 to 30°C |
| Maximum Power | 900 W |
| Power Supply | 115 / 230 V ± 10 %, 50 / 60 Hz |
| Internal Dimensions (L × W × H) | 674 × 526 × 675 mm |
| External Dimensions (L × W × H) | 800 × 652 × 1000 mm |
| Net Weight | 112 Kg |
| Gross Weight | 138 Kg |
Features
- Mycoplasma-free cavity surface
- ISO Class 5 HEPA filtration
- Quick air quality recovery
- Reduced airborne contaminants
- Reliable IR CO2 monitoring
Applications
- CO2 Incubator FM-CIN-A104 maintains ideal conditions for cell cultures by controlling temperature, humidity, and CO2 levels. Its high heat sterilization function eliminates contaminants for research in areas like cell biology and tissue engineering.
Accessories Optional
Stainless Steel Shelf Humidity Pan Sealing Strip HEPA Filter Access Port Filter CO2 Sensor 5-inch Touch Screen Interface Solenoid Valve Control System
