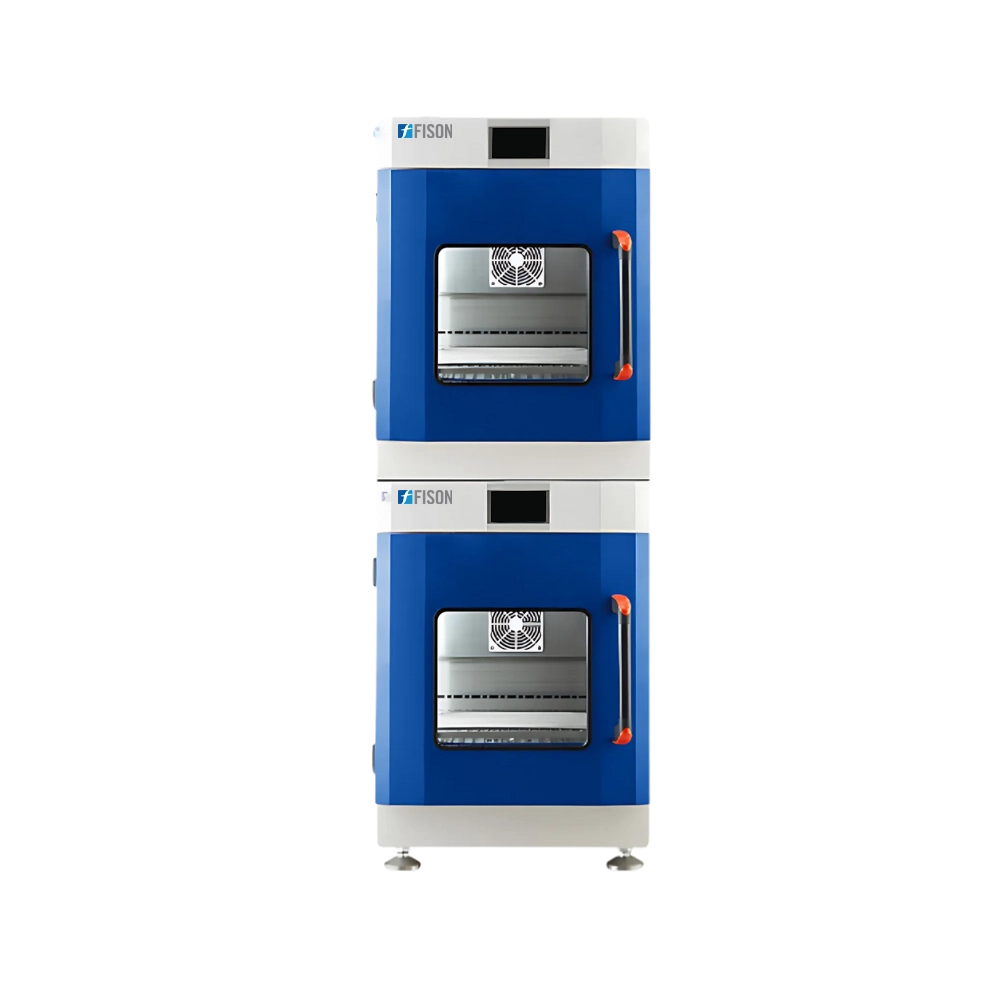

CO2 Shaking Incubator FM-CSI-A103
CO2 Shaking Incubator FM-CSI-A103 has a temperature control range from 4 to 60 °C, providing a wide range of applications. Their stainless steel interior ensures durability, and cleaning it is ideal for maintaining a sterile environment. The multi-UV sterilization capabilities effectively reduce contamination risks. Our high humidity compatibility supports optimal cell culture conditions for researchers.
Specifications
| Volume | 70 L |
| Rotation Speed | 2 to 300 rpm |
| Speed Control Accuracy | ±1 rpm |
| Shaking Throw | 50 mm |
| Shaking Motion | Orbital |
| Ambient Temperature | 5 to 35°C |
| Temperature Control Range | 4 to 60°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Distribution | ±0.3°C at 37°C |
| Temperature Sensor Principle | Pt-100 |
| Maximum Loading Capacity | 35 Kg |
| Temperature Control Mode | PID control mode |
| Sterilization Method | UV sterilization |
| CO2 Sensor Principle | Infrared (IR) |
| CO2 Control Range | 0 to 20 % |
| CO2 Display Resolution | 0.001 |
| CO2 Supply Pressure | 0.05 to 0.1 Mpa |
| Data Export Interface | USB |
| Historical Data Storage | 800,000 messages |
| Timer | 0 to 999 hours |
| Illumination | Fluorescent tube, 30 W |
| Maximum Power Consumption | 800 W |
| Power Supply | 115/230 V ±10%, 50/60 Hz |
| Tray Size | 370 × 400 mm |
| Maximum Working Height | 440 mm |
| Tray Capacity (Shake Flask) | 16 × 250 ml or 11 × 500 ml or 6 × 1000 ml or 5 × 2000 ml or 4 × 3000 ml or 2 × 5000 ml |
| Dimensions (W × D × H) | 550 × 650 × 950 mm (1 unit)550 × 650 × 1850 mm (2 units) |
| Internal Dimensions (W × D × H) | 460 × 562 × 495 mm |
| Weight | 145 Kg |
Features
- Water-Resistant Design
- Vibration-Free Startup
- Waterproof Heatless Fan
- Push-Pull Aluminum Tray
- Uniform Temperature Distribution
Applications
- CO2 Shaking Incubator FM-CSI-A103 offers precise control of temperature, CO2, and humidity with UV sterilization, ensuring contamination-free cultures. Their stackable design and built-in shaker optimize space and efficiency for cell biology and microbiology labs.
Accessories Optional
Removable Shake Tray 125 mL Flask Clamp 250 mL Flask Clamp 500 mL Flask Clamp 1000 mL Flask Clamp 2000 mL Flask Clamp Adjustable Angle Test Tube Rack (50 mL×15; 15 mL×28) Adjustable Angle Test Tube Rack (15 mL×60) Adjustable Angle Test Tube Rack (50 mL×30)
