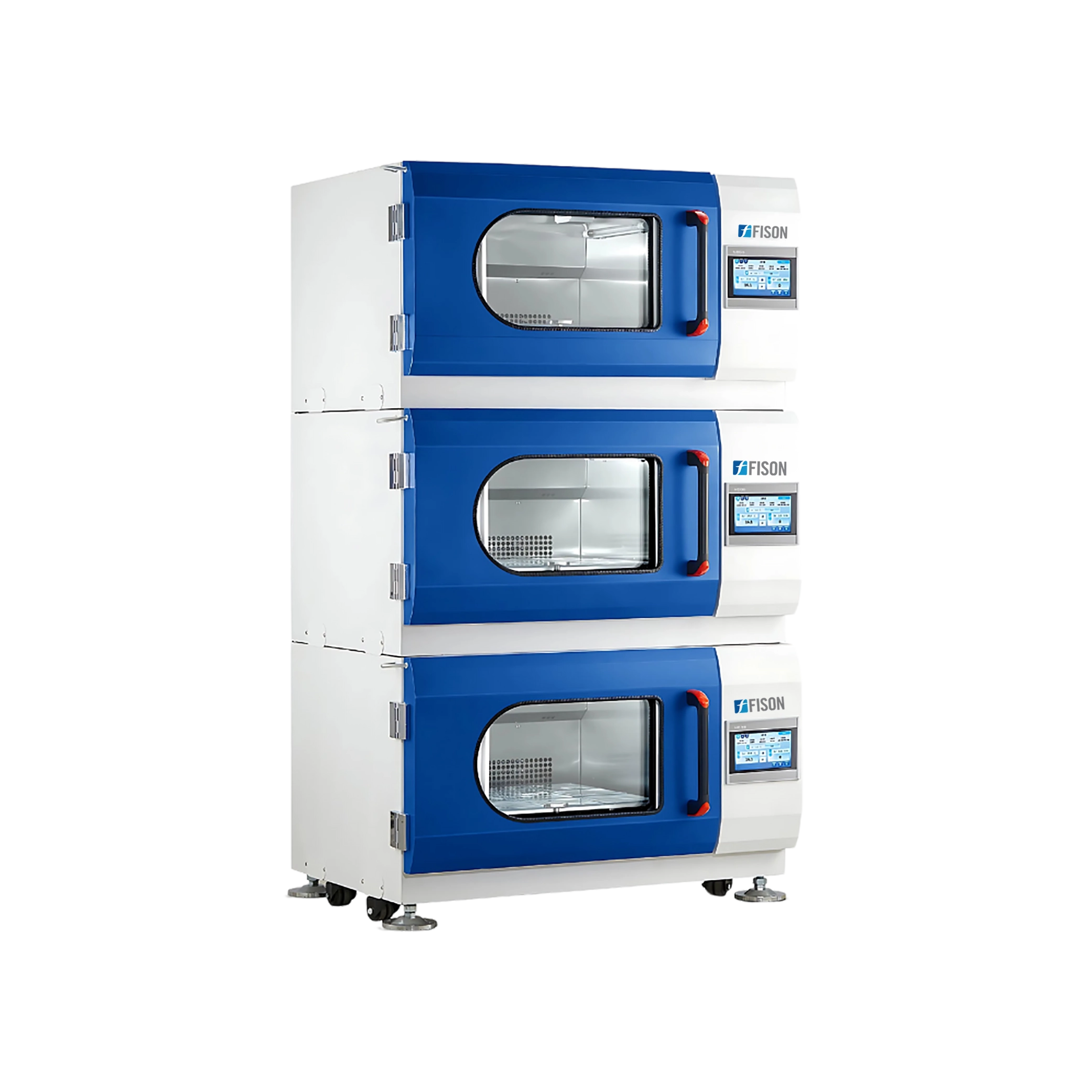

CO2 Shaking Incubator FM-CSI-A105
CO2 Shaking Incubator FM-CSI-A105 has a temperature display resolution of 0.1 °C for accurate monitoring with precise control. They feature an anti-temperature overshoot system to protect sensitive samples from heat damage. They feature automatic power recovery, ensuring smooth operation after power interruptions. Our incubator safe door interlock system maintains a secure environment by preventing accidental exposure to external conditions.
Specifications
| Volume | 160 L |
| Rotation Speed | 2 to 300 rpm |
| Speed Control Accuracy | ±1 rpm |
| Shaking Throw | 50 mm |
| Shaking Motion | Orbital |
| Ambient Temperature | 5 to 35°C |
| Temperature Control Range | 4 to 60°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Distribution | ±0.3°C at 37°C |
| Temperature Sensor Principle | Pt-100 |
| Maximum Loading Capacity | 35 Kg |
| Temperature Control Mode | PID control mode |
| Sterilization Method | UV sterilization |
| CO2 Sensor Principle | Infrared (IR) |
| CO2 Control Range | 0 to 20 % |
| CO2 Display Resolution | 0.001 |
| CO2 Supply Pressure | 0.05 to 0.1 Mpa |
| Data Export Interface | USB |
| Historical Data Storage | 800,000 messages |
| Timer | 0 to 999 hours |
| Illumination | Fluorescent tube, 30 W |
| Maximum Power Consumption | 1300 W |
| Power Supply | 115/230 V ±10%, 50/60 Hz |
| Tray Size | 288 × 404 mm |
| Maximum Working Height | 340 mm |
| Tray Capacity of Micro Titer Plates | 32 (24, 48 and 96 well plate) |
| Dimensions (W × D × H) | 1000 × 725 × 620 mm (1 unit)1000 × 725 × 1170 mm (2 units)1000 × 725 × 1720 mm (3 units) |
| Internal Dimensions (W × D × H) | 720 × 632 × 475 mm |
| Weight | 145 Kg |
Features
- High-Speed Stability
- Modular Growth System
- Flexible Workflow Options
- Resistant to Accidental Spills
- Condensation-Free Observation
Applications
- CO2 Shaking Incubator FM-CSI-A105 offers precise control of temperature, CO2, and humidity with UV sterilization, ensuring contamination-free cultures. Their stackable design and built-in shaker optimize space and efficiency for cell biology and microbiology labs.
Accessories Optional
Removable Shake Tray 125 mL Flask Clamp 250 mL Flask Clamp 500 mL Flask Clamp 1000 mL Flask Clamp 2000 mL Flask Clamp Adjustable Angle Test Tube Rack (50 mL×15; 15 mL×28) Adjustable Angle Test Tube Rack (15 mL×60) Adjustable Angle Test Tube Rack (50 mL×30)
