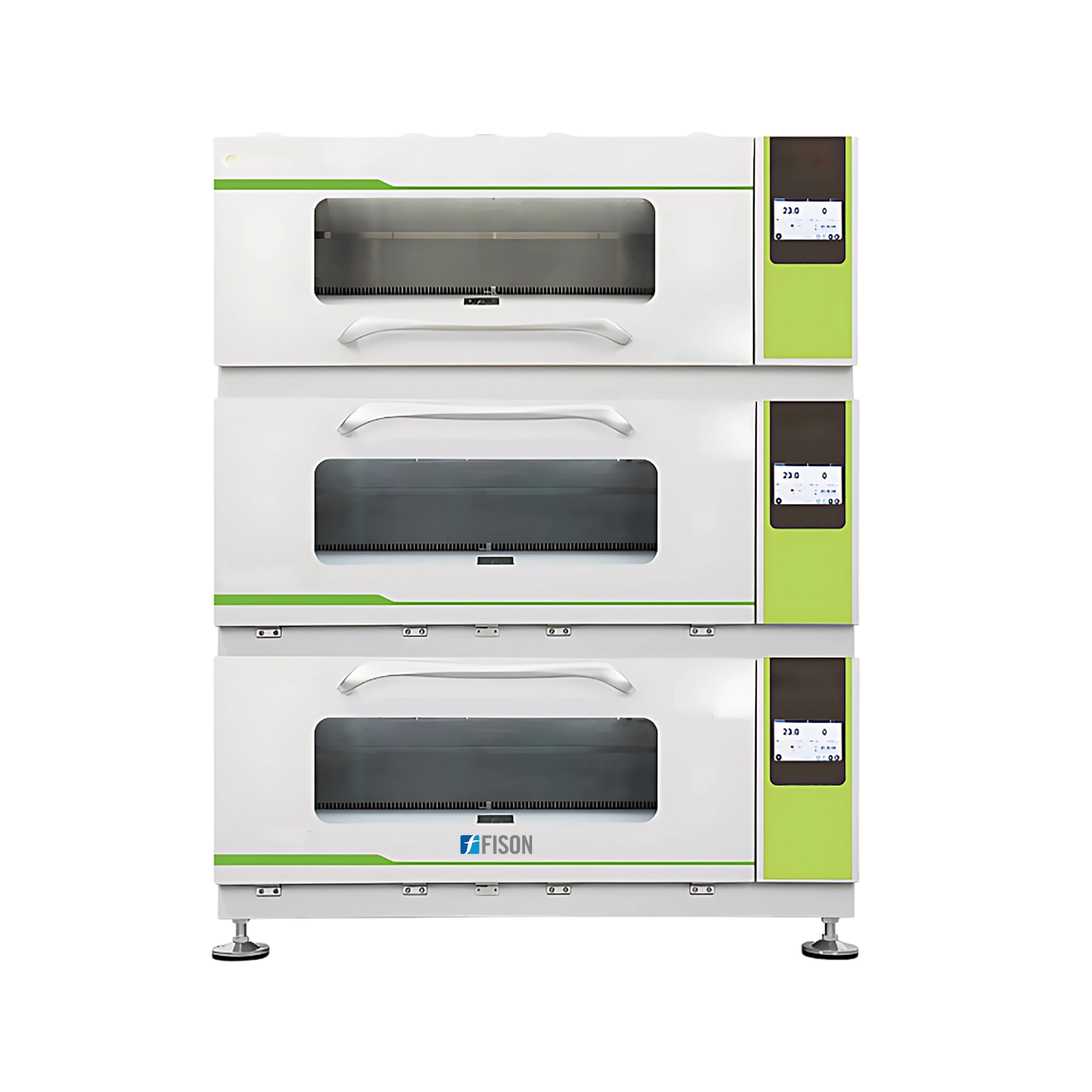

CO2 Shaking Incubator FM-CSI-C114
CO₂ Shaking Incubator FM-CSI-C114 functions at a temperature range of 4 °C to 60 °C, ensuring stable performance under ambient conditions of 23 °C to 25 °C. It offers a shaking speed of up to 250 rpm (no load) on the top stack, ensuring efficient and uniform sample mixing. It accommodates a maximum clamp capacity of 60 clamps for 250 mL, 40 for 500 mL, 24 for 1000 mL, and 15 for 2000 mL flasks per unit, supporting a wide range of sample volumes. Our incubator has a digital display for real-time operation and monitoring.
$19,656.00
Specifications
| Shaking Speed (no load) | Top stack max. 250 rpm |
| Speed Accuracy | ±1 rpm |
| Max Clamp Capacity | 250 mL × 60, 500 mL × 40, 1000 mL × 24, 2000 mL × 15 (per unit) |
| Shaking Amplitude | Φ26 mm (standard), Φ50 mm (optional) |
| Temperature Range | 4 ℃ to 60 ℃ (Ambient temp. 23 to 25 ℃) |
| Temperature Accuracy | ±0.1 ℃ |
| Temperature Uniformity | ±0.6 ℃ (@ 37 ℃) |
| Display | LCD Touch Screen |
| Convection Method | Forced-convection heat transfer |
| Temperature Control | PID (Proportional Integral Derivative) |
| Timer Range | 1 minute to 999 hours |
| Interchangeable Platform Size | 930 mm × 530 mm |
| Operational Noise | < 55 dB |
| Loading Height | 345 mm |
| Power Supply | AC 220 V ±10 %, 50 Hz / 60 Hz |
| Power Consumption | 1200 W |
| Fuse Rating | 10 A and 15 A |
| Dimensions (L × W × H) | 1363 × 813 × 1774 mm |
| Weight | 675 kg |
Features
- Memory storage feature
- Robust build
- Dual data ports
- Auto-shutoff feature
- Quiet operation
Applications
- CO2 Shaking Incubator FM-CSI-C114 is widely applied in cell culture, fermentation, hybridization, biochemistry, and cell tissue study.
