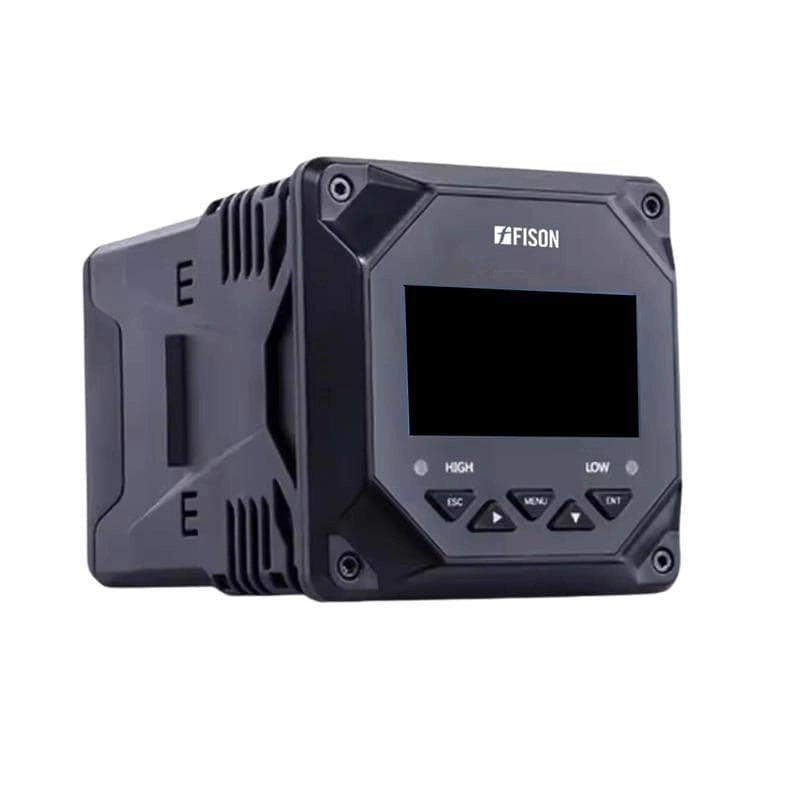

Conductivity Analyzer FM-CAN-A100
Conductivity Analyzer FM-CAN-A100 offers high precision EC measurements, ranging from 2.0 to 2000µS/cm. Operates within a temperature range of -10 to + 1300C, ensuring reliable performance in diverse environments. It features multi-parameter display that provides EC, TDS and temperature in real-time. Our analysers feature automatic temperature compensation, which adjusts readings based on fluctuations, maintaining consistent measurement accuracy.
Specifications
| Measuring Range (EC) | 2.0 to 2000µS/cm (with K = 1.0 electrode) |
| Measuring Range (TDS) | 1.0 to 1000 ppm |
| Accuracy | ±2% FS |
| Temperature range | -10 to +130 0C |
| Temperature Accuracy | ±0.5 0C |
| Relay alarm | 250 VAC/3A |
| Current Output | Isolated transmission 4 to 20 mA output, maximum loop 750Ω,≤±0.2%FS |
| communication | RS485 (Compatible with MODBUS RTU) |
| Power Supply | AC 220V±10%, 50Hz |
| Dimension (L×B×H) | 100×100×150 mm |
| Packaging Dimension (L×B×H) | 380×280×230 mm |
| Net Weight | 0.65kg |
| Gross Weight | 4kg |
Features
- IP54 rated protection
- Isolated output
- Crash-prevention watchdog program
- Two-way relay EC TDS temperature control
Applications
- Our Conductivity Analyser can be used across thermal power plants, chemical processing, environmental monitoring and water treatment facilities.
Accessories

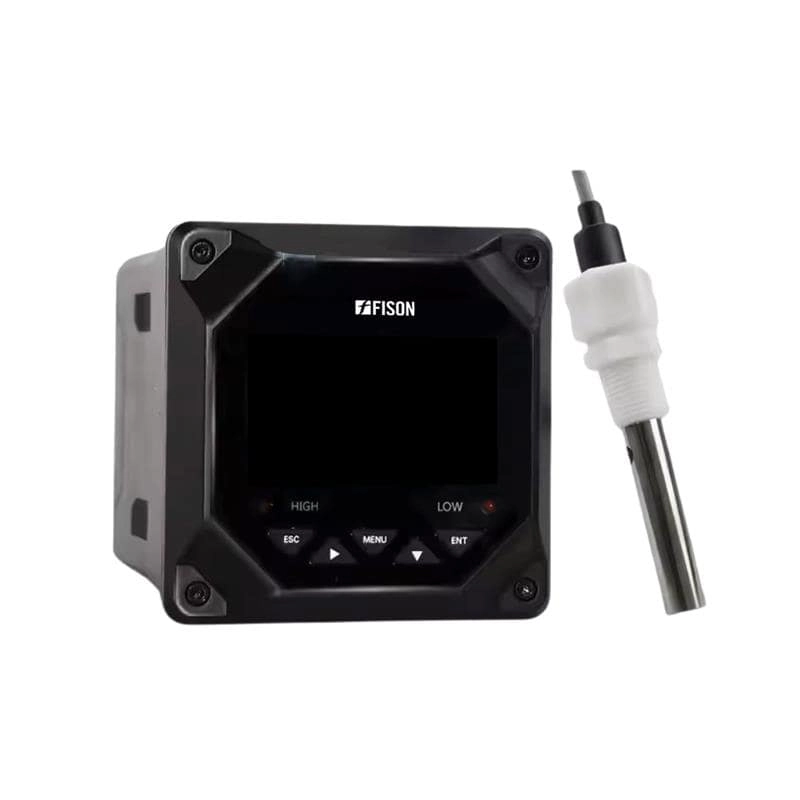

Sensor (1.0 SS Electrode)
Electrode Constant (K)
1.0
Connection Method
1/2NPT
Material
304SS
Cable
5m (Standard)
Frequently Asked Question
1: What type of electrode is compatible with the analyzer?
It comes with a K = 1.0 constant 304 stainless steel electrode. The connection uses a 1/2 NPT fitting, and it includes a 5-meter cable. Only use compatible sensors for accurate results.
2: What makes the FM-CAN-A100 unique compared to other models?
Notable features include wide EC range (2.0–2000 µS/cm), automatic temperature compensation, crash-prevention watchdog program, two-way relay control for EC, TDS, and temperature, RS485 with MODBUS RTU protocol.
3: How durable is this analyzer in tough conditions?
It’s IP54-rated for splash and dust protection, housed in a robust body suitable for industrial settings.
4: How do I set up Conductivity Analyzer FM-CAN-A100?
Mount the analyzer securely, connect the 1/2 NPT 304SS conductivity sensor, and power the unit with AC 220V ±10%, 50Hz. The display will show EC, TDS, and temperature readings in real-time. Ensure proper immersion and sensor connection before operation.
5: What is Fison’s Conductivity Analyzer used for?
Our Conductivity Analyzer measures the ability of a solution to conduct electrical current, which reflects the concentration of dissolved salts, ions, or chemicals in water. It's widely used in water treatment, power plants, pharmaceuticals, chemical processing, and environmental monitoring.
6: How do I maintain a conductivity sensor?
Rinse the sensor regularly with deionized water, avoid scrubbing the electrode surface harshly, check for buildup or scale in high-TDS water.
