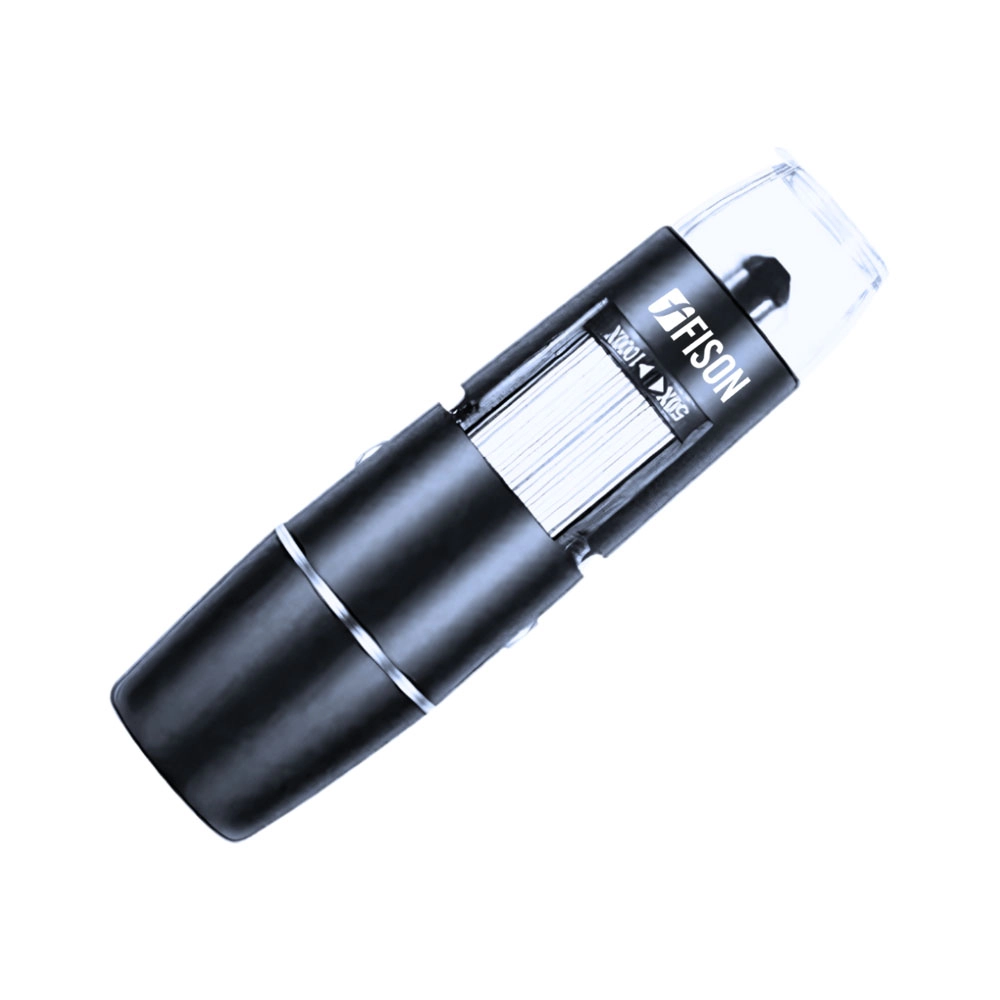

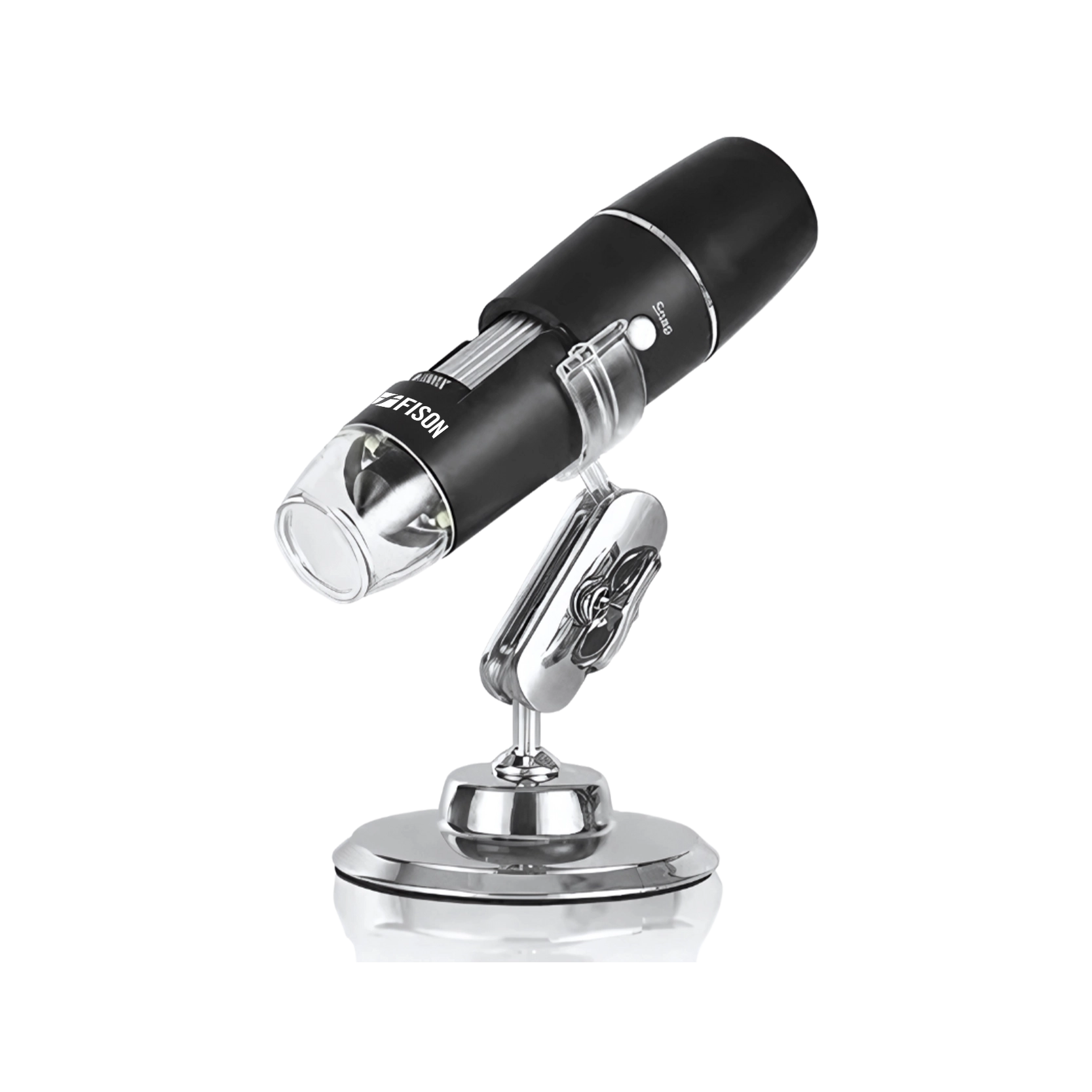

Handheld Digital Microscope FM-HDM-A100
Handheld Digital Microscope FM-HDM-A100 with 0X to 1000X magnification delivers ultra-precise imaging for detailed inspections. Its 5G+IR lens structure ensures superior clarity and reduces distortion. It is equipped with 8 high-brightness adjustable LED lights for enhanced visibility. It supports manual focus adjustments to fine-tune the image clarity to help achieve accurate magnification.
Specifications
| Magnification | 0X to 1000XL |
| Lens structure | 5G+IR |
| Lens angle | 16o (depends on the lens) |
| Working temperature | 0 oC to 40 oC |
| Storage temperature | 10 oC TO 60 oC |
| Working humidity | 30 TO 60 % RH |
| Storage humidity | 10 to 80 % RH |
| Working current | 270mA |
| LED Quantity | 8 SMD3528 high brightness white lights (adjustable brightness) |
| Focus range | 0 to 40 mm |
| Focusing method | Manual Adjustment |
| Sensor size | 1/6.5 |
| Signal noise ratio | 45 db. |
| Sensitivity | 3V/lux-sec |
| Video recording format | MP4 video |
| Resolution | 640×480 |
| Shooting image format | JPG |
| Work range | More than 90 minutes ( fully charged state, battery life also affects working hours) |
| Charging requirements | DC-5V/1A |
| Wi-Fi working environment | Android 5.0 and above system, IOS 8.0 and above systems |
| Wi-Fi working environment supporting device requirements | Supports 2.4GHz (8201.1 b/g/n) wireless data transmission equipment |
| Battery capacity | 500 mA, built-in battery |
| Power supply mode | 650mAh built-in lithium battery |
| Dimension (L×B×H) | 14.3×9.8×4.6 cm |
| Packaging dimension (L×B×H) | 50.5×30.5×25.5 cm |
| Weight | 200g |
Features
- Compact and lightweight
- Long battery life
- Wireless Wi-Fi connection
- High resolution MP4 recording
Applications
- Fison’s Digital Microscope can be widely used in laboratories, industrial inspections, scientific research and educational purposes.
Accessories
Microscope body
Bracket
Instruction manual
Micrometer
USB data cable
Wi-Fi small blue box
