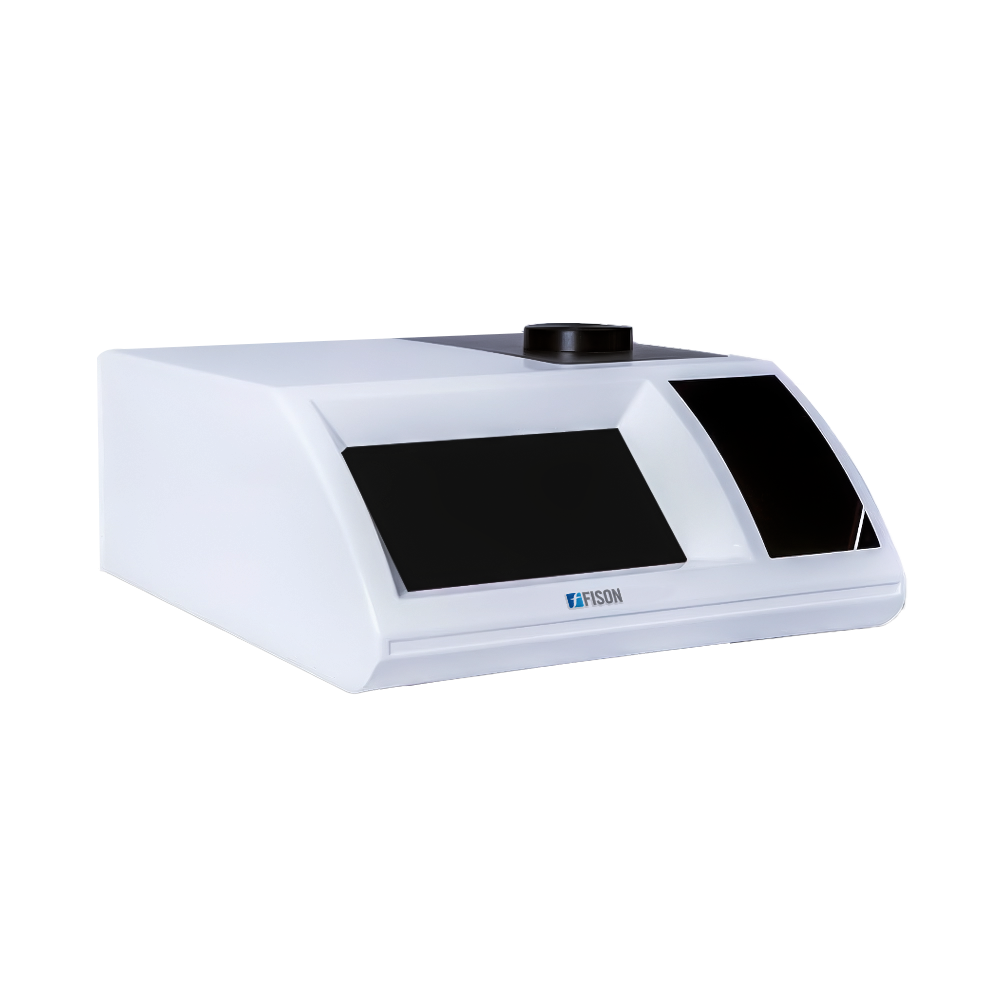

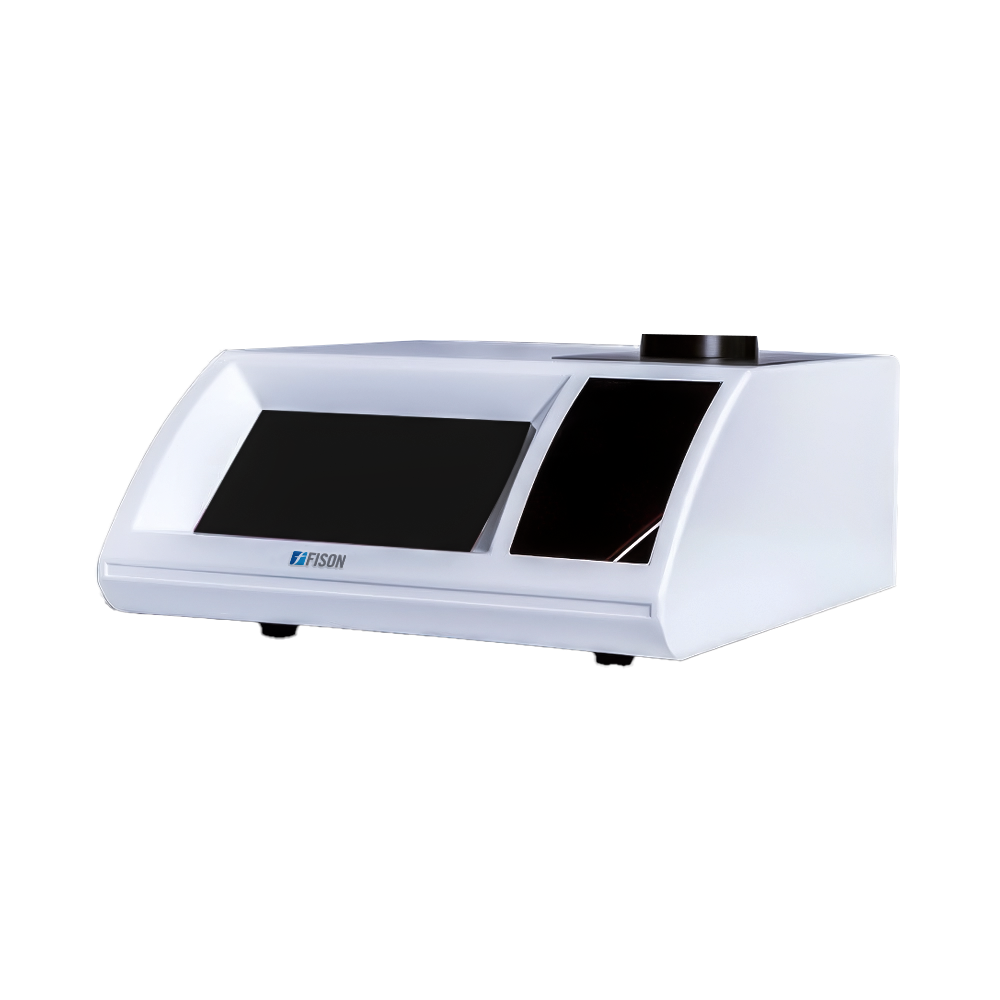

Auto Digital Refractometer FM-ADR-A100 is an automated, benchtop unit comprised with high resolution CCD detector, offers refractive index measuring range of 1.30000 to 1.70000 and brix measurement of 0 to 100%. With 5 to 80°C of temperature control range and high measuring resolution up to 0.00001 nD/ 0.01% Brix, features sapphire glass prism and built-in Peltier temperature control system. Designed with LED light source and 7-inch color touch screen, has LINUX operating system along with 32 GB of data storage capacity. With interface communication via RS232, USB, SD card, U-disk, internet and Wi-Fi, this refractometer also supports compliance with FDA 21 CFR part 11.
$13,300.00
| Measuring range | 1.30000 to 1.70000 nD |
| Brix range | 0 to 100% |
| Temperature measure range | 0 to 100°C |
| Temperature control range | 5 to 80°C |
| Temperature accuracy | ± 0.02°C |
| Measured value error | ± 0.0001 nD |
| Measured value resolution | 0.0001 / 0.00001 nD |
| Brix error | ± 0.1% |
| Brix resolution | 0.1% / 0.01% |
| Minimum sample volume | 3 ml |
| Detector | High resolution CCD detector |
| Measuring prism | Sapphire glass |
| Temperature control system | Built-in Peltier temperature control system |
| Display | 7-inch color touch screen |
| Light source | LED light source |
| Operating system | LINUX |
| Data storage | 32 GB |
| Interface | RS232, USB, SD card, U-disk, Internet and Wi-Fi |
| Power supply | 110 to 240 V (12 V, 10 A) |
| Power | 45 W |
| Dimension (W×D×H) | 365 × 300 × 150 mm |
| Packaging dimension (W×D×H) | 500 × 420 × 330 mm |
| Net weight | 8 kg |
| Gross weight | 10 kg |
