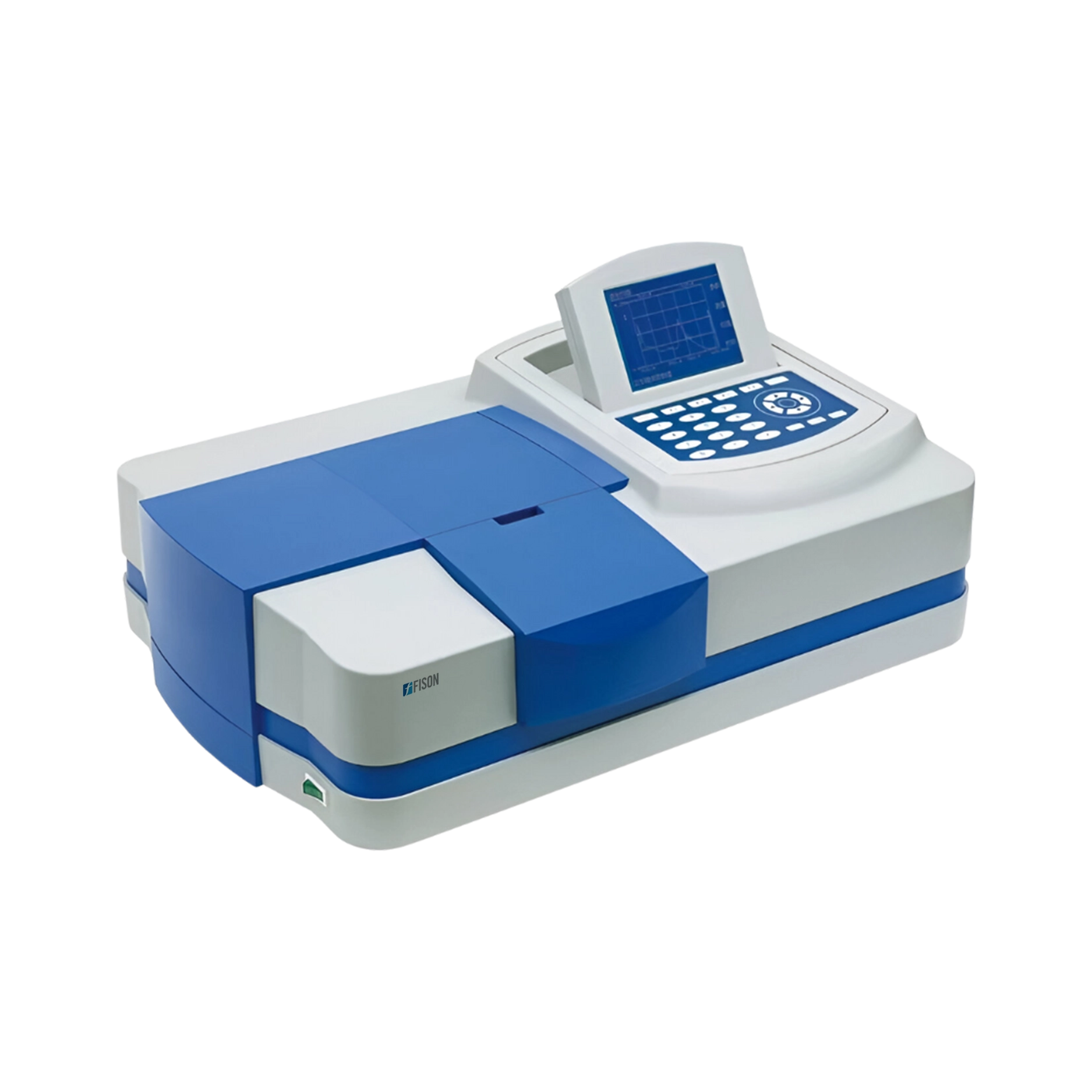

Double Beam Scanning UV-Visible Spectrophotometer FM-UVS-D300
Double Beam Scanning UV-Visible Spectrophotometer FM-UVS-D300 offers exceptional accuracy and reliability with a wavelength range of 190-1100nm. User-friendly interface, silicon photo-diode detector, and high-stability performance enhance its efficiency. Supports advanced measurement methods like wavelength scan, time scan, and derivative analysis for versatile applications. Its fully automated design ensures effortless and user-friendly operation.
Specifications
| Wavelength range | 190 to 1100 nm |
| Spectral bandwidth | 2 nm |
| Wavelength accuracy | ±0.3 nm |
| Wavelength reproducibility | ≤0.15 nm |
| Photometric system | Double beam, auto scan, dual detectors |
| Photometric accuracy | ±0.3T (0 to 100%T) ±0.002A (0 to 0.5A) ±0.004A (0.5A to 1A) |
| Photometric reproducibility | ≤0.15%T |
| Photometric range | -0.3 to 3.5A |
| Working mode | T, A, C, E |
| Stray light | ≤0.05%T (Nal, 220 nm; NaNO2, 360 nm) |
| Baseline flatness | ±0.002A |
| Stability | ≤0.001A/h (at 500 nm, after warming up) |
| Noise | ±0.001A (at 500nm, after warming up) |
| Detector | Silicon photodiode |
| Display | 6-inch high light blue LCD |
| Power consumption | 180W |
| Power supply | AC 220V/50Hz, 110V/60Hz, |
| Dimension (L×B×H) | 630×470×210 mm |
| Weight | 26 kg |
Features
- 6-inch LCD screen
- USB PC connectivity
- Dual beam auto-scan system
- Advanced optics
Applications
- Fison’s Spectrophotometer can be widely used for precise spectroscopic analysis across various fields such as biochemical research, pharmaceutical production, environmental monitoring, food industry, clinical diagnostics, and sanitation.
Accessories
16 glass cells
4 quartz cells
PC software
