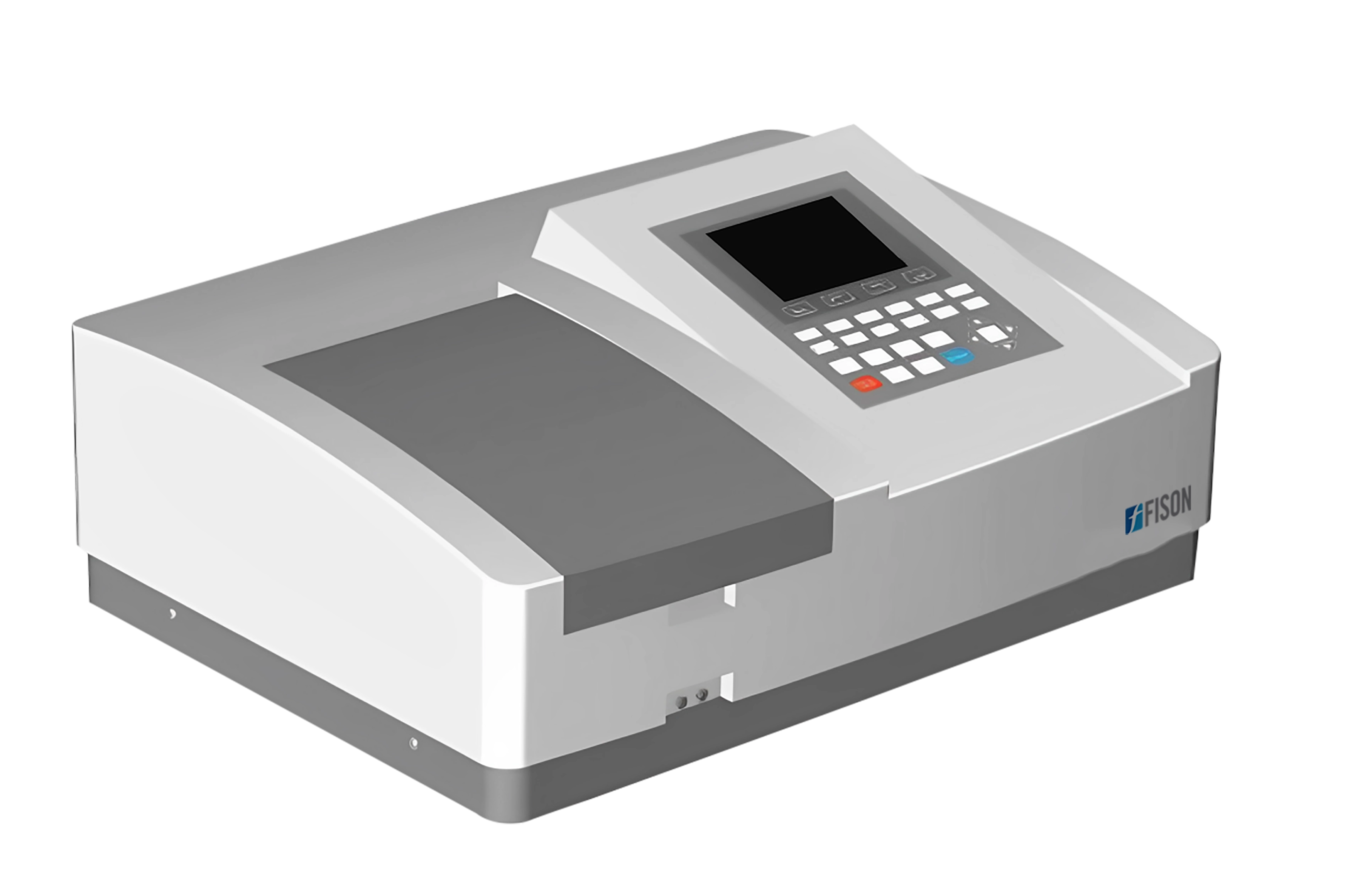

Fison Double Beam UV Visible Spectrophotometer FM-UVS-C102 features a wavelength range of 190 to 1100 nm, ±0.3 nm wavelength accuracy, and adjustable spectral bandwidth from 0.5 to 4 nm for versatile UV-Vis measurements. Designed as a dual beam UV-Vis spectrophotometer, it integrates a 1200 lines/mm grating optical system, tungsten and deuterium lamps, and dual silicon photodiode detectors for simultaneous sample and reference measurement. The unit provides adjustable scanning speeds up to 3000 nm/min, built-in UV-Vis analyst software, and result storage features for efficient spectral analysis.
$9,437.00
| Wavelength range | 190 nm to 1100 nm |
| Spectral bandwidth | 0.5, 1, 2 and 4 nm |
| Optical system | Double beam, grating 1200 lines / mm |
| Wavelength accuracy | ± 0.3 nm |
| Wavelength repeatability | 0.2 nm |
| Scanning mode | High, Medium and Low (Adjustable) |
| Maximum scanning speed | 3000 nm / min |
| Photometric range | T: 0 to 200% , A: (-0.3) to 3 |
| Photometric accuracy | T: ≤ ±0.5%, A: ±0.005 % @ 1 A |
| Light source | Tungsten and deuterium lamp (pre-aligned) |
| Stray light | ≤ 0.05 % T @ 220, 340 nm |
| Stability | ±0.002 A/h @ 500 nm |
| Display | 5 inches LCD (320 × 240 dots) |
| Baselines flatness | ± 0.001 A |
| Standard cell holder | Standard 10 mm single cell holder (2 pcs) |
| Sample compartment | Standard 10 mm path length cuvette |
| Detector | Silicone photodiode |
| Output | USB port and parallel port (printer) |
| Power requirement | AC 110 / 220 V, 50 / 60 Hz |
| Dimensions (W × D × H) | 600 × 450 × 200 mm |
| Weight | 22 kg |
Double Beam UV Visible Spectrophotometer FM-UVS-C102 is designed for clinical, pharmaceutical, and biochemical laboratory workflows. It supports routine analytical procedures, including quantitative analysis, kinetics studies, wavelength scanning, multi-wavelength measurements, and DNA/protein analysis.
Printer
Fison Double Beam UV Visible Spectrophotometer offers a wavelength range of 190 to 1100 nm, wavelength accuracy up to ±0.5 nm, and adjustable spectral bandwidth options from 0.5 to 5 nm. Designed as a lab spectrophotometer, it features a double-beam optical system that supports stable absorbance and transmittance measurements with reduced measurement variations. USB and printer connectivity enable efficient data transfer and reporting, while advanced optical components provide consistent spectral analysis performance.
