Drying oven FM-DO-A101

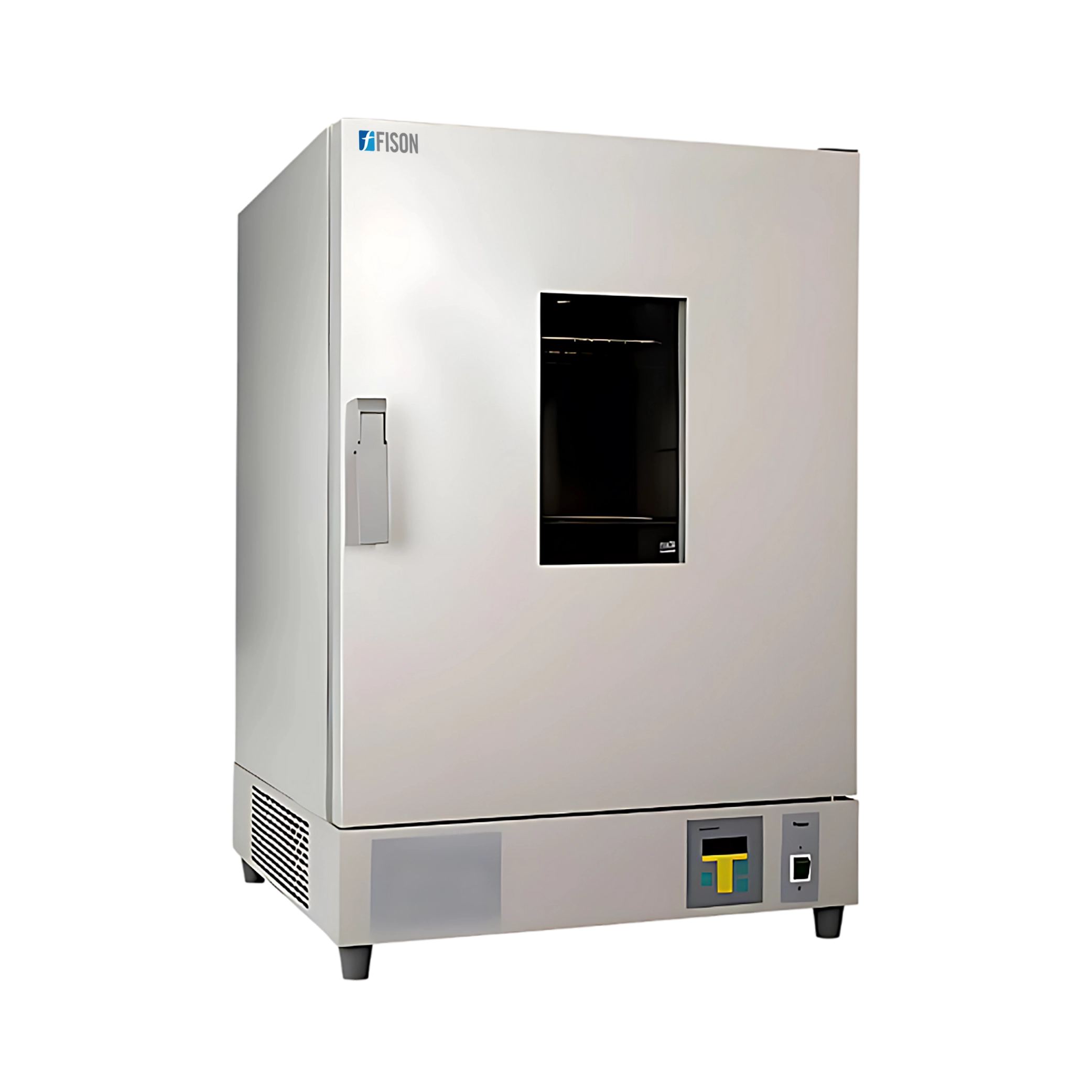

Drying oven FM-DO-A101 is a floor standing type oven with 70 L chamber capacity. Superior temperature uniformity controlled by PID microprocessor. It provides fast ramping rate and stability during operation. It comes with ambient temperature + 10°C to 200°C temperature range and platinum gold resistor PT100 temperature sensor. Equipped with stainless steel chamber, outer shell of steel with plastic coating and three layer toughened glass observation window. It is suitable for industrial and mining enterprises, laboratories and scientific research institutes for desiccation, torrefaction, wax-melting and sterilization.
$1,213.00
Specifications
| Chamber volume | 70 L |
| Method | The aplomb forces convection |
| Temperature range | Ambient temperature + 10 to 200°C |
| Temperature accuracy | ±1 at 100°C |
| Temperature fluctuation | ± 1°C |
| Temperature uniformity | ± 2.5°C |
| Temperature controller | (The PID microprocessor controls, touch type, numeral manifestation) |
| Temperature sensor | PT100 (Platinum gold resistor PT100) |
| Timer | Wait on time, wait off time (Maximum: 99 h, Minimum: 1 min) |
| Environmental condition | Temperature 5 to 30°C |
| Maximum relative humidity | Maximum relative humidity 80% |
| Altitude | up to 2000 m |
| Internal material | 304 stainless steels |
| External material | 08F (Iron 08F) |
| Number of shelves (Standard/Maximum) | 2/4 |
| Shelf dimension | 393 mm × 375 mm |
| Power | 1000 W |
| Power supply | AC 220 V, 50 Hz |
| Internal dimension | 400 × 400 × 450 mm |
| External dimension | 550 × 550 × 800 mm |
| Weight | 50 kg |
Features
- Floor standing type
- Microprocessor PID control system
- Vertical force convection and bottom heating
- Exhaust fan for temperature uniformity in chamber
- Corrosion resistance stainless steel chamber
- Platinum gold resistor PT100 temperature sensor
- Steel outer shell with static plastic spraying
- Three layer toughened glass observation window

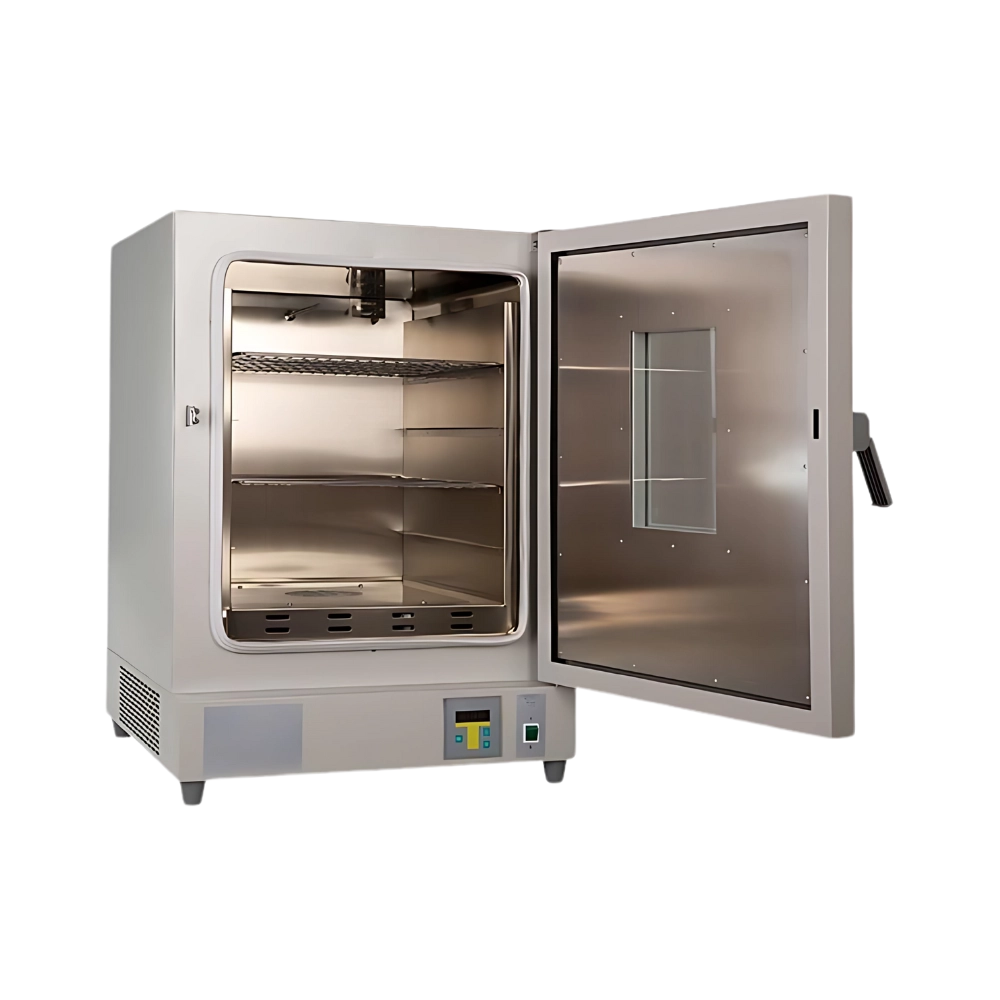

- Adjustable stainless steel shelves
- Self-diagnostic dynamic control technology
- Temperature controller with sensor malfunction and low/ high temperature deviation alarm
Applications
- Used for glassware desiccation, laboratorial sample, food, chemical materials heat denaturalization, heat induration, moisture elimination, biomedical and other instruments sterilization; electronic components torrefaction and aging.
Accessories Optional
Accessories no. Accessories name Unit 1 Motor 1 2 Sealing ring 1 3 Temperature controller 1 4 Plastic handle 1 5 Stainless steel handle 1
Frequently Asked Question
1: What is the temperature range of Drying Oven FM-DO-D101?
The Drying Oven FM-DO-D101 offers a wide temperature control range from RT+5 to 300°C. This makes it suitable for various laboratory and industrial heating applications. It ensures high precision with ±1°C accuracy.
2: How reliable is the heat distribution in Drying Oven FM-DO-D101?
The Drying Oven FM-DO-D101 ensures even heat distribution with a temperature uniformity of ±2% at 100°C. This helps achieve consistent results in drying tasks. It is ideal for accurate and repeatable experiments.
3: What safety features does Drying Oven FM-DO-D101 provide?
The Drying Oven FM-DO-D101 comes with a high safety design and aging-resistant materials. Its silicone rubber sealing strip ensures secure high-temperature operation. This makes it dependable even in harsh environments.
4: How much space does Drying Oven FM-DO-D101 provide for samples?
The Drying Oven FM-DO-D101 has an effective volume of 15.6 L with two standard shelves. Each shelf can bear up to 15 kg, offering ample space for small to medium tasks. It balances capacity with compact design.
5: What makes Drying Oven FM-DO-D101 durable for long-term use?
The Drying Oven FM-DO-D101 is coated with electrostatic spray technology for corrosion resistance. Its robust build ensures long service life and consistent performance. This makes it a reliable choice for continuous lab or industrial use.
