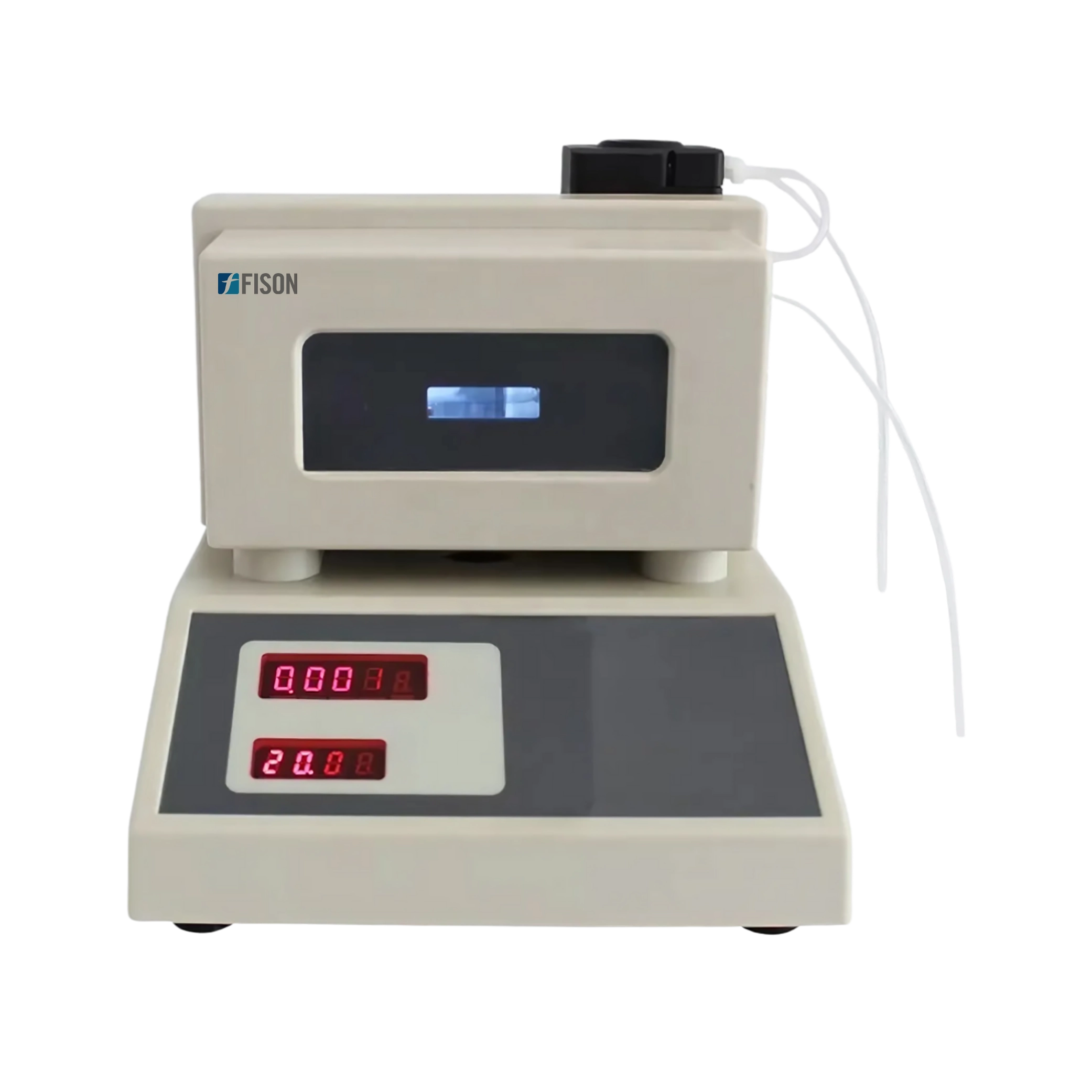

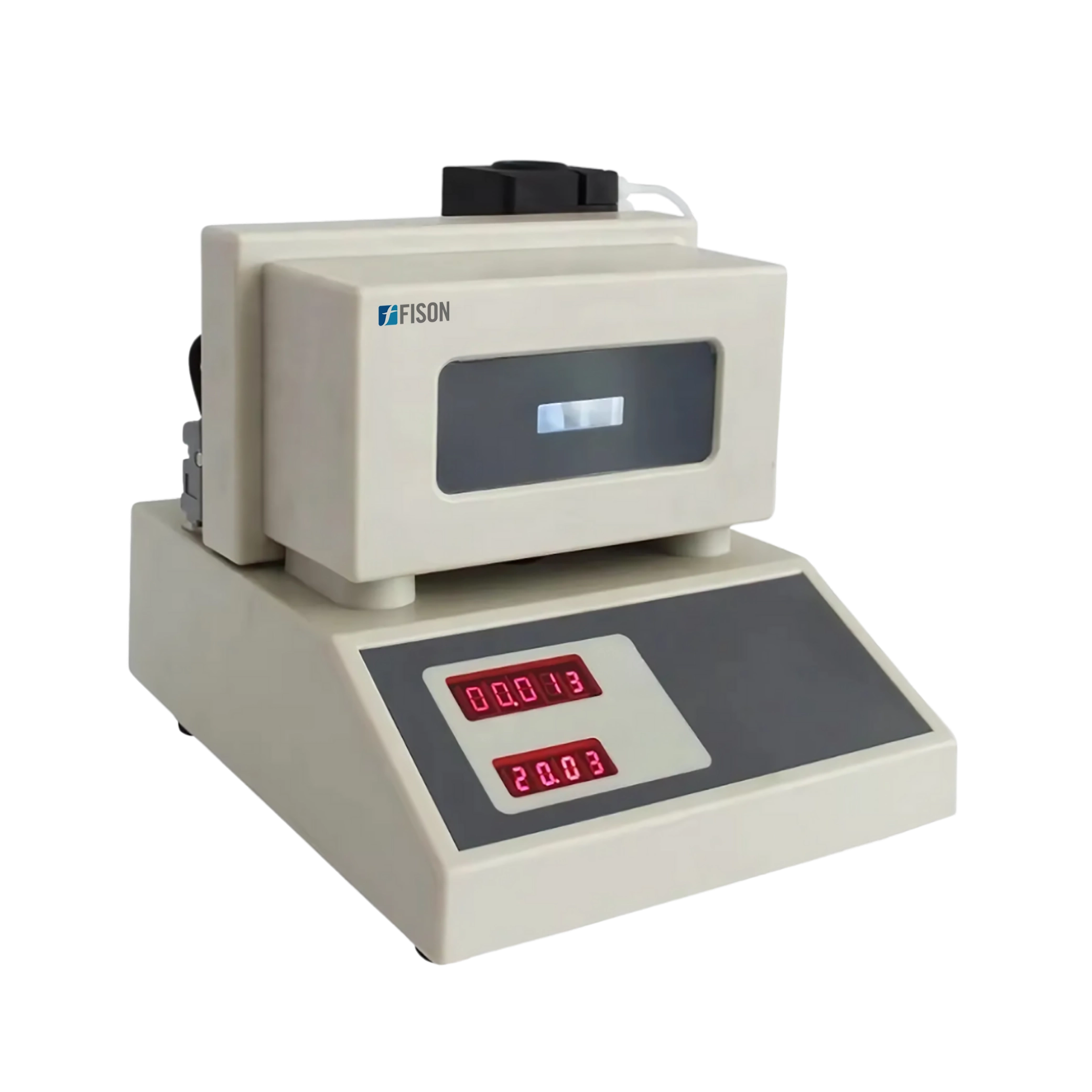

Electronic Liquid Densitometer FM-EDM-A100
Electronic Liquid Densitometer FM-EDM-A100 configured with U-tube oscillation technique ideal for measuring the density of liquid between 0.0001 to 1.999999g/cm³. Pumping liquid is scaled by a resonant sensor. Our densitometer processed data by a single-chip computer Imported high-speed XFMD chip processing, high sensitivity, and accurate data. Built-in memory can store a capacity of 80 sets of data having for easy recall and deletion
Specifications
| Measurement Range | 0.0001-1.999999g/cm³ |
| Resolution | 0.0001g/cm³ |
| Repeatability | ±0.0006 g/cm³ |
| Temperature Repeatability | ±0.1°C |
| Accuracy | 0.0001g/cm³ |
| Automatic Temperature Control | 20±0.1°C |
| Environmental Temperature | 5 to 35°C. |
| Sample dosage | 2 Ml |
| Automatic Sampling Detection | YES |
| Display | LED |
| Data storage | 80 measurements in memory |
| Power supply | 220V ± 22V, 50Hz ± 1Hz |
| Dimensions(L×W×H) | 206 ×205 ×200 mm |
| Net Weight | 3.6kg |
Features
- Inserted humidity sensors for intelligent environmental monitoring
- User-friendly interface easy to navigate the accurate reading
- Utilizing Self-developed technology to ensure complete removal of residues in samples
- Automated Cleaning Technology
- Features a digital display of precise and easy-to-read density values
Applications
- It is mainly used in the research and laboratories for measuring the density of diverse liquid samples. Alcohol and sulphuric acid are converted into concentration in beverage industries.
