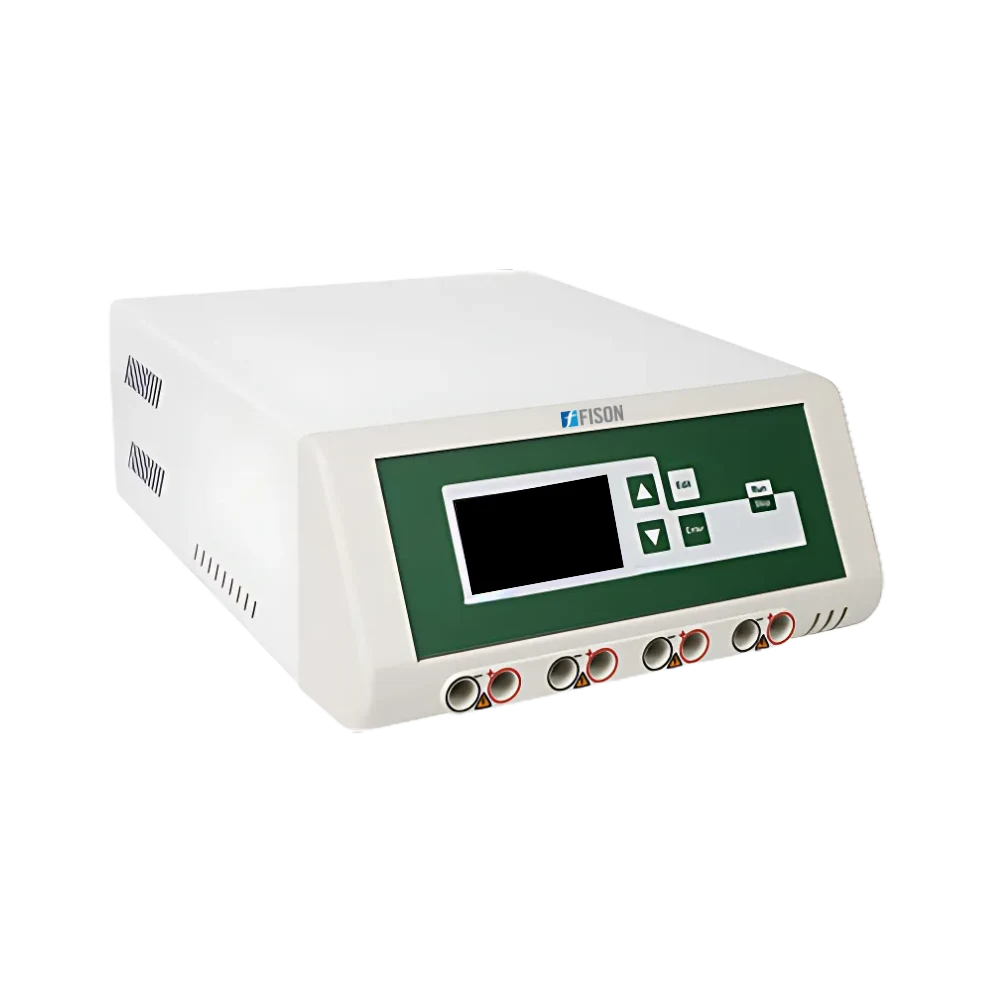

Electrophoresis Power Supply FM-EPS-C103
Electrophoresis Power Supply FM-EPS-C103 offers reliable output control with a voltage range of 10 to 600V, current range 1 to 500mA, and a maximum power output of 300W. Designed with an intuitive LED display, it allows clear visualization of parameters. Dual output jacks ensure flexibility for concurrent experiments. Built with microprocessor-based intelligent control, it ensures accurate regulation and protection. Compact, user-friendly, and efficient, this system is ideal for fundamental lab use. Best suited for electrophoresis-based academic and training applications.
Specifications
| Voltage range | 10 to 600V |
| Current range | 1 to 500mA |
| Power range | 1 to 300W |
| Type of control | Constant V, constant I and constant P |
| Display type | LCD screen with backlight |
| Output jack | 4 sets |
| Storage function | Store 100 methods |
| Programming method | Can store 100 methods, each up to 10 steps |
| Timing Function | 1min to 99h59min |
| V-hr function | Yes, 1 to 99999 V-hr |
| Pause control function | Yes |
| Power recovery function | Optional |
| Automatic memory function | Yes |
| Automatic shutdown function | Yes |
| Intelligent prompt function | Yes |
| Non -proliferation field function | Optional |
| Temperature detection function | No |
| Safety performance | Yes |
| Molding machine casing | Yes |
| Dimension (L×B×H) | 280×237×118 mm |
| Weight | 3.2kg |
Features
- Compact design
- Touch keys
- Automatic memory
- Standard timing operation
Applications
- Electrophoresis Power Supply FM-EPS-C103 is made for use in schools, hospitals, and research labs. It works well with SDS-PAGE, agarose gel, and 2D electrophoresis systems, making it suitable for different types of experiments. It is ideal for separating DNA, proteins, and enzymes, and provides dependable and efficient results for many lab applications.
