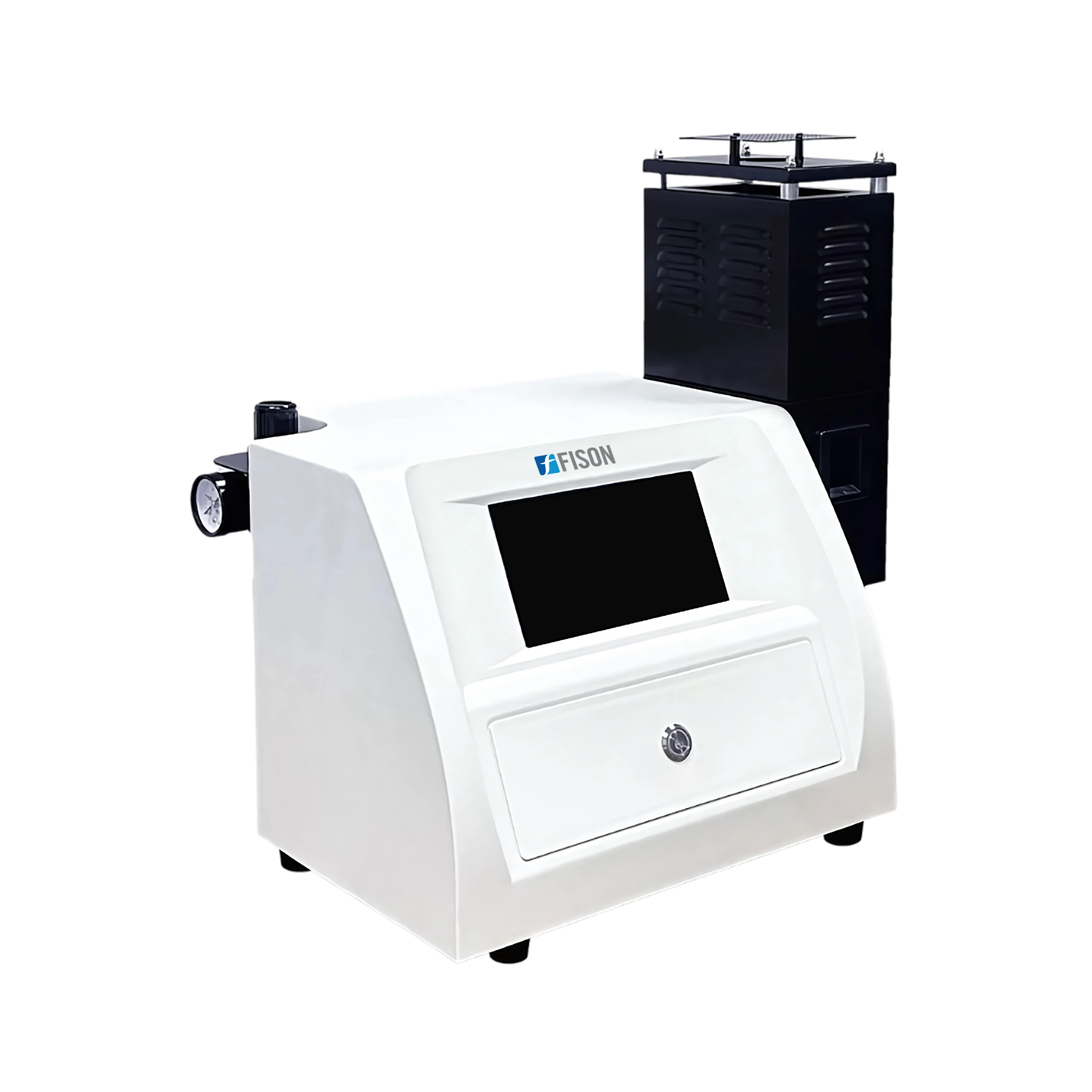

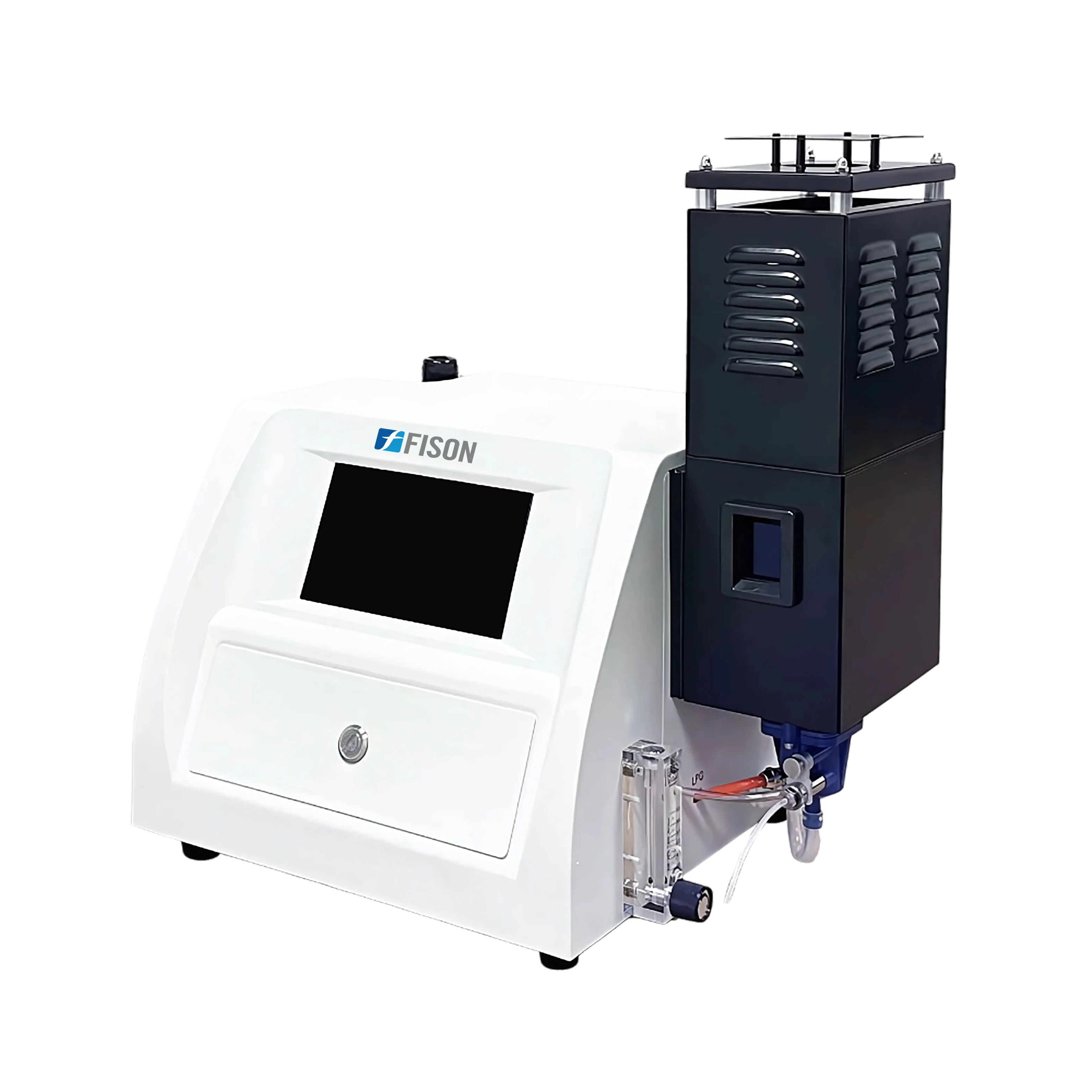

Flame Photometer FM-FPM-A104 is designed for precise analysis of potassium, sodium, and lithium in sample solutions. It provides an extensive detection range of 0.15 to 100 ppm for potassium, 0.18 to 100 ppm for sodium, and 0.1 to 30 ppm for lithium. It features a user-friendly 7-inch color touchscreen display, ensuring clear visualization and intuitive operation of all test parameters. Our photometer features a multi-language interface for easy use across diverse regions.
$2,995.00
| Test Elements | K / Na /Li |
| Test Range | K: 0.15 to 100 Na: 0.18 to 100 Li: 0.1 to 30 ppm |
| LOD | K: ≤0.156 Na: ≤0.184 Li: ≤0.1035 ppm |
| Linear Error | K: ≤0.195 Na: ≤0.69 Li: ≤0.1449 ppm |
| Channel Quantity | 3 |
| Response Time | 8s |
| Sample Uptake | Less than 3ml/min |
| Stability | Less than 3% (15s), ≤15% (6min) |
| Reproducibility | Less than 2% |
| Air Compressor | External |
| Printer | Optional built-in thermal printer |
| Communication | USB |
| Fuel | LPG |
| Power Supply | AC220V±10%, 50Hz±1Hz, 30W |
| Dimension (L×B×H) | 570 × 530 × 400 mm |
| Weight | 18kg |
Accessory | Quantity |
LPG reducing valve | 1 pc |
Stainless steel bellows for LPG | 1 pc |
Silica gel tubing for waste liquid | 1 pc |
PU tubing for air | 1 pc |
Air compressor | 1 pc |
1: How does the Flame Photometer FM-FPM-A104 ensure accuracy during elemental analysis?
Flame Photometer FM-FPM-A104 ensures accuracy through real-time concentration measurement, automatic correlation coefficient calculation, and a stable LPG-based flame system.
2: Why is the Flame Photometer FM-FPM-A104 suitable for multi-regional laboratory use?
Flame Photometer FM-FPM-A104 features a multi-language interface, making it accessible and user-friendly for laboratories operating in diverse linguistic regions.
3: Where can the Flame Photometer FM-FPM-A104 be effectively used in scientific research?
Flame Photometer FM-FPM-A104 is ideal for use in clinical laboratories, agricultural testing centers, pharmaceutical R&D, and water quality labs requiring precise sodium, potassium, and lithium detection.
4: How does the Flame Photometer FM-FPM-A104 handle potential gas safety issues?
Flame Photometer FM-FPM-A104 includes gas leak detection and an automatic shut-off function, ensuring safe operation in laboratory environments.
5: Why is LPG flame operation beneficial in the Flame Photometer FM-FPM-A104?
LPG flame operation in the Flame Photometer FM-FPM-A104 provides consistent flame stability, essential for reliable and repeatable analytical results.
6: What applications benefit most from using the Flame Photometer FM-FPM-A104?
Flame Photometer FM-FPM-A104, with its wide detection range and capability to analyze multiple elements, is highly beneficial for applications in soil nutrient analysis, biomedical research, and industrial chemical monitoring.
Fison Flame Photometers are designed for the precise detection and quantification of alkali and alkaline earth metals. They offer fast and reliable analysis of elements such as sodium (Na), potassium (K), calcium (Ca), and lithium (Li). These photometers feature high sensitivity and accuracy for detecting low concentrations of metals. Our photometers have a digital display for clear and quick reading of results. They incorporate a safety feature to prevent flameout and ensure continuous operation.
