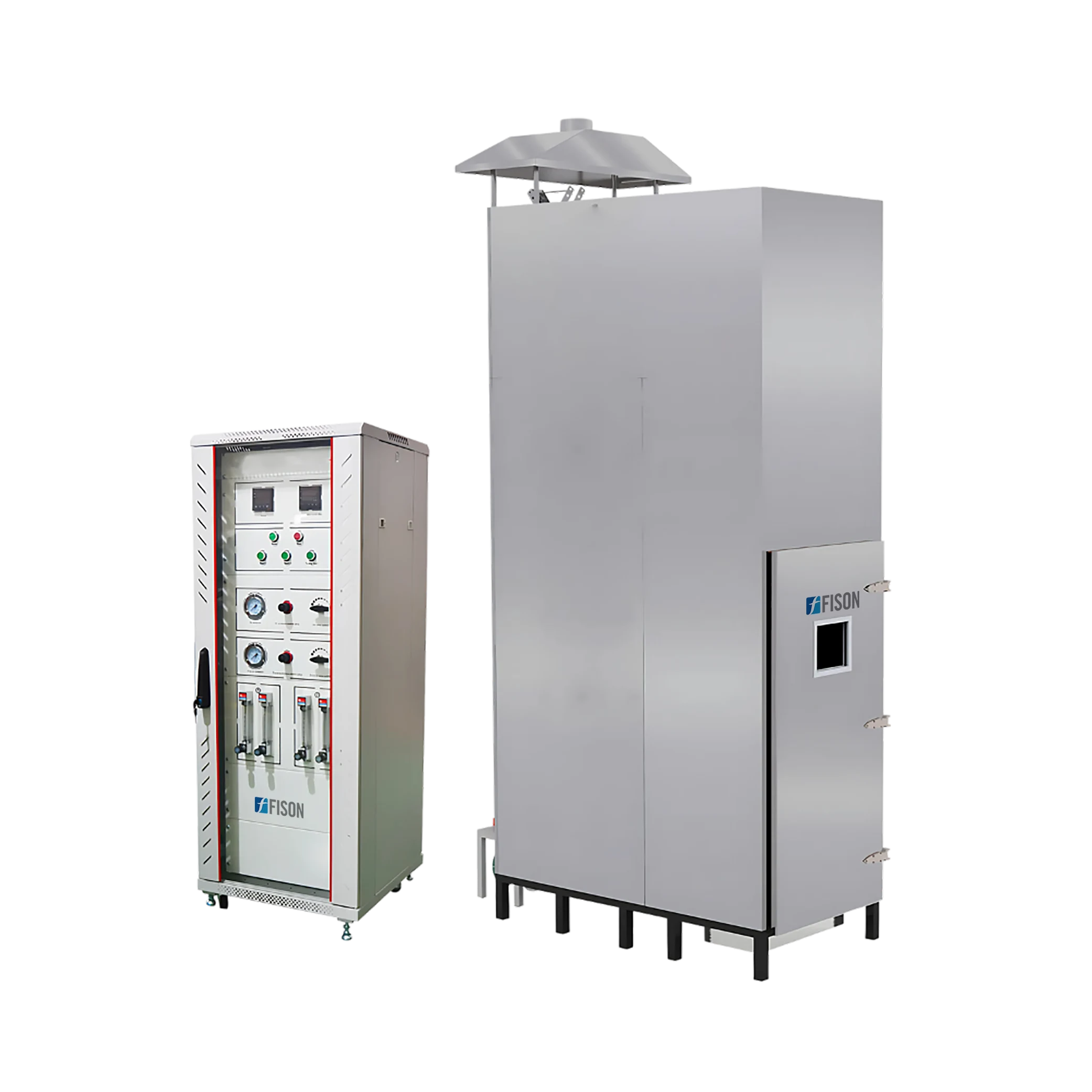

Vertical Flame Spread Tester FM-VFT-A100
Vertical Flame Spread Tester FM-VFT-A100 features a high-capacity air inflow system of 5000 ± 500 L/min, ensuring accurate flame testing. It is equipped with an integrated wind speed sensor to provide precise airflow monitoring. It features an adjustable rotor flowmeter for precise air flow control, ranging from 10 to 100 L/min, and propane flow control between 2 and 20 L/min, ensuring optimal combustion performance. It features a user-friendly interface for precise operation and efficient control of functions.
Specifications
| Test Chamber (Internal) (W × D × H) | 1000 × 2000 × 4000 mm |
| Insulation Material | Mineral wool |
| Air Supply Hole (W × D) | 800 × 400 mm, located 150 mm from the front side of the lower section |
| Cross-Sectional Area of Intake Pipe | 240 cm² |
| Air Inflow | 5000 ± 500 L/min, with wind speed sensor detection |
| Exhaust Space (Top) (W × D) | 300 × 1000 mm |
| Standard Ladder (W × H) | 500 × 3500 mm; Quantity: 1 |
| Wide Ladder (W × H) | 800 × 3500 mm; Quantity: 1 |
| Burner Devices | 2 sets of banding standard propane burner devices |
| Gas Mixing Devices | 2 sets of venturi gas mixing devices |
| Pressure Control | Pressure gauge & pressure reducing valve; Adjustable to 0.1 MPa |
| Air Flow Control | Rotor Flowmeter: 10 to 100 L/min (adjustable) |
| Propane Flow Control | Rotor Flowmeter: 2 to 20 L/min (adjustable) |
| Shut-off Valve | Manual ball valve for air source |
| Flame Test Timer | Automatic flame test timing with auto air cut-off |
| Temperature Monitoring | Thermocouple installed on inner wall |
| Fire Suppression | Forced fire extinguishing sprinkler on chamber top |
| Hoisting Mechanism | Automatic hoisting device at upper part of sample ladder |
| Combustion Chamber (W × D × H) | 1150 × 2150 × 5110 mm |
| Control Chamber (W × D × H) | 600 × 600 × 1610 mm |
| Power Supply | AC 220V, 50/60 Hz, 2A |
| Air Source | Propane and Air (provided by customer) |
| Control Cabinet Volume | 0.97 m³ |
| Control Cabinet Dimension (L×W×H) | 0.75 × 0.73 × 1.77 m |
| Control Cabinet Net Weight | 99 kg |
| Control Cabinet Gross Weight | 139 kg |
| Combustion Box Volume | 12.11 m³ |
| Combustion Box Dimension (L×W×H) | 4.41 × 1.13 × 2.43 m |
| Combustion Box Net Weight | 1281 kg |
| Combustion Box Gross Weight | 1364 kg |
Features
- Stainless steel test chamber
- Dual ladder configuration
- Integrated Venturi Gas mixing devices
- Ventilation system
- User-friendly interface
Applications
- Vertical Flame Spread Tester FM-VFT-A100 can be widely used in the purification of acid and alkaline waste gas discharged from the chemical, electronics, metallurgy, electroplating, and textile (chemical fiber) industries.
Accessories
Test Chamber 1 set Air Source Device 1 set Gas Source Device 1 set Bunch Cable Ladder Rack 1 set Flame Temperature Measuring Thermocouple 1 pc Ignition Source (Propane Burner) 1 pc Ignition Timer 1 pc Control System 1 set Exhaust System 1 set Smoke Exhaust Fan 1 pc Ventilation Duct 1 pc Control Cabinet 1 pc Stainless Steel Tray for Cable Droppings 1 pc Power Cable 1 pc
