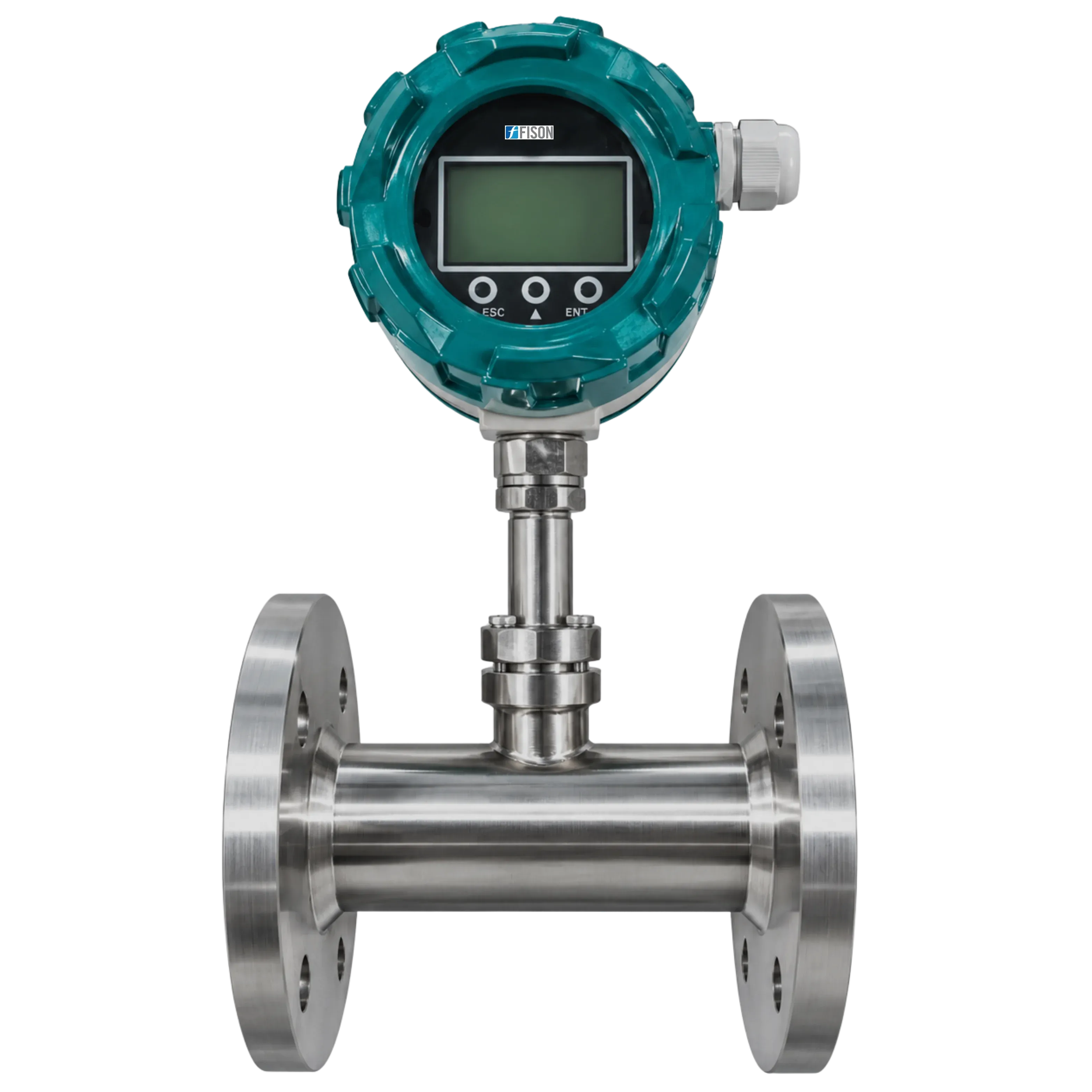

Gas Flow Meter FM-GFM-A100
Gas Flow Meter FM-GFM-A100 offers a wide flow velocity range from 0.1 to 120 Nm/s, making it suitable for both low and high flow applications. It operates reliably in harsh conditions, with the sensor rated from -40 to +450 °C and the converter from -20 to +70 °C. It is available in various pipe materials, including carbon steel, stainless steel, and plastic for versatile media and environments. Our meter features a character LCD for real-time live display of flow data, ensuring clear and easy monitoring.
Specifications
| Flow Velocity Range | 0.1 to 120 Nm/s |
| Operating Temperature | Sensor: -40 to +450 °C Converter: -20 to +70 °C |
| Pipe Diameter Range | DN6 to 2000 mm |
| Accuracy | ±(1.5% reading + 0.3% full scale) |
| Measuring Medium | Common steady-state gases (unstable media such as acetylene, boron trichloride cannot be measured) |
| Working Pressure | Medium pressure Less than 1.6 MPa |
| Response Speed | 1 second |
| Output Signal | 4 to 20 mA (optically isolated, maximum load 500 ohms), RS-485(optically isolated, custom |
| Alarm | 1 to 2 normally open contacts, 24V/0.5A |
| Supply Type | Integrated structure |
| Display Content | Mass flow, standard volume flow, cumulative flow, standard flow velocity, etc. |
| Protection Level | IP65 |
| Sensor Material | Stainless steel, Carbon Steel |
| Power Supply | DC 24V or AC 220V ≤18W |
| Packaging Dimension (L×B×H) | 310×260×410 mm |
| Net Weight | 2.5 Kg |
| Gross Weight | 7 kg |
Features
- Easy installation
- Negligible pressure loss
- Simple structure
- Vibration-resistant
- Compatible with single and mixed gases
- High-performance microprocessor
Applications
- Gas Flow Meter FM-GFM-A100 is used to measure the flow rate of gases and is widely used in oil and gas industry, chemical and petrochemical plants, power plants, food and beverage, pharmaceutical and biotechnology, environmental monitoring, laboratories water and wastewater treatment.
Frequently Asked Question
1: What gases can this Flow Meter measure?
It measures various single or mixed steady-state gases like natural gas, air, biogas, and propane.
2: Does it require temperature or pressure compensation?
No, it directly measures mass flow without the need for external compensation.
3: Can it be used in high-temperature environments?
Yes, the sensor can operate up to 450°C, depending on the selected configuration.
4: What industries typically use this device?
It is used in oil & gas, chemical processing, environmental monitoring, and power generation.
