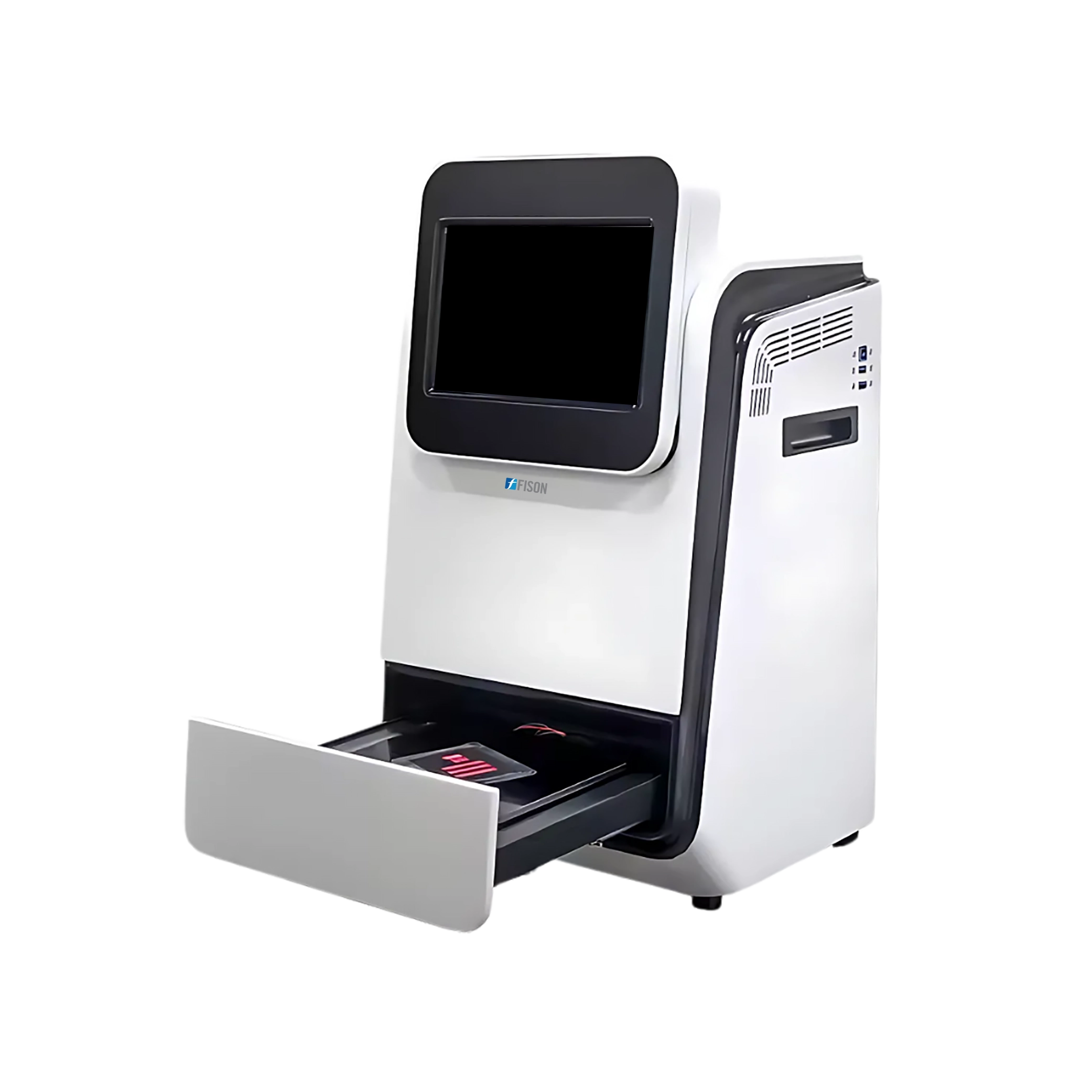

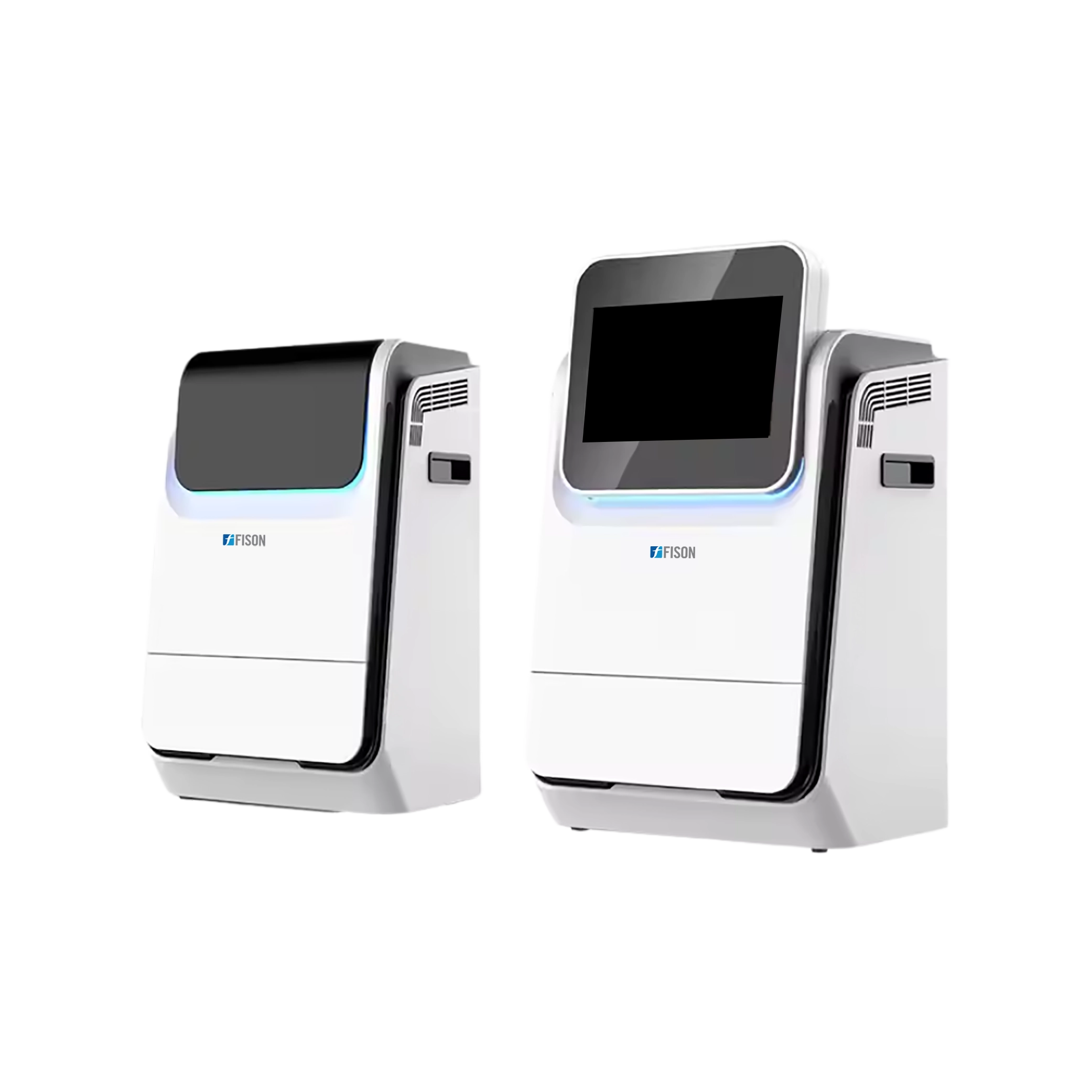

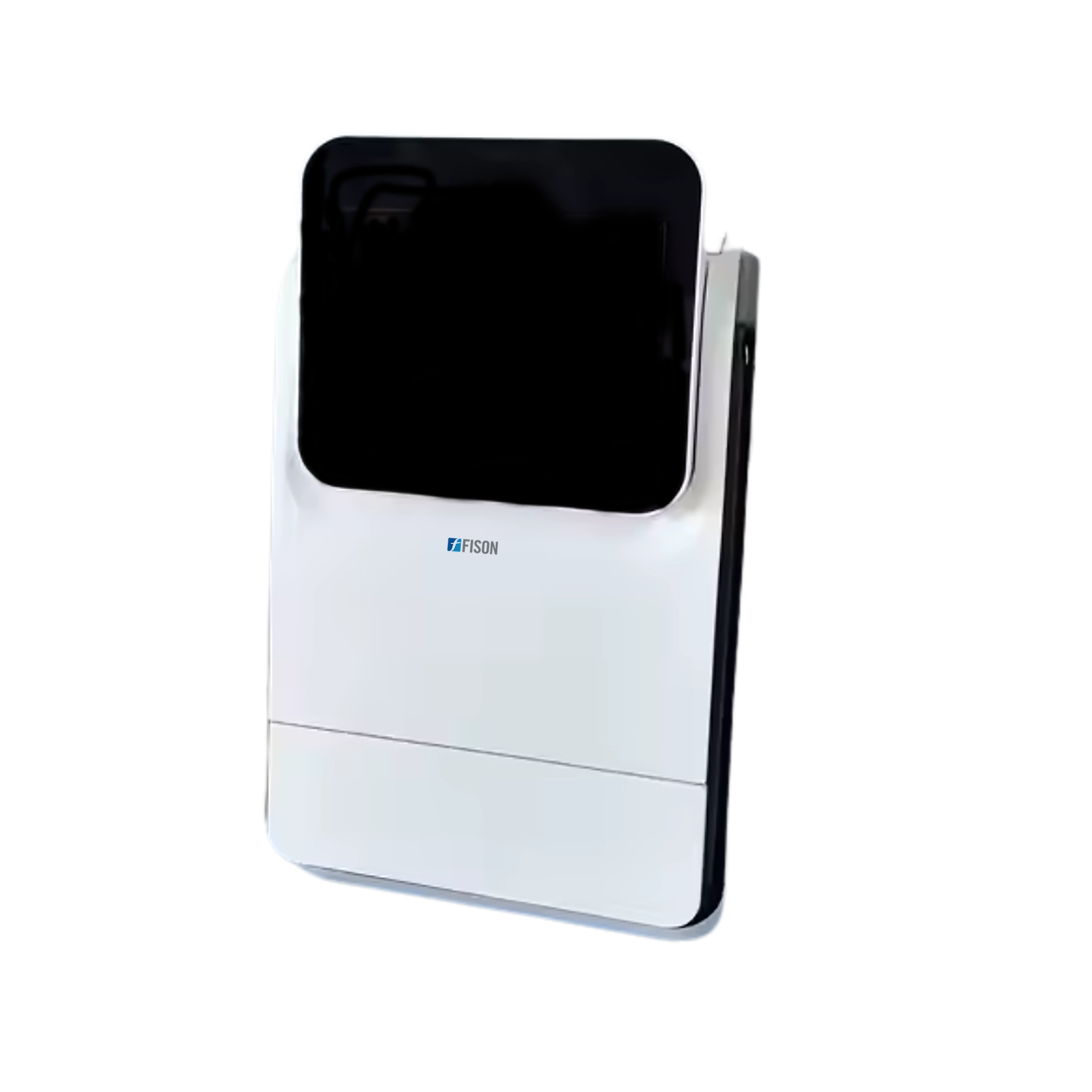

Gel Doc Imaging System FM-GIS-A102
Gel Doc Imaging System FM-GIS-A102 is equipped with a 6.3-megapixel resolution camera, offering clear images for accurate gel documentation. This features super-fast data transmission, ensuring rapid image transfer for efficient analysis. It comes with user-friendly software that supports unlimited users for efficient operation and collaboration. Our imager offers precise numeric focus and aperture control for optimal image clarity and detail.
Specifications
| Resolution | 6.3 Megapixels (3072×2048) |
| Quantum Efficiency | 0.97 |
| Linear Range | 4.8 OD |
| Pixel Density | 16-bit (65,536 Grey scales) |
| Lens | F1.2 Motorized Lens |
| Lens Resolution | 20 Megapixels |
| Control | Numeric Focus controlled via Software |
| Protein Gel Illumination | Sample tray: 17×13cm White LED Transmission |
| DNA/RNA Detection | Sample tray: 165×130cm UV Transmission |
| Dimensions(L×W×H) | 420×430×740 mm |
| Weight | 17 kg |
Features
- Consistent illumination quality
- High-sensitivity imaging sensor
- Optimized contrast adjustment
- Minimal maintenance requirements
- Accurate pixel density
Applications
- Gel Doc Imaging System FM-GIS-A102 is engineered for precise gel imaging applications, commonly used in molecular biology and biochemistry labs. It efficiently captures and analyzes DNA, RNA, and protein gels for accurate documentation and research analysis.
Accessories Optional
- Blue LED transmission
Industrial computer
