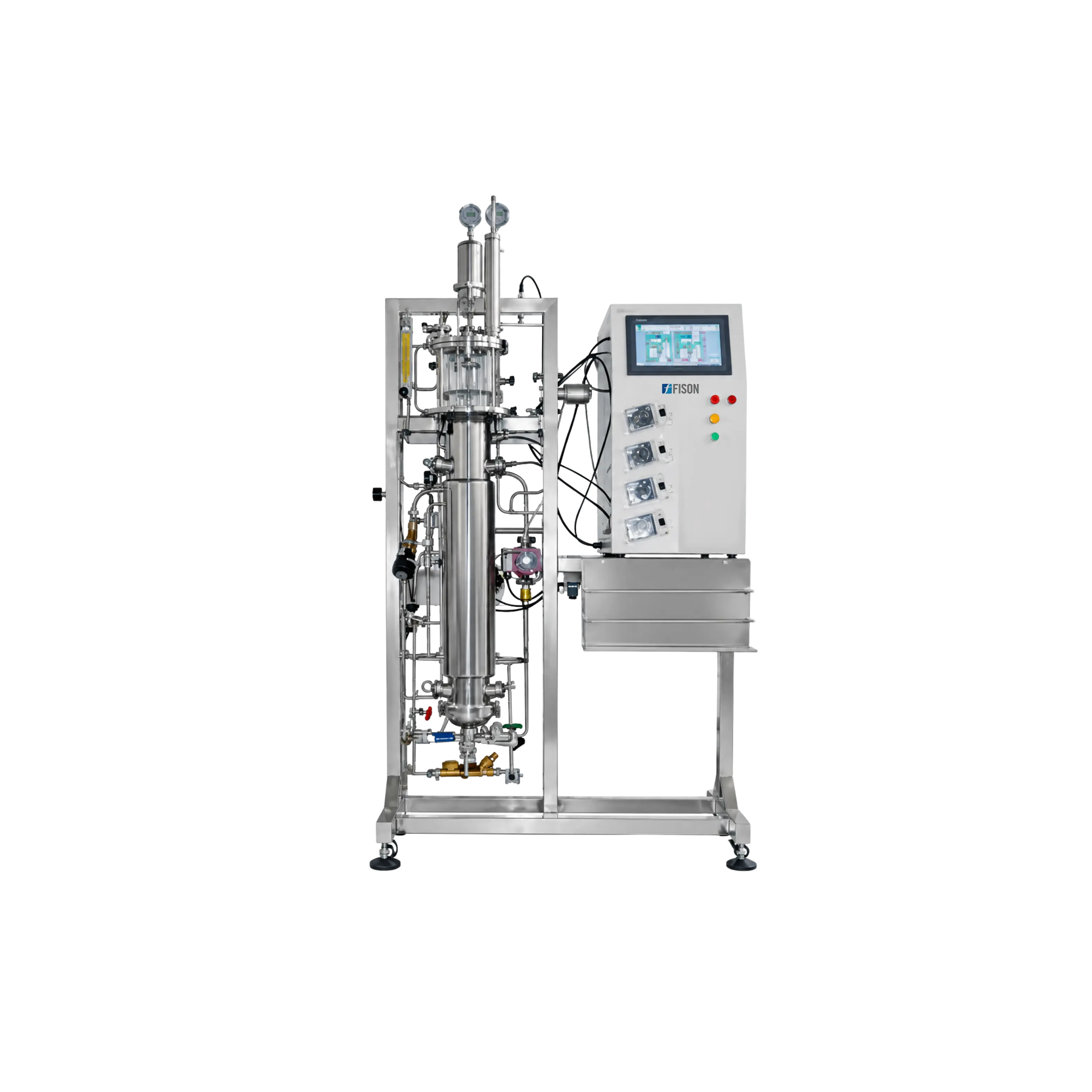

Fison Glass Bioreactor FM-GF-A101 supports laboratory-scale bioprocessing with a 5 L total volume and 2.5–3.5 L working volume. This Airlift Glass Fermenter provides 1 vvm aeration, automatic temperature regulation at ±0.1°C, and integrated pH, dissolved oxygen (DO), feeding, and antifoam control. A Hamilton DO sensor, peristaltic pumps, and BLBIO-B process controller with Siemens S7-1200 PLC facilitate precise monitoring and control of critical fermentation parameters.
| Vessel Type | Airlift Glass Fermenter |
| Total Volume | 5 L |
| Working Volume | 1.5 - 3.5 L |
| Diameter-to-Height Ratio | 1:5 |
| Vessel Construction | Stainless steel cylinder combined with glass |
| Sterilization Method | Off-site sterilization autoclave |
| Aeration System | Rotameter manual control with aeration filter |
| Stirring System | Internal stainless steel guide tube |
| Temperature Electrode Detection Range | 0–150°C |
| Airflow Control | Manual control with flow meter display |
| Airflow Rate | 1 vvm |
| Anti-Foam Control | Automatic foam detection and antifoam addition by peristaltic pump |
| Foam Detection Range | 10–100,000 Ω |
| DO Control | Stirrer-speed-related control |
| DO Sensor | Hamilton, Switzerland |
| Biology Process Controller | BLBIO-B |
| Controlled Parameters | Temperature, pH, DO, antifoam, stirrer speed, feeding |
| Control System | BLBIO B control system with Siemens S7-1200 PLC |
| Display | 10-inch LCD touch-sensitive screen |
| PC Software | BLBIO-Ver8.0, optional |
| Data Transfer | USB |
| pH Displaying Range | 0.00–14.00 ±0.01 |
| pH Auto-Control Range | 2.00–12.00 ±0.05 |
| DO Displaying Range | 0–150 ±3% |
| DO Display Resolution | 0.10% |
| Cooling Water Temperature | +5 to +60°C |
| Temperature Control | ±0.1°C |
| Product Dimensions | 120 x 70 x 89 cm |
| Weight | 120kg |
Glass Bioreactor FM-GF-A101 is used for laboratory-scale fermentation, microbial cultivation, bioprocess development, fermentation process optimization, and controlled studies involving parameters such as pH, dissolved oxygen, temperature, airflow, feeding, and foam.
Fison Glass Bioreactor features a 5 L capacity with a 2.5–3.5 L working volume and airlift configuration for controlled aeration and mixing. The borosilicate glass vessel offers a 1:5 diameter-to-height ratio, with a pH control range of 0.00–14.00 ± 0.01. This fermentation bioreactor supports controlled cultivation and fermentation processes.
