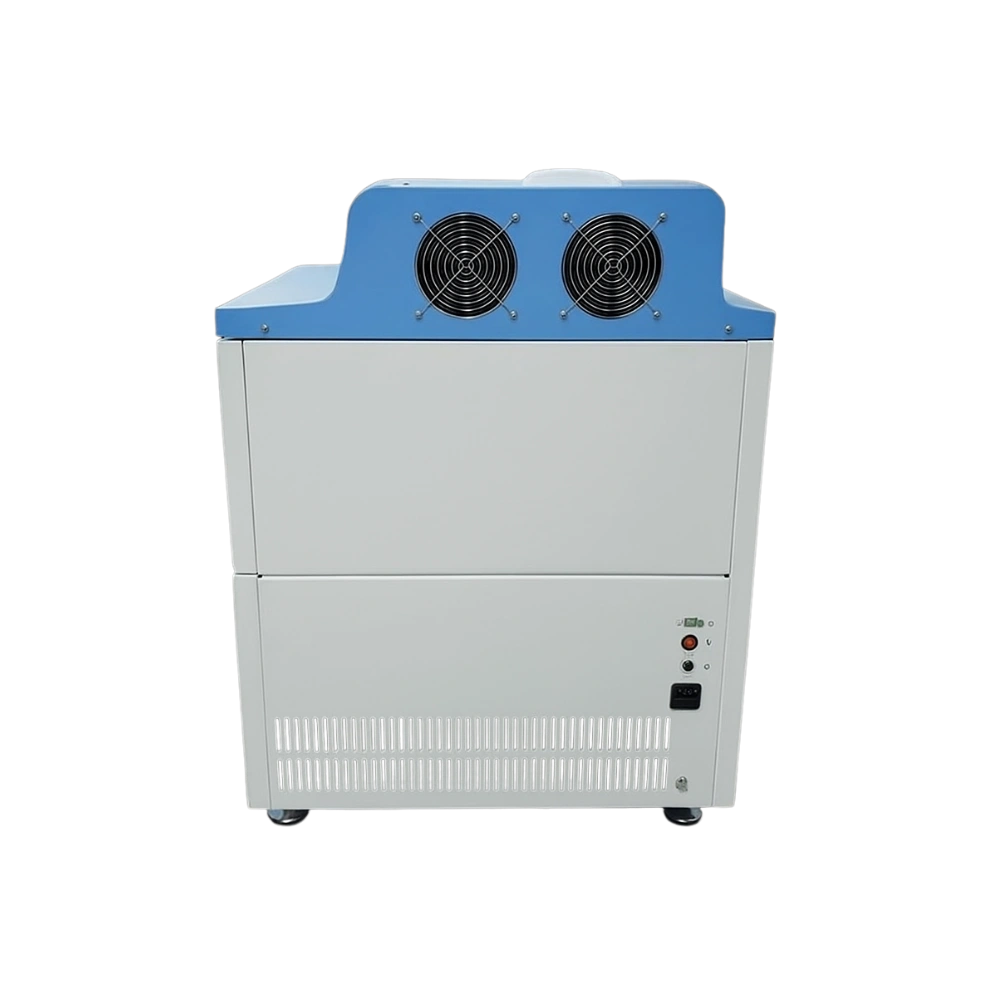

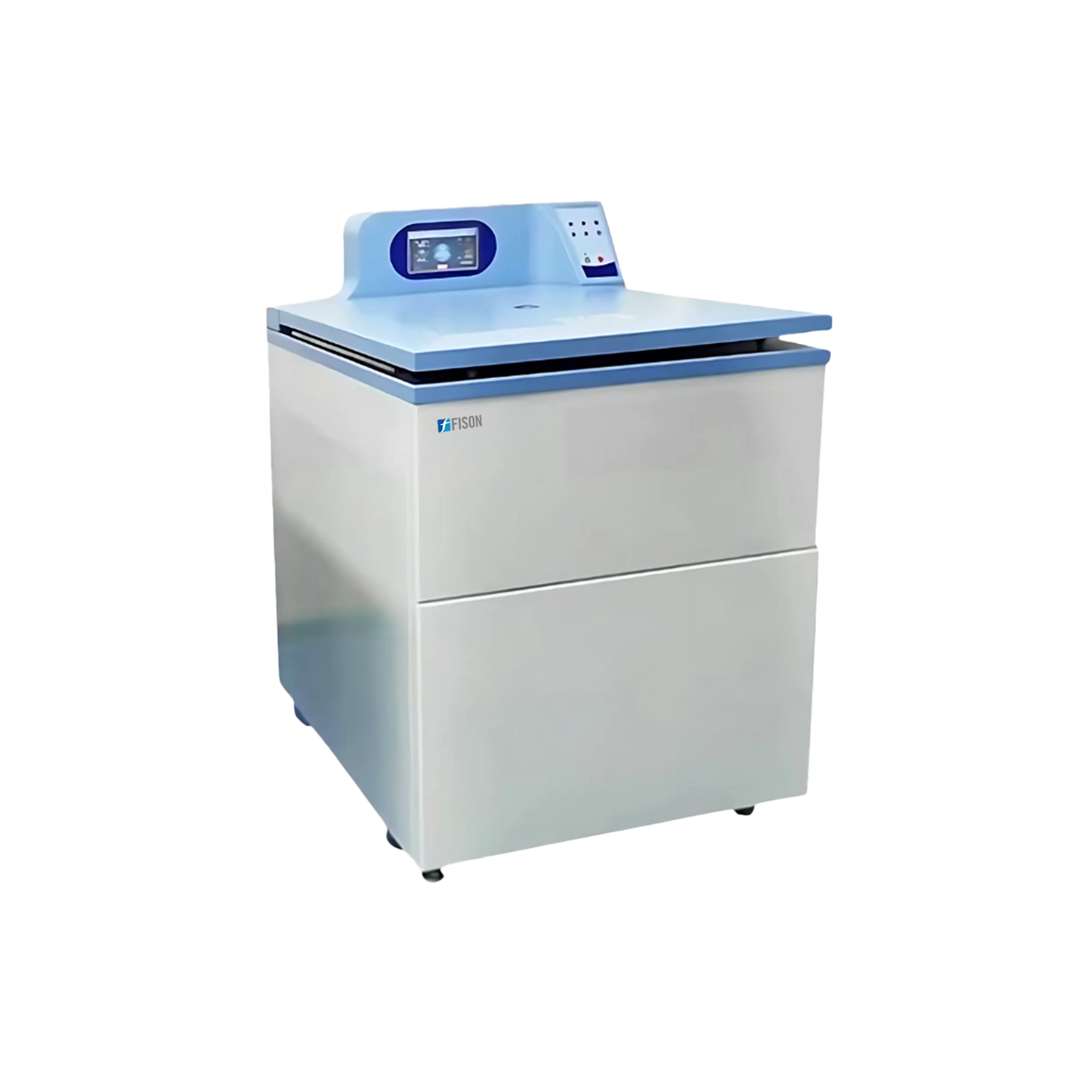

High Speed Centrifuge FM-HSC-A303
High Speed Centrifuge FM-HSC-A303 can accommodate 4L of sample and rotates at maximum speed of 25000 r/min. It is designed to work in wide temperature range of -20°C to 40°C. Features large LCD touch screen display for real-time monitoring. It includes various rotor options for versatile functioning. Our High Speed Centrifuge features CFC-free refrigeration technology for energy efficient and eco-friendly operation.
Specifications
| Maximum Speed | 25000 r/min |
| Speed Accuracy | ± 20 r/min |
| Maximum RCF | 64983 × g |
| Capacity | 4 × 1000 mL |
| Temperature Range | -20°C to 40°C |
| Temperature Accuracy | ±1 °C |
| Time Range | 1 min to 99 h 59 min |
| Noise | ≤ 65 dB (A) |
| Refrigerant | R404a |
| Power | 5 kW |
| Power Supply | AC 220 V 50 Hz 30 A |
| Dimensions | 710 × 840 × 1200 mm |
| Packaging Dimensions | 890 × 960 × 1450 mm |
| Net Weight | 290 kg |
Features
- Microcomputer controller
- Multiple protection functions
- Automatic fault alarm function
- Electronic door lock
- 10 programmable settings
- Reduced noise and vibration
Applications
- High Speed Centrifuge are essential for separation of temperature sensitive biological samples including nucleic acids, protein, blood etc.
Optional Rotor Selection
Rotor Type No. Maximum Speed Maximum Capacity Maximum RCF Rotor 1 25000 r/min 10 × 5 mL 64983 × g Rotor 2 25000 r/min 24 × 1.5 mL 64983 × g Rotor 3 23000 r/min 16 × 10 mL 60900 × g Rotor 4 18000 r/min 8 × 50 mL 40930 × g Rotor 5 14000 r/min 6 × 250 mL 30200 × g Rotor 6 10000 r/min 6 × 500 mL 17800 × g Rotor 7 7000 r/min 4 × 1000 mL 9980 × g Horizontal Rotor 8 4000 r/min 2 × 2 × 96 well 2236 × g Horizontal Rotor 9 5000 r/min 4 × 750 mL 5470 × g
Adapter Selection
Adapter Type No. Maximum Speed Capacity Maximum RCF Adapter 1 25000 r/min 0.5 mL, 1.5 mL 64983 × g Adapter 2 25000 r/min 0.2 mL, 0.5 mL 64983 × g Adapter 3 23000 r/min 1.5 mL, 5 mL 60900 × g Adapter 4 18000 r/min Alternative Models Of High Speed Centrifuge
Fison High Speed Centrifuge applies large centrifugal force to separate sample components. They come with microprocessor regulated LCD Display for easy monitoring. Cooling systems protect heat-sensitive samples by maintaining sub-zero temperatures. They feature multiple working modes along with noise-free operation. We offer High Speed Centrifuge with different speed settings, ranging from 6000 to 23000 rpm.
