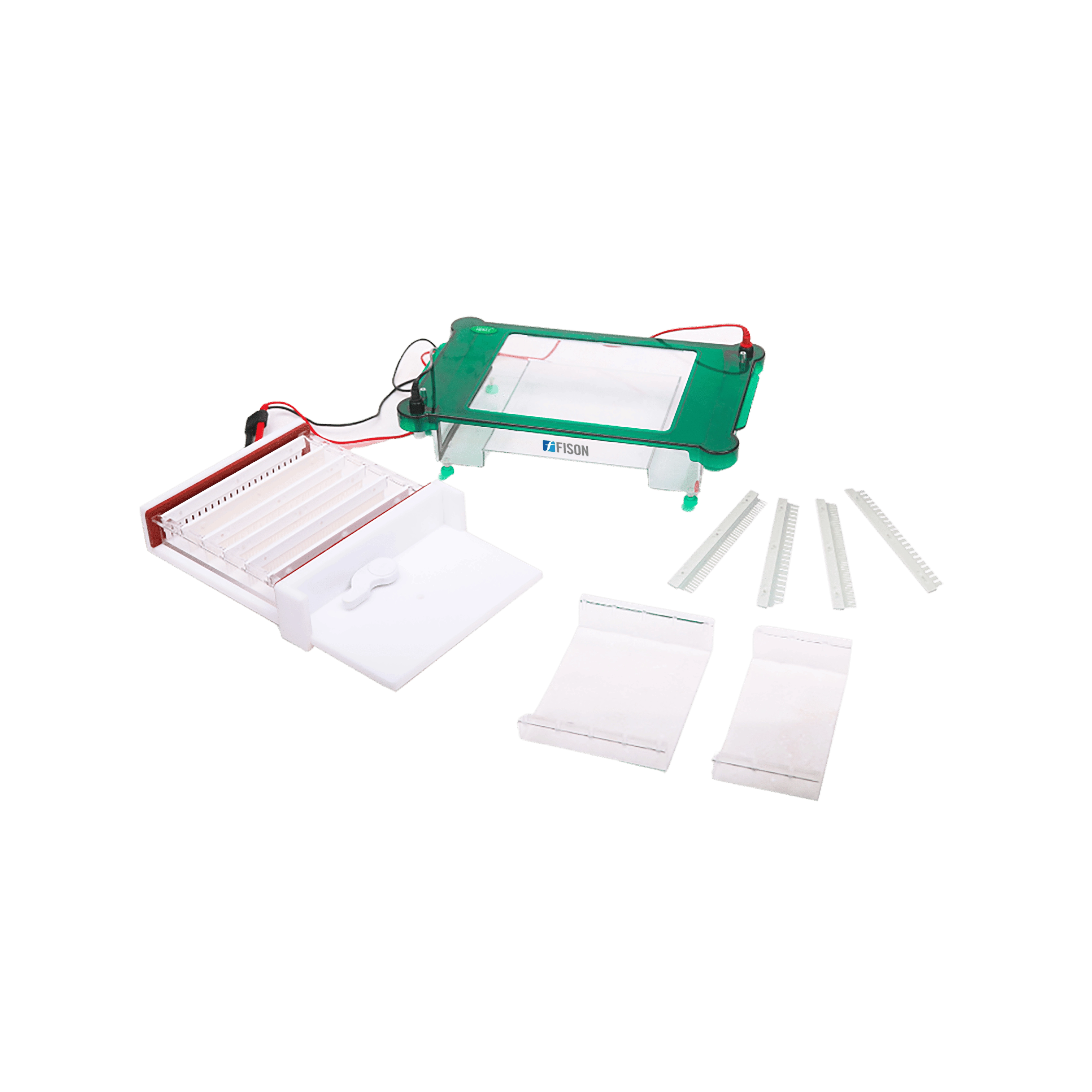

Horizontal Electrophoresis System- FM-HES-A100
Horizontal Electrophoresis System- FM-HES-A100 offers sample capacity ranging from 17 to 104 wells for efficient DNA/RNA separation. It has high buffer volume of 1800ml to ensure stable pH levels and efficient heat dissipation. It features removable electrodes and leak-proof gel caster simplify the maintenance. It has a transparent lid to enhance the safety and prevent buffer volatilization. Our electrophoresis system is designed for quick sample loading with multi-comb pipette compatibility to ensure precise results.
Specifications
| Gel size (W×L) | 200×200mm, 200×150mm, 200×100 mm |
| Samples capacity | 17 to 104 |
| Total buffer volume | 1800 ml |
| Dimension (L×B×H) | 397×230×93 mm |
| Packaging dimension (L×B×H) | 55×42×26 cm |
| Net weight | 3.3 kg |
| Gross weight | 5.0 kg |
Features
- Auto switch-off
- Easy open lid buttons
- Adjustable levelling
- Lightweight and durable
Applications
- Our Horizontal Electrophoresis System is ideal for DNA, RNA and protein separation in molecular biology and genetics research labs.
Accessories
Lid With Cables × 1
Gel Tray (200mm X 200mm) × 1
Gel Tray (200mm X 150mm) × 1
Gel Tray (200mm X 100mm) ×1
Gel Casting stand × 1
17 Well Comb (1.0mm thickness) × 2
17 Well Comb (1.8mm thickness) × 2
22 Well Comb (1.0mm thickness) × 2
22 Well Comb (1.8mm thickness) × 2
36 Well Comb (1.0mm thickness) × 2
36 Well Comb (1.8mm thickness) × 2
44 Well Comb (1.0mm thickness) × 2
44 Well Comb (1.8mm thickness) × 2
Level Adjusting Button × 4
Power Supply Selection
Model
FM-HES-A100
Increment
1V, 1mA, 1W
Output range
10 to 600 V, 1 to 1000mA, 1 to 300W
Timer range
1 min to 99 hr, 59 min
Display
LCD Display
Dimension (L×B×H)
40×34×22 cm
Net weight
4.2 kg
Gross weight
5.1 kg
