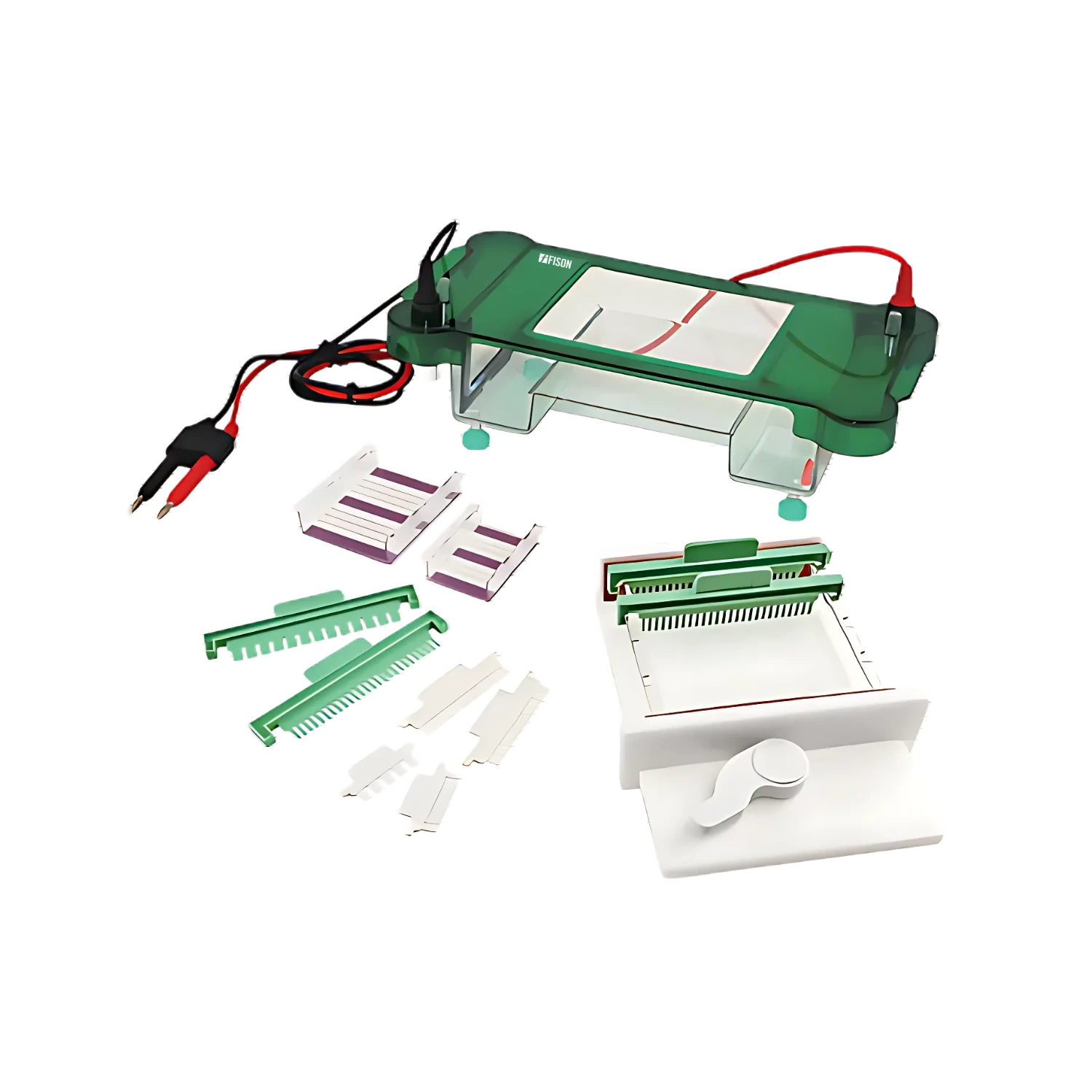

Horizontal Electrophoresis System FM-HES-A104
Horizontal Electrophoresis System FM-HES-A104 is compact, user-friendly, designed to accommodate various gel tray sizes for versatile laboratory use. It features easily removable electrodes, ensuring quick maintenance and smooth operation. The lid is equipped with a convenient push-button mechanism for effortless handling. It includes an auto shut-off function ensuring user safety. This is ideal for applications involving DNA, RNA, and protein separation in molecular biology and research labs.
Specifications
| Gel size (W×L) | 130×130mm; 78×100mm; 48×75mm. |
| Samples capacity | 3 to 18 |
| Total buffer volume | 600 ml |
| Dimension (L×B×H) | 305×152×80 mm |
| Net weight | 1.7 kg |
Features
- Transparent protective cover
- Stable pH conditions
- Multiple comb options
- Efficient heat dissipation
- Adjustable levelling mechanism
Applications
- Horizontal Electrophoresis System FM-HES-A104 can be used for the separation and analysis of DNA, RNA, and proteins. It supports molecular biology workflows such as PCR product verification and plasmid analysis. Ideal for research, diagnostics, and educational lab applications.
Accessories
Lid with cables 1 Body tank with electrode 1 Gel Tray (130×130mm) 1 Gel Tray (78×100mm) 1 Gel Tray (48×75mm) 2 Gel Casting stand 1 3-WellComb (1.5mm thickness) 2 5-WellComb (1.0mm thickness) 2 10-WellComb (1.0mm thickness) 2 13-WellComb (1.0mm thickness) 2 13-WellComb (1.5mm thickness) 2 15-WellComb (1.0mm thickness) 2 26-WellComb (1.0mm thickness) 2 26-WellComb (1.5mm thickness) 4 Level Adjusting Button 4
