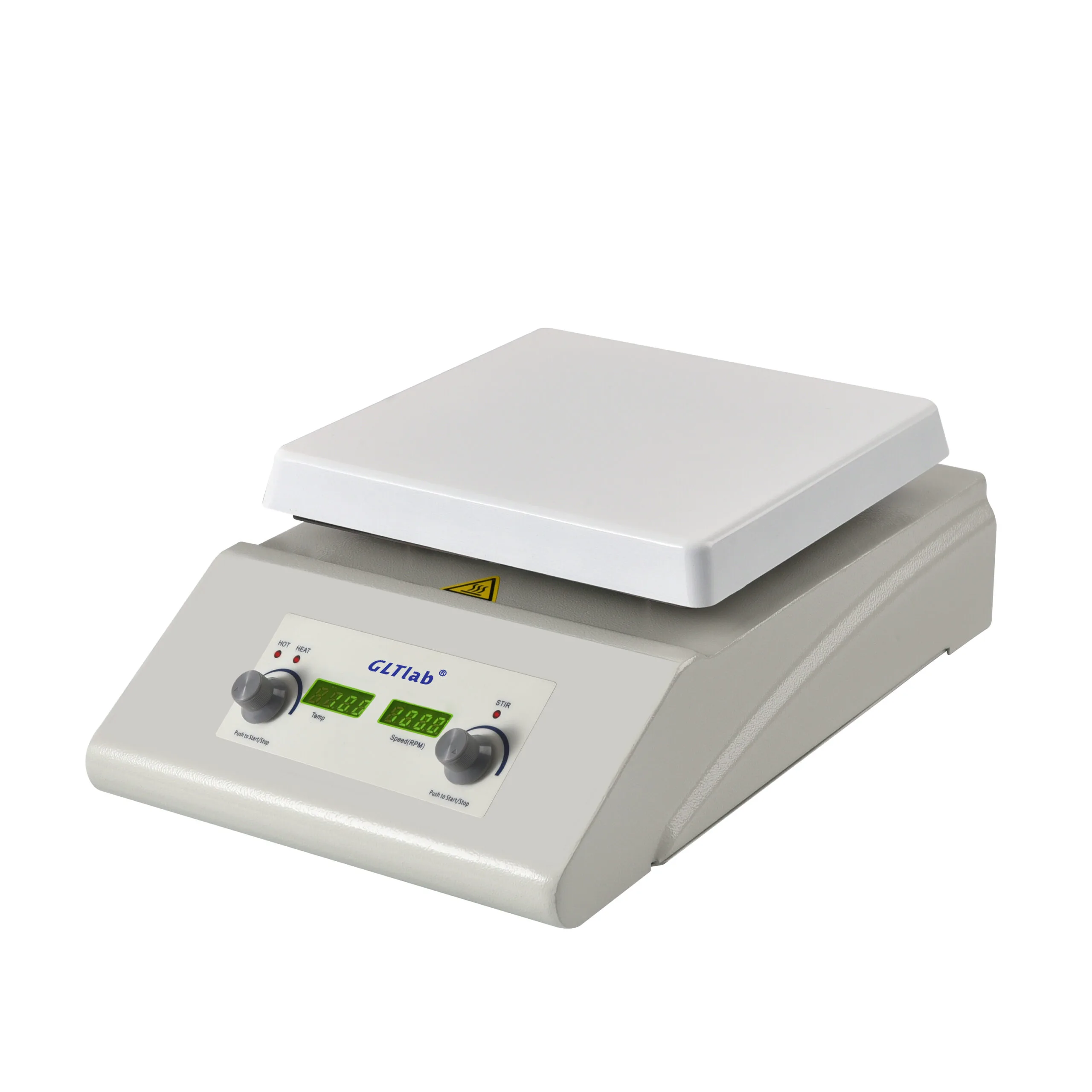

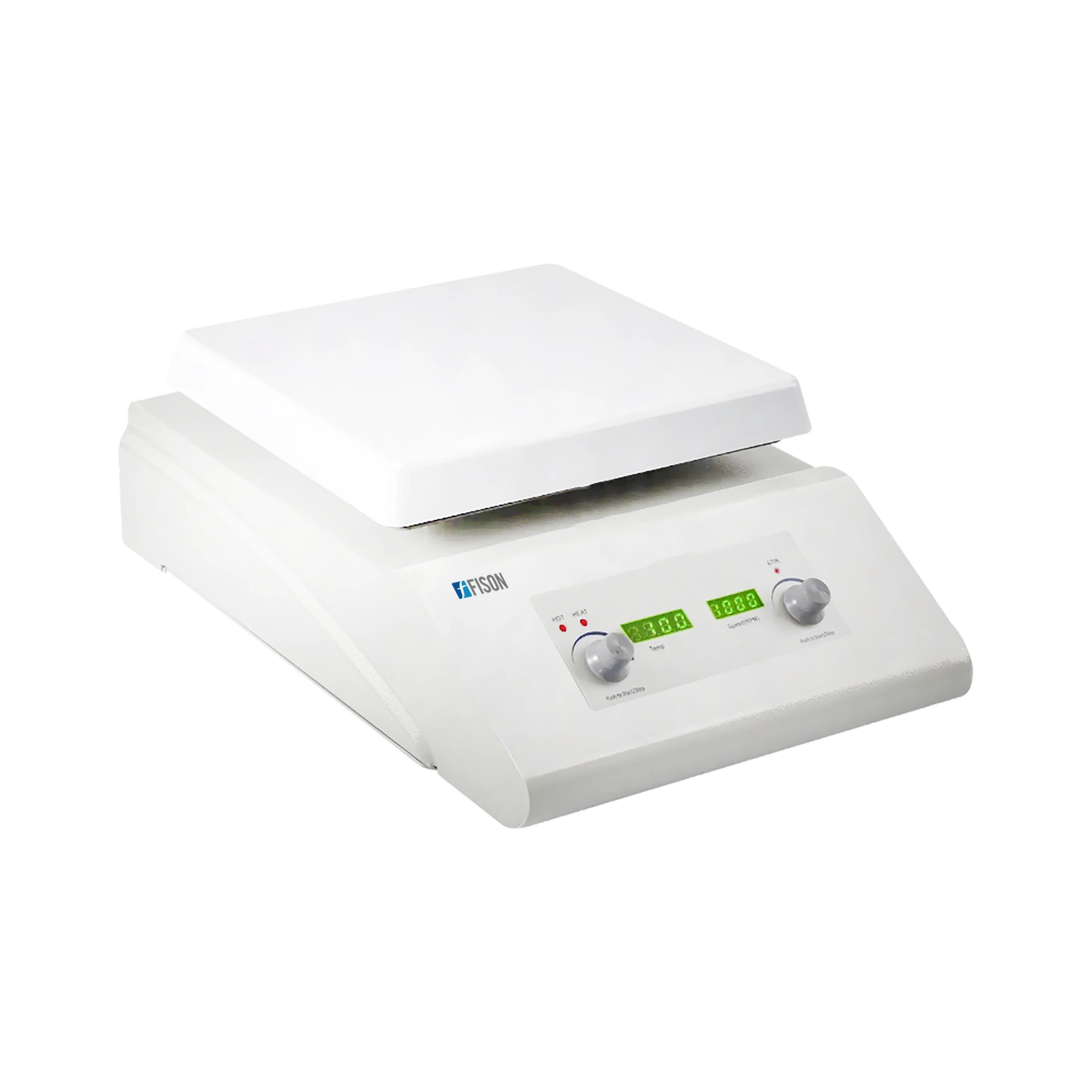

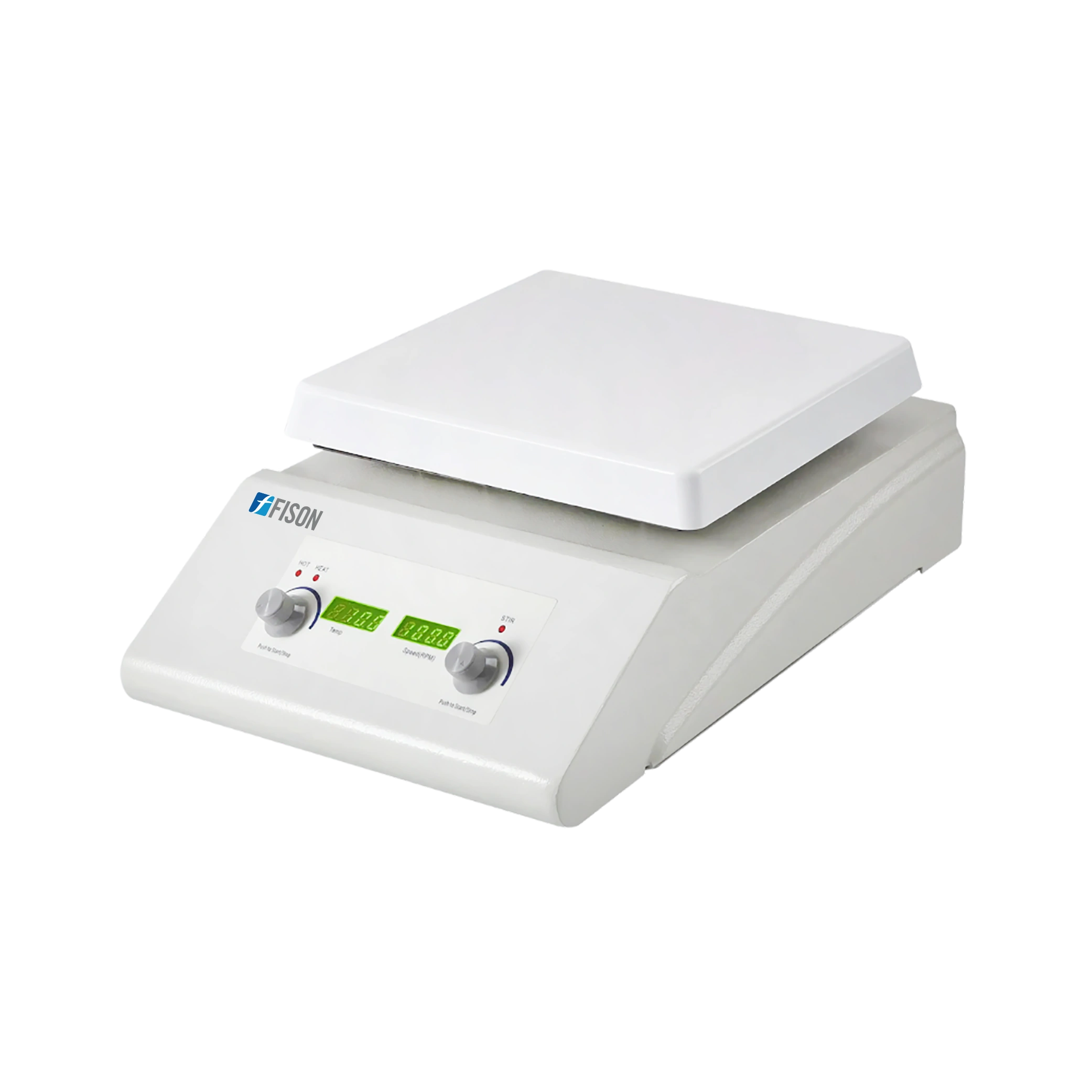

Hotplate Magnetic Stirrer FM-HMS-A104
Hotplate Magnetic Stirrer FM-HMS-A104 delivers a wide speed range of 150 to 1500 rpm, ensuring consistent stirring for samples with different viscosities and mixing needs. It supports a maximum stirring capacity of up to 10 L (H₂O), ensuring efficient and uniform mixing. It offers an adjustable heating range from 35°C to 400°C to accommodate diverse heating requirements with precise control. It features an LED display for clear and precise monitoring.
Specifications
| Temperature Range | 5 to 40°C |
| Humidity Range | ≤ 80% |
| Speed Range | 150 to 1500 rpm |
| Stir Bar Length Compatibility | 25 to 60 mm |
| Temperature Setting Range | 35 to 400°C |
| Heating Range (Plate) | 35 to 400°C |
| Heating Range (Solution) | 35.0 to 200.0°C |
| Plate Material | Ceramic Coated Aluminum |
| Plate Dimensions | 7 |
| Plate Heating Resolution | 1°C |
| Solution Heating Resolution | 0.1°C |
| Temperature Stability | ±1°C |
| Heat Control Accuracy | ±0.5°C (with PT 1000 at 50°C) |
| Calibration on External Probe | Yes |
| Hot Surface Warning | Yes |
| Number of Stirring Positions | 1 |
| Maximum Stirring Volume (H₂O) | 10 Liters |
| Overheat Warning (Error 1 & 2) | Yes |
| Voltage | 110 to 130 V / 200 to 240 V |
| Frequency | 50 / 60 Hz |
| Power Consumption | 900 W |
| Dimensions (W × D × H) | 190 × 290 × 100 mm |
| Weight | 3.5 kg |
Features
- PT1000 temperature sensor
- Overheat protection
- IP21 protection
- Ceramic-coated aluminium plate
- Compact and lightweight
- Durable construction
Applications
- Hotplate Magnetic Stirrer FM-HMS-A104 is widely used in chemistry laboratories to perform chemical experiments and synthesis by mixing two or more components.
Frequently Asked Question
1: What is the maximum stirring capacity of the FM-HMS-A104?
The hotplate magnetic stirrer FM-HMS-A104 supports a maximum stirring volume of up to 10 liters of water.
2: What is the temperature range, and how precise is the heating in the Hotplate Magnetic Stirrer FM-HMS-A104?
The Hotplate Magnetic Stirrer FM-HMS-A104 offers a heating range from 35°C to 400°C, with a precision of ±0.5°C using the PT1000 sensor and a stability of ±1°C for consistent performance.
3: What type of surface does the hotplate have in the FM-HMS-A104?
The Hotplate Magnetic Stirrer FM-HMS-A104 features a ceramic-coated aluminum plate, ensuring uniform heat distribution, chemical resistance, and easy cleaning.
4: Can the Hotplate Magnetic Stirrer FM-HMS-A104 be calibrated with an external probe?
Yes, the FM-HMS-A104 supports external temperature calibration using a PT1000 temperature sensor, providing accurate in-solution heating control.
5: What is the stirring speed range for the FM-HMS-A104, and how is it controlled?
The Hotplate Magnetic Stirrer FM-HMS-A104 offers a speed range of 150 to 1500 rpm, which can be adjusted and monitored easily via its digital LED display.
