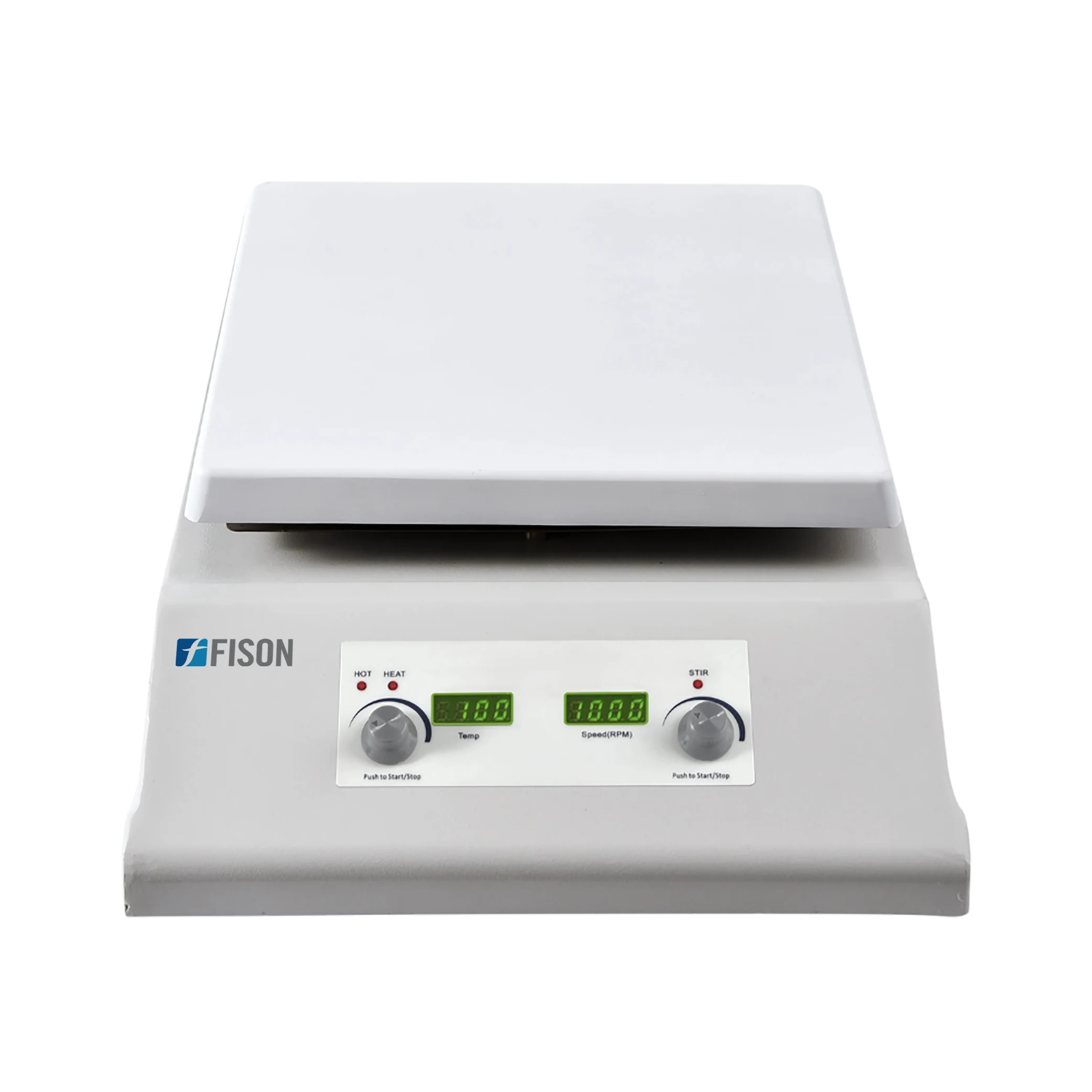

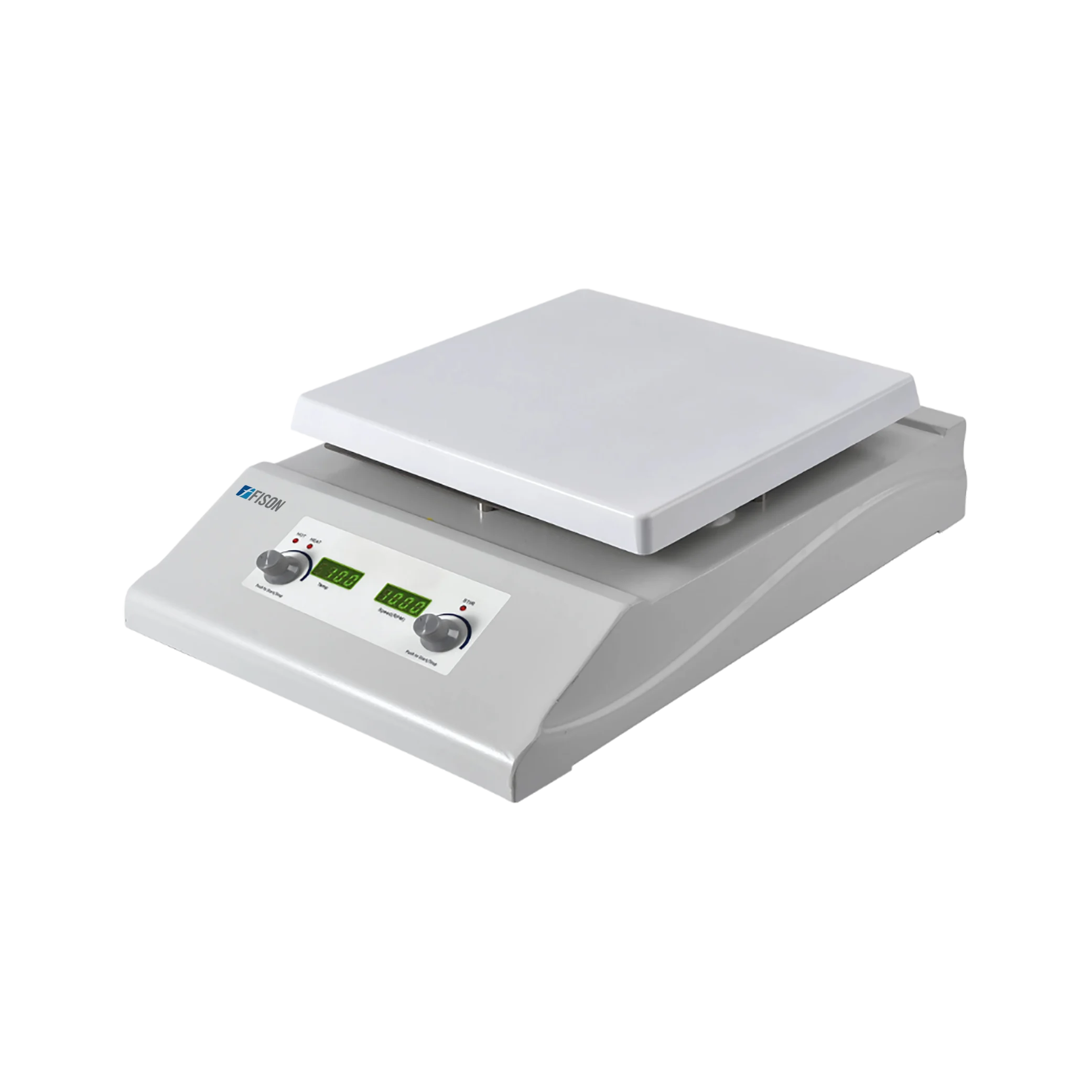

Hotplate Magnetic Stirrer FM-HMS-A105
Hotplate Magnetic Stirrer FM-HMS-A105 functions within a temperature range of 5 to 40°C and supports humidity levels up to 80% RH, ensuring efficient performance. It can stir volumes up to 20 liters (H₂O), providing reliable and efficient mixing for larger sample sizes. It offers a speed range of 150 to 1500 rpm, allowing precise control for a variety of stirring applications. Our magnetic stirrer features a digital display for real-time monitoring and precise control during operation.
Specifications
| Speed Range | 150 to 1500 rpm |
| Temperature Range | 5 to 40°C |
| Humidity Range | ≤ 80% RH |
| Temperature Setting Range | 35 to 400°C |
| Heating Range (Plate) | 35 to 400°C |
| Heating Range (Solution) | 35.0 to 200.0°C |
| External Temperature Sensor | PT 1000 |
| Plate Material | Ceramic Coated Aluminium |
| Plate Dimensions | 10 |
| Plate Heating Resolution | 1°C |
| Solution Heating Resolution | 0.1°C |
| Hot Surface Warning | Yes |
| Temperature Stability | ±1°C |
| Heat Control Accuracy (PT 1000 at 50°C) | ±0.5°C |
| Calibration on External Probe | Yes |
| Number of Stirring Positions | 1 |
| Maximum Stirring Volume (H₂O) | 20 L |
| Stir Bar Compatibility | 30 to 80 mm |
| Overheat Warning (Error 1 & 2) | Yes |
| Power Consumption | 1600 W |
| Power Supply | 110 to 130 V / 200 to 240 V |
| Frequency | 50 / 60 Hz |
| Dimensions (L×B × H) | 290 × 423 × 110 mm |
| Weight | 7.0 kg |
Features
- Robust construction
- IP21 protection rating
- PT1000 temperature sensor
- Overheat protection
- Aluminium plate coated with ceramic
- Portable and easy to handle
Applications
- Hotplate Magnetic Stirrer FM-HMS-A105 is widely used in chemistry laboratories to perform chemical experiments and synthesis by mixing two or more components.
Frequently Asked Question
1: Is the Hotplate Magnetic Stirrer FM-HMS-A105 suitable for handling high-volume chemical mixing applications?
Yes, the Hotplate Magnetic Stirrer FM-HMS-A105 is designed to stir up to 20 liters of liquid, making it ideal for high-volume chemical reactions in laboratory settings.
2: Does the Hotplate Magnetic Stirrer FM-HMS-A105 support external probe calibration?
Yes, the Hotplate Magnetic Stirrer FM-HMS-A105 allows external probe calibration for enhanced accuracy and temperature control.
3: What kind of stir bars are compatible with the Hotplate Magnetic Stirrer FM-HMS-A105?
The Hotplate Magnetic Stirrer FM-HMS-A105 supports stir bars ranging from 30 to 80 mm, suitable for various mixing needs.
4: What is the protection rating of the Hotplate Magnetic Stirrer FM-HMS-A105?
The Hotplate Magnetic Stirrer FM-HMS-A105 has an IP21 protection rating, offering basic resistance against dust and liquid spills.
5: How does the Hotplate Magnetic Stirrer FM-HMS-A105 protect experiments from equipment failure?
The Hotplate Magnetic Stirrer FM-HMS-A105 features overheat protection and error alerts to prevent system malfunctions during operation.
6: Can the Hotplate Magnetic Stirrer FM-HMS-A105 mix viscous or thick solutions effectively?
Yes, the Hotplate Magnetic Stirrer FM-HMS-A105 is equipped with a powerful motor that efficiently handles both thin and viscous solutions.
