$62,437.00

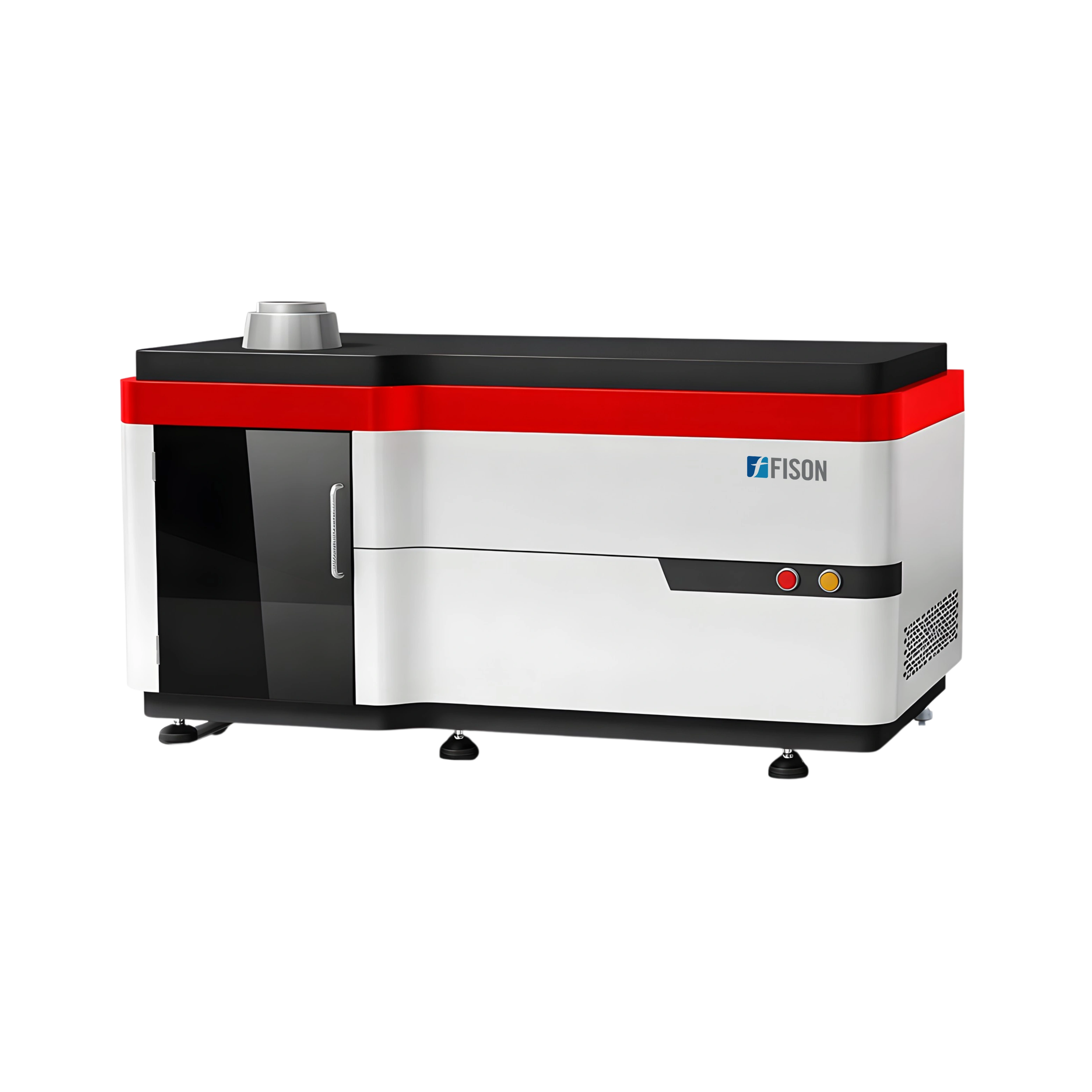

ICP Spectrometer FM-ICP-A200 - Specifications

Wavelength Range	160 to 1000 nm
Grating	Middle step grating, 52.67 lp/mm, 64° sparkle angle
Numerical Aperture	F less than 8, ultra-high luminous flux
Target Size	27.6 mm x 27.6 mm, 1024 x 1024 addressing detection units
Resolution	less than 0.0065 nm at 200 nm
Astigmatism	Equivalent background concentration of 10000 ppm Ca solution at As 189.042 nm less than 2 ppm
Light Chamber	Precision constant temperature, 35 ± 0.1°C, nitrogen purging (normal: 1.8 L/min, fast: 3.8 L/min)
Plasma Argon Flowmeter	100 to 1000 L/h (1.6 to 16 L/min)
Auxiliary Argon Flowmeter	100 to 1000 L/h (0.16 to 1.6 L/min)
Auxiliary Carrier Argon Flowmeter	100 to 1000 L/h (0.16 to 1.6 L/min)
Pressure Maintaining Value	0 to 0.4 MPa
Cooling Water Temperature	20 to 25°C
Cooling Water Flow Rate	greater than 5 L/min
Cooling Water Hydraulic Pressure	greater than 0.1 MPa
Output Working Coil Inner Diameter	25 mm
Torque Tube	Three concentric, external diameter 20 mm
Coaxial Nebulizer	Outer diameter 6 mm
Double Barrel Atomizing Chamber	Outer diameter 34 mm
Circuit Type	Solid-state RF Power supply, with auto match function
Frequency	27.12 MHz ± 0.05%
Frequency Stability	less than 0.1%
Power Output Stability	less than 0.3%
Escaped RF Radiation	30 cm away from instrument, Electric Field: E less than 2 V/m
Power Consumption	800 to 1500 W
Power Supply	220V, 30A
Dimension (L × B × H)	1050 × 793 × 745 mm
Packaging Dimension (L × B × H)	1250 × 950 × 900 mm
Net weight	105 Kg
Gross weight	120 Kg

ICP Spectrometer FM-ICP-A200 - Features

1. Dual-stage atomizing
2. Nitrogen-purged optics
3. Precision grating system
4. High-flux illumination

ICP Spectrometer FM-ICP-A200 - Applications

• ICP Spectrometer FM-ICP-A200 is used for high-precision elemental analysis in laboratories requiring multi-element detection across environmental samples, metallurgical materials, geological specimens, petrochemical substances, pharmaceutical raw materials, and industrial quality-control workflows.

ICP Spectrometer FM-ICP-A200 - Accessories

• Cable	1 line
  Plastic drum	1 pc
  Argon Gas Reduction	2 pcs
  PU tube 30 m	1 pc
  PU tube 10 m	1 pc
  PVC transparent tube	1 meter
  Plug	1 pc
  Ground copper braided wire	15 lines
  Brass tube	1 pc
  Filter element of filter tank	4 pcs
  Capillary tube	0.5 meter
  Torch pipe	2 pcs
  Double cylinder fog chamber	2 pcs
  Atomizer	1 pc
  Pump head hose of Peristaltic Pump (Ф1.65 L45cm)	3 lines
  Electronic Fuses(10A,250V,6×30mm)	2 lines
  Electronic Fuses (6.3A,250V,5×20mm)	2 lines
  Cylindric atomizer	2 pcs
  Silicone tube (Inner 2mm, outer 4mm, hardness:55HRC)	0.3 lines
  Hose adapter (ZCJH-2*6 INNER 6-2)	4 pcs
  Hose adapter (ZC-1/16*3/32 INNER 1.6-2.4)	4 pcs
  Spherical connector clamp	1 pc
  O shape seal ring (32.5×3.55)	2 pcs
  O shape seal ring (5.6×1.8)	4 pcs
  Quick Connector(Φ6)	2 pcs
  Raw material belt (26mm×20m, thin:0.1~0.2mm)	1 roll
  Ribbon	30 lines
  Toolkit	1 set
  Computer (Lenovo)	1 set
  Displayer (Lenovo)	1 set
  Canon Printer (Laser printer)	1 set
  Cooling water tank	1 set

ICP Spectrometer FM-ICP-A200 - Accessories Optional

• Automatic Sampler
