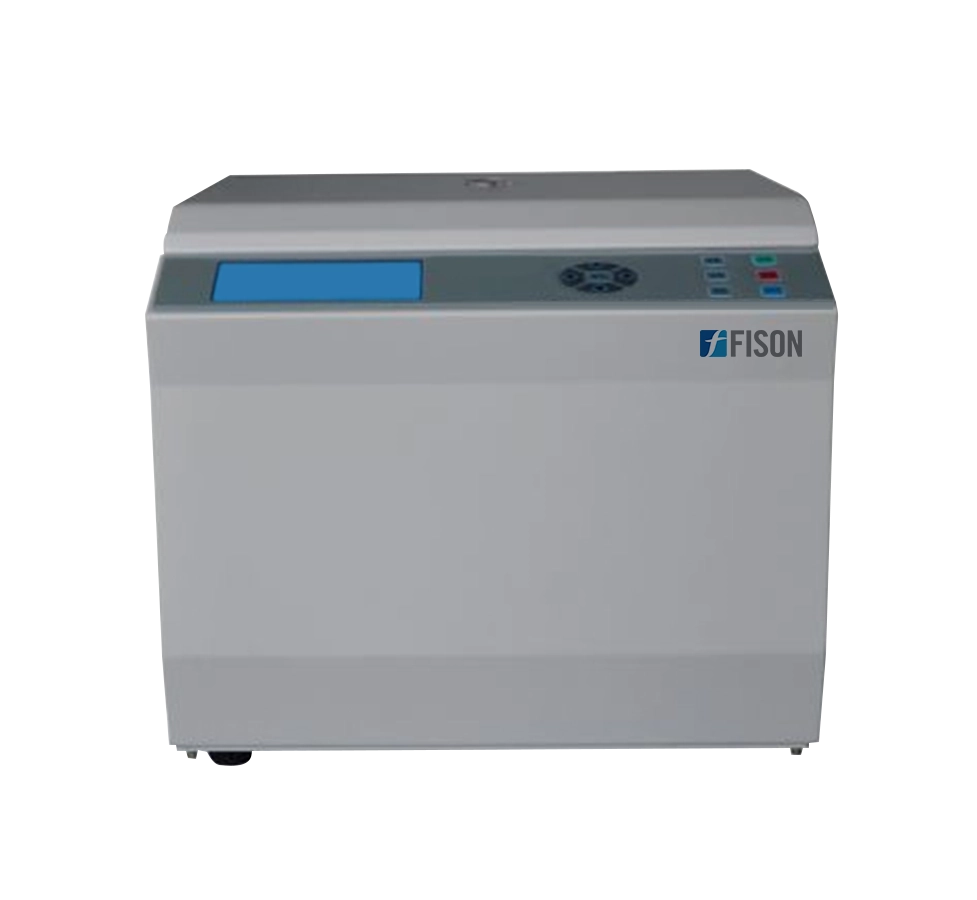

Low Speed Centrifuge FM-LSC-A102
Low speed centrifuge FM-LSC-A102 is a compact and robust centrifuge with 6000 rpm maximum speed and 5000 ×g maximum centrifugal force, ideal for routine low-speed centrifugation. Features swing rotor with maximum capacity of 4 × 450 ml. Work station unit is driven by AC frequency conversion motor and offers 9 acceleration and deceleration rate selection mode. Door design of double lock rod of magnetic locks and electric lock safeguards reliable operation.
Specifications
| Maximum speed | 6000 rpm |
| Maximum RCF | 5000 × g |
| Rotor capacity | 450 ml × 4 |
| Temperature increment | ≤ 10℃ (running 20 minutes) |
| Speed accuracy | ± 20 rpm |
| Noise level | ≤ 55 dB |
| Centrifugation time | 1s to 99 min continuous /timed centrifugation |
| Power supply | AC 220 V/50 Hz, 12 A |
| Weight | 65 kg |
| Dimension (L×W×H) | 433 × 580 × 402 mm |
Features
- Compact and robust benchtop design with LCD display microprocessor controlled unit
- Spin time 6000 rpm with 5000 ×g RCF
- Supplied with swing rotor including 4 of aluminum sleeves for 450 ml tubes
- Driven by AC frequency conversion motor
- Compasses 9 different rate selection modes and 10 different operation modes for programming
- Large assortment of rotors, buckets and adaptors for micro tubes and all sizes of tubes
- Two optional work setting type: run start and interval run time settings can be switched
- Double lock rod design of door with magnetic and electric locks
- Parameters altering function without downtime
- Furnished with unique air flow design and anti-vibration structure to minimize heat and noise generation
- Automatic lid release and vivid end alarm for easy retrieval of sample
Applications
- Ideal for general laboratory applications, including biological sample separations of cellular materials. Also, used for clinical applications of PRF, PRP and lipid cell and stem cell isolation. Applied for gentle, soft spin-down or washing of primary cells & cell line.
Accessories
Adapter no Volume No of tubes Adapter 1 50 ml 12 Adapter 2 15 ml 28 (round bottom) Adapter 3 5 ml 68 (vacuum blood tube)
Optional Rotor Selection
Rotor name Rotor capacity Max speed RCF Swing bucket rotor 4 × 450 ml 4200 rpm 3352 × g ELISA Plate rotor 1 4000 1842 96 holes ×2 ELISA Plate rotor 2 4000 2173 96 holes ×4
Optional Adapter Selection
Swing bucket rotor
Adapter no Volume No of tubes Adapter 4 100 ml 8 (bottom tip with cover) Adapter 5 15 ml 16 (oval bottom) Adapter 6 10 ml 56 Adapter 7 5 ml 96
