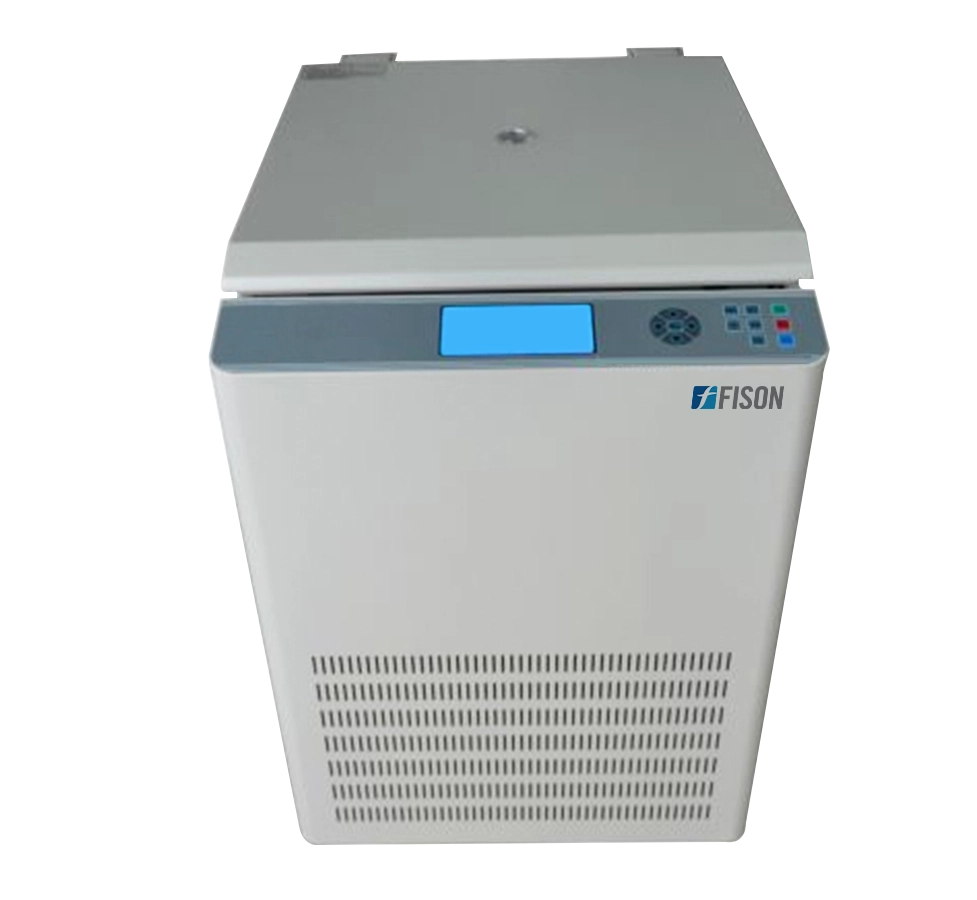

Low Speed Centrifuge FM-LSC-A402
Low Speed Centrifuge FM-LSC-A402 is a vertical floor of unit designed for operation with vacuum blood tubes 148 × 4 ml. It is driven by AC frequency conversion motor for high speed governing system. It has microprocessor controlled technology with digital display to set parameters for centrifuging time, rotation speed and centrifugal force. It is indispensable equipment used in blood transfusion departments and blood banks.
Specifications
| Maximum speed | 4000 rpm |
| Maximum Rcf | 3184 xg |
| Rotor capacity | 4 ml x 148 vacuum blood tube |
| Rotor type | Swing bucket rotor |
| Rotor material | Swing bucket rotor |
| Body construction | Stainless steel centrifugal chamber |
| Temperature increment | ≤ 10℃ (running 20 minutes) |
| Speed accuracy | ± 10 rpm |
| Noise level | ≤ 55 dB |
| Centrifugation time | 1s to 99 min continuous /timed centrifugation |
| Power supply | AC 220 V/50 Hz, 10 A |
| Weight | 86 kg |
| Dimensions (L×W×H) | 580 × 740 × 890 mm |
Features
- Microcomputer control with digital display and driven by AC frequency conversion motor
- Spin speed: 4000 rpm with 3184 ×g Rcf
- Equipped with swing rotor including 124 of aluminum sleeves for 4 ml vacuum blood tubes
- Offers 9 programs for acceleration / deceleration rate selection and 12 programs for self-defined work modes
- Synchronous display of rotation speed and centrifugal force
- Two optional work setting type: run start and interval run time settings can be switched
- Parameters modifying function in middle of run without stopping machine
- All-steel construction with stainless steel centrifugal chamber, electric safety door lock and imbalance protection
- Automatic balancing with the need of trimming
- Inching function with brief centrifuging
Applications
- Ideal for general laboratory applications, including biological sample separations of cellular materials. Also, used for clinical applications of PRF, PRP and lipid cell and stem cell isolation. Applied for gentle, soft spin-down or washing of primary cells & cell line.
