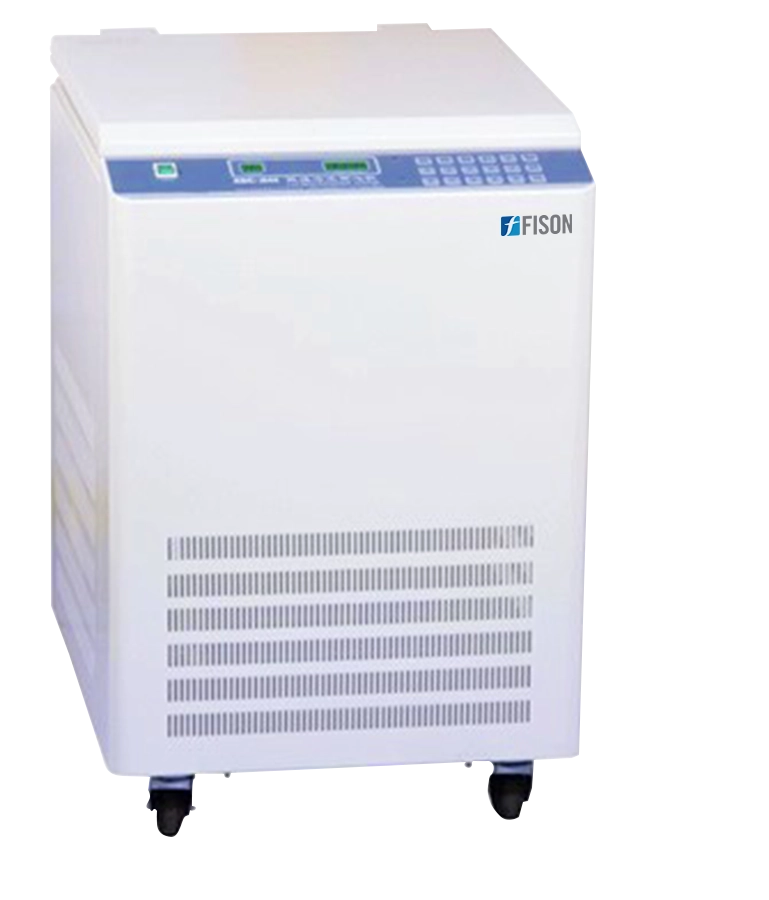

Low Speed Refrigerated Centrifuge FM-LRC-A104
Low Speed Refrigerated Centrifuge FM-LRC-A104 is a vertical floor type centrifuge with 4000 rpm maximum specimen spinning speed and 3309 ×g centrifugal force. Features swing rotor with maximum capacity of 4 × 750 ml and LCD digital display to set centrifugal time, rotational speed and centrifugal power. Integrated refrigeration system with temperature range of -20 to +40℃ make it ideal for wide range of low speed separations.
Specifications
| Maximum speed | 4000 rpm |
| Maximum RCF | 3309 ×g |
| Swing rotor capacity | 4 × 750 ml |
| Speed accuracy | ± 10 rpm |
| Temperature range | -20 to +40℃ |
| Temperature accuracy | ± 2℃ |
| Noise | ≤ 56 dB |
| Timer range | 1min to 99 min continuous |
| Power supply | AC 220V 50Hz |
| Power | 2.0 kVA |
| Weight | 130 kg |
| Dimension (L×W×H) | 580 × 730 × 855 mm |
Features
- Micro-computer control system with electronic lock design
- AC variable-conversion motor to deliver high torque
- Low temperature ranges of -20 to +40℃
- Maximum spin speed 4000 rpm with 3309 ×g RCF
- Equipped with refrigeration compressor for refrigerant and maintaining equilibrium temperature
- Compasses 9 different rate selection modes and 10 different operation modes for programming
- Operation data stored automatically
- LCD display and touching panel makes operation easy
- Real-time conversation of Speed and RCF is convenient for operation
- Self-locking device, over-speed safety device, over-temperature safety device, imbalance safety device and automatic alarm device
Applications
- It is the ideal instrument for mass blood centrifugation, protein precipitation and cell separation. The machine is widely used in blood bank, pharmaceutical factory, biochemistry, biological product, other research and manufacturing institutions.
Optional Rotor Selection
Name Capacity Maximum speed RCF Swing bucket rotor 4 × 750 ml （square Hanging cup） 4200 rpm 3684 × g Enzymatic bacteria reaction plate Rotor 96 holes × 4 4000 rpm 2403 × g
Optional Adapter Selection
Swing bucket rotor Adapter no Volume No of tubes Adapter 1 50 ml 24 Adapter 2 15 ml 52 （Bottom tip with cover） Adapter 3 4 ml 116 × vacuum blood tubes Adapter 4 100 ml 8 Adapter 5 116 holes Cap remover
