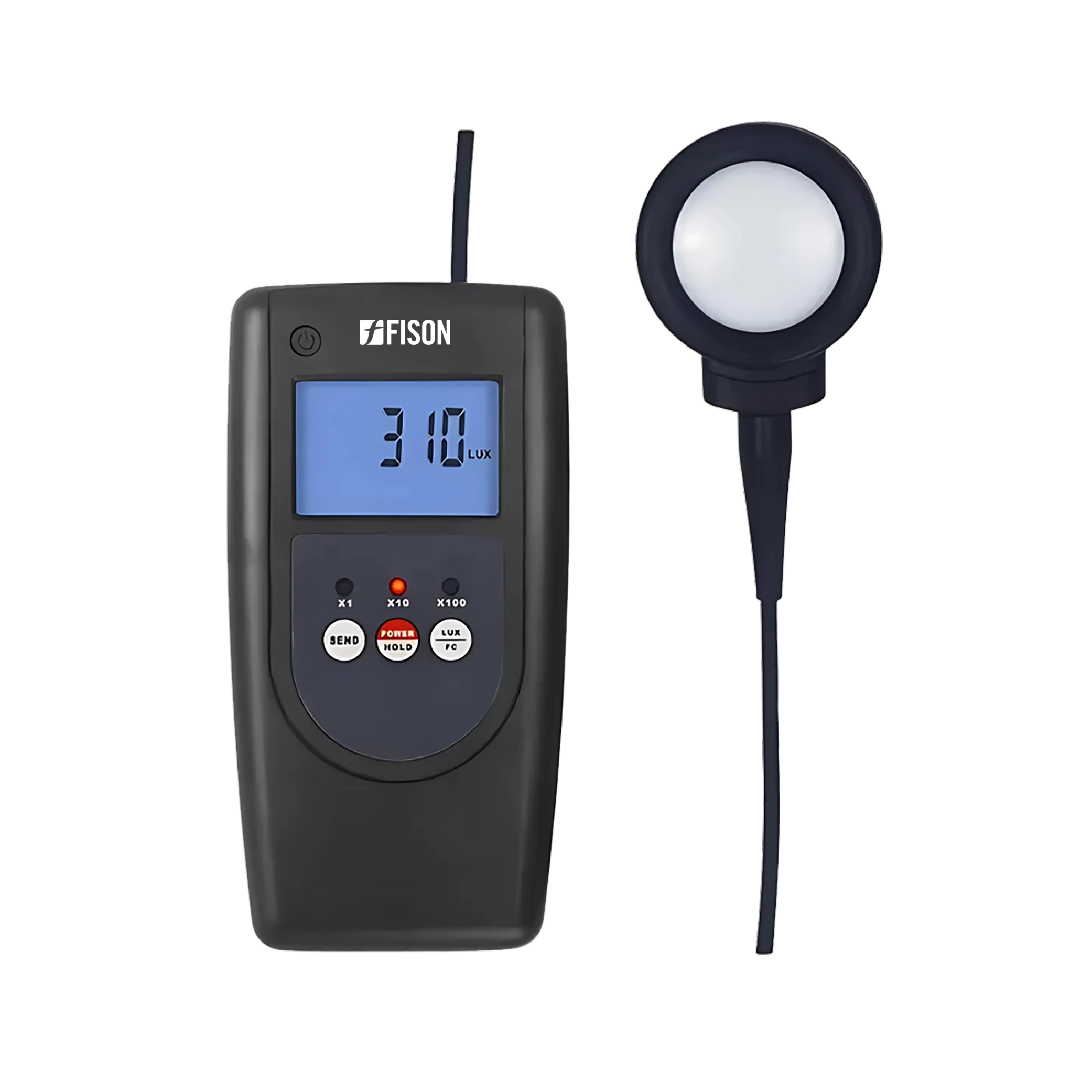

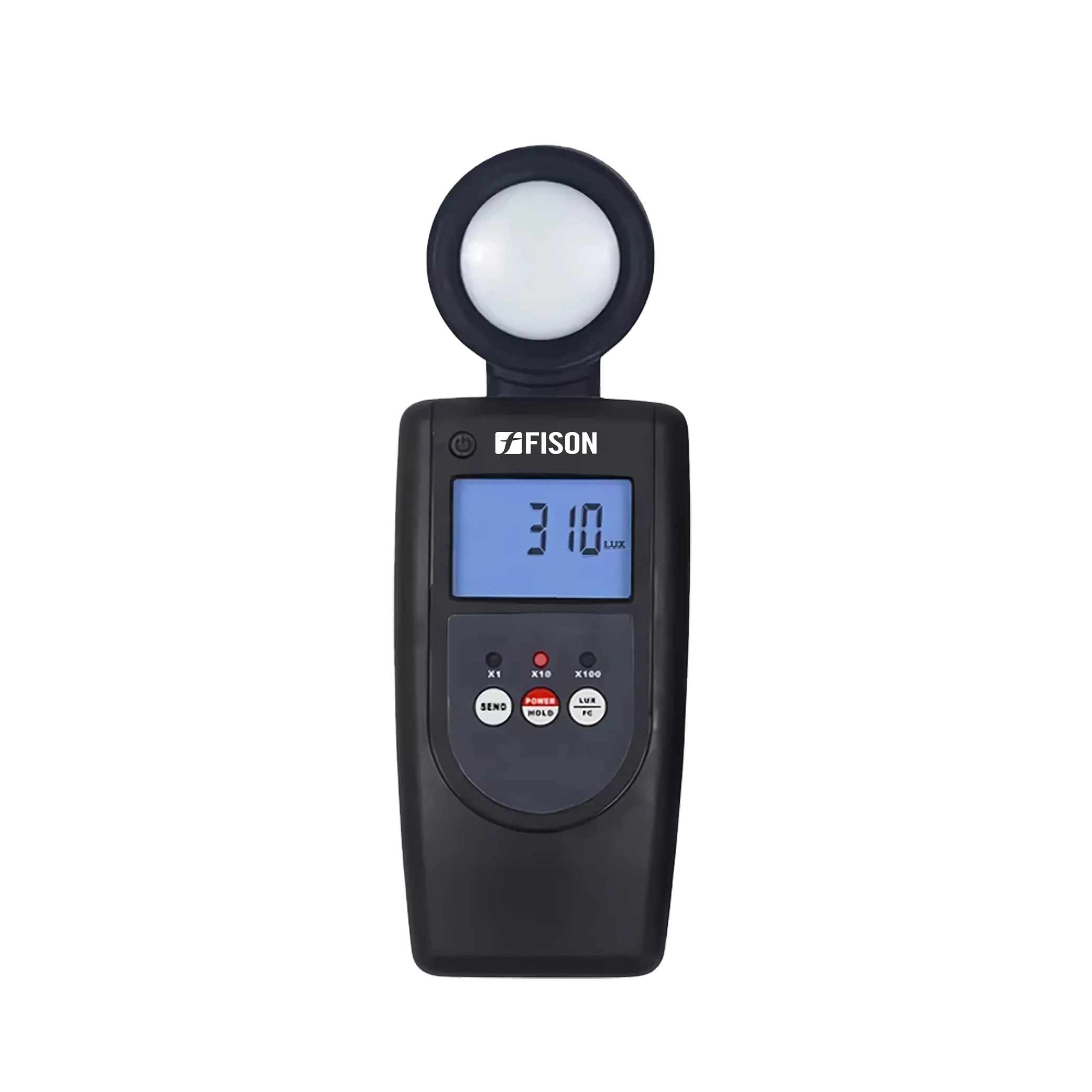

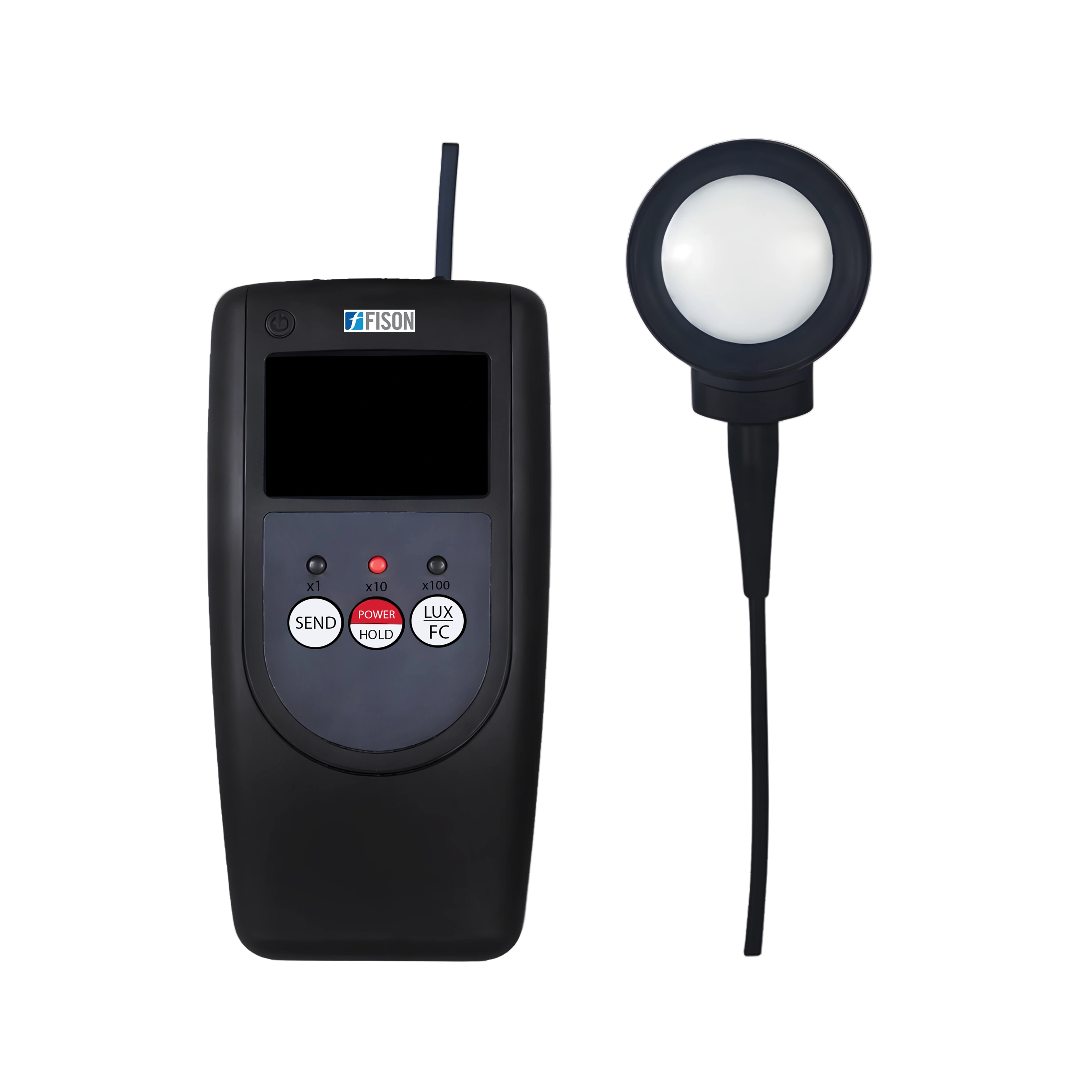

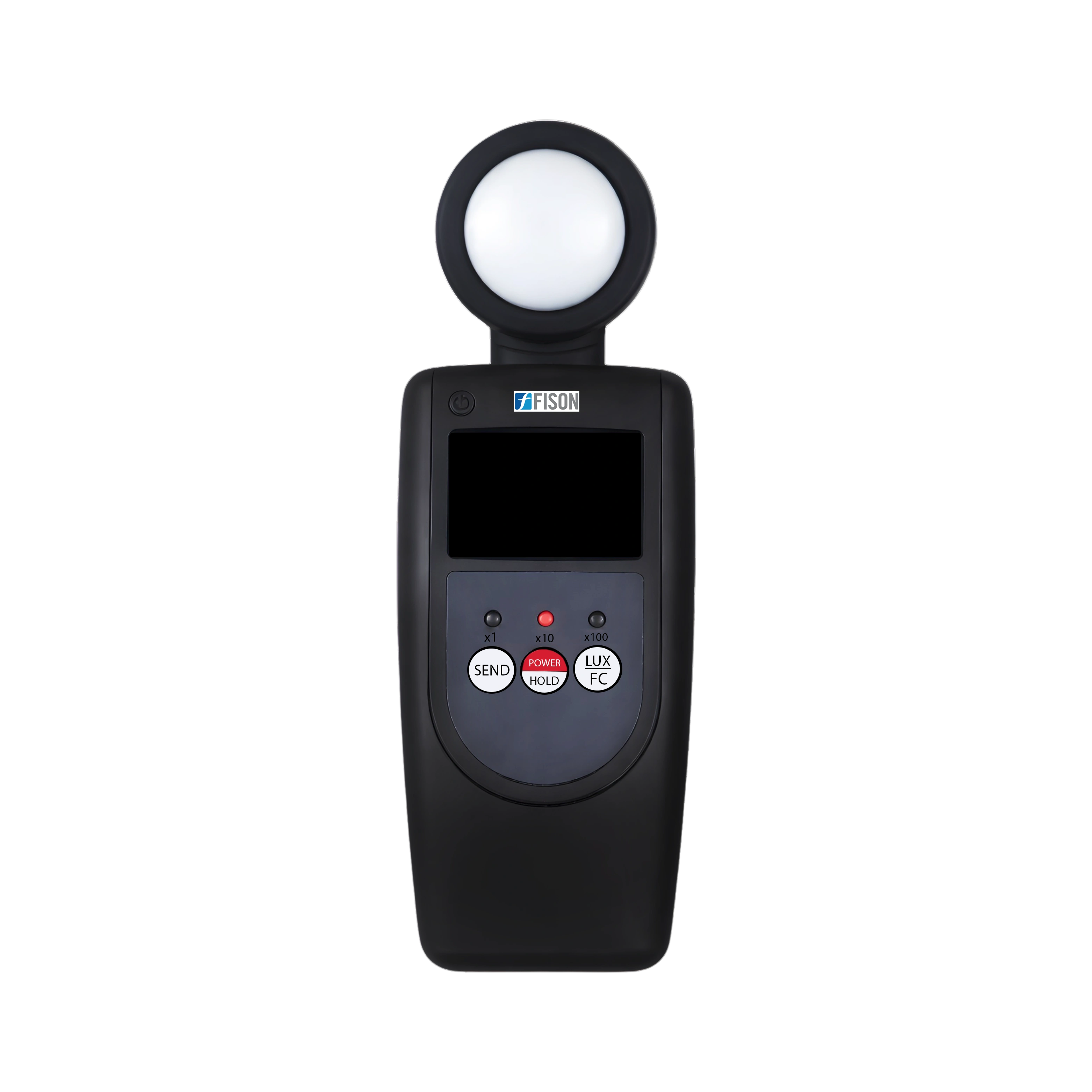

Fison Lux Meter FM-LXM-A101 measures light levels in both lux and foot candle units, up to 200000 lux or 20000 foot candles. As a light intensity measuring instrument, it offers three measuring grades that start with a finest resolution of 0.1 lux and extend to very bright light in the third grade. The operating temperature range is 0 to 50 °C. A single reading can be taken in either unit, with the grade matched to the light level being measured.
$510.00
| Display | LCD Display | ||||
| X1 Grade range 1 | 0 to 199 lux | ||||
| X1 Grade resolution 1 | 0.1 lux | ||||
| X1 Grade range 2 | 200 to 1999 lux | ||||
| X1 Grade resolution 2 | 1 lux | ||||
| X10 Grade range | 2000 to 19999 lux | ||||
| X10 Grade resolution | 10 lux | ||||
| X100 Grade range | 20000 to 200000 lux | ||||
| X100 Grade resolution | 100 Lux | ||||
| Foot candle range | 0 to 20000 FC | ||||
| Foot candle resolution | 1 FC | ||||
| Accuracy | ± (5%n + 5d) | ||||
| Operating temperature | 0 to 50°C (32 to 122°F) | ||||
| Humidity | < 80% RH | ||||
| Dimension |
|
||||
| Weight (Including battery) | 200 g |
Lux Meter FM-LXM-A101 is used in laboratories, industrial facilities, offices, and educational institutions to measure light intensity and assess illumination levels for lighting evaluation and environmental monitoring.
| Accessories no. | Accessories name | Unit |
| 1 | Carrying case | 1 |
| Accessories no. | Accessories name | Unit |
| 1 | RS-232C data with software | 1 |
| 2 | Bluetooth data adapter with software | 1 |
Fison Lux Meter performs photometric measurement of illuminance from 0 to 19999 lux, with resolution from 0.1 lux to 1 lux. The X1 grade covers the low illuminance spans at fine resolution, while the X10 grade extends the measuring span to its upper limit, so the grade is matched to the illuminance level being measured. Low-light readings resolve to 0.1 lux and higher readings resolve to 1 lux. As a light intensity measuring instrument, it gives a direct illuminance reading at the measurement point, so light levels can be verified quickly.
